NBO 3.0 Program Manual

NBO 3.0 Program Manual

(Natural Bond Orbital / Natural Population Analysis / Natural Localized Molecular Orbital Programs)

E. D. Glendening, A. E. Reed,* J. E. Carpenter,** and F. Weinhold

Theoretical Chemistry Institute and Department of Chemistry, University of Wisconsin, Madison, Wisconsin 53706

* Present address: Bayer AG, Abteilung AV-IM-AM, 5090 Leverkusen, Bayerwerk, Federal Republic of Germany.

** Present address: Department of Chemistry, University of California-Irvine, Irvine, California 92717.

Table of Contents

Table of Contentsi
Preface: HOW TO USE THIS MANUALiii

A.

GENERAL INTRODUCTION AND INSTALLATION

A.1INTRODUCTION TO THE NBO PROGRAMA-1
A.1.1What does the NBO Program Do?A-1
A.1.2Structure of the NBO ProgramA-3
A.1.3Input and OutputA-5
A.1.4General Capabilities and RestrictionsA-6
A.1.5References and Relationship to Previous VersionsA-7
A.2INSTALLING THE NBO PROGRAMA-10
A.3TUTORIAL EXAMPLE FOR METHYLAMINEA-12
A.3.1Running the ExampleA-12
A.3.2Natural Population AnalysisA-13
A.3.3Natural Bond Orbital AnalysisA-16
A.3.4NHO Directional AnalysisA-20
A.3.5Perturbation Theory Energy AnalysisA-21
A.3.6NBO SummaryA-22

B.

NBO USER'S GUIDE

B.1INTRODUCTION TO THE NBO USER'S GUIDE AND NBO KEYLISTSB-1
B.2THE $NBO KEYLISTB-2
B.2.1Overview of $NBO KeywordsB-2
B.2.2Job Control KeywordsB-3
B.2.3Job Threshold KeywordsB-4
B.2.4Matrix Output KeywordsB-6
B.2.5Other Output Control KeywordsB-9
B.2.6Print Level KeywordsB-10
B.2.7Semi-Documented Additional KeywordsB-11
B.3THE $CORE LISTB-12
B.4THE $CHOOSE KEYLIST (DIRECTED NBO SEARCH)B-14
B.5THE $DEL KEYLIST (NBO ENERGETIC ANALYSIS)B-16
B.5.1Introduction to NBO Energetic AnalysisB-16
B.5.2The Nine Deletion TypesB-17
B.5.3Input for UHF AnalysisB-20
B.6NBO KEYLIST ILLUSTRATIONSB-21
B.6.1IntroductionB-21
B.6.2NLMO KeywordB-22
B.6.3DIPOLE KeywordB-24
B.6.4Matrix Output KeywordsB-26
B.6.5BNDIDX KeywordB-29
B.6.6RESONANCE Keyword: BenzeneB-32
B.6.7NOBOND Keyword: Hydrogen FluorideB-37
B.6.83CBOND Keyword: DiboraneB-40
B.6.9NBO Directed Search ($CHOOSE Keylist)B-44
B.6.10NBO Energetic Analysis ($DEL Keylist)B-48
B.6.11Open-Shell UHF Output: Methyl RadicalB-52
B.6.12Effective Core Potential: Cu2 DimerB-56
B.7FILE47: INPUT FOR THE GENNBO STAND-ALONE NBO PROGRAMB-62
B.7.1IntroductionB-62
B.7.2Format of the FILE47 Input FileB-63
B.7.3$GENNBO KeylistB-65
B.7.4$COORD KeylistB-66
B.7.5$BASIS DatalistB-67
B.7.6$CONTRACT DatalistB-69
B.7.7Matrix DatalistsB-71

C.

NBO PROGRAMMER'S GUIDE

C.1INTRODUCTIONC-1
C.2OVERVIEW OF NBO.SRC SOURCE PROGRAM GROUPSC-2
C.3LABELLED COMMON BLOCKSC-4
C.4DIRECT ACCESS FILE AND OTHER I/OC-14
C.5NAO/NBO/NLMO ROUTINES (GROUP I)C-16
C.5.1SR NBO Master RoutineC-16
C.5.2Job Initialization RoutinesC-18
C.5.3NAO Formation RoutinesC-19
C.5.4NBO/NLMO Formation RoutinesC-22
C.6ENERGY ANALYSIS ROUTINES (GROUP II)C-26
C.7DIRECT ACCESS FILE (DAF) ROUTINES (GROUP III)C-27
C.8FREE FORMAT INPUT ROUTINES (GROUP IV)C-29
C.9OTHER SYSTEM INDEPENDENT I/O ROUTINES (GROUP V)C-30
C.10GENERAL UTILITY ROUTINES (GROUP VI)C-33
C.11SYSTEM-DEPENDENT DRIVER ROUTINES (GROUP VII)C-36
C.12GENNBO AUXILLIARY ROUTINESC-37
C.13ATTACHING NBO TO A NEW ESS PROGRAMC-38
APPENDIX: Specific ESS Versions
INDEX

PREFACE: HOW TO USE THIS MANUAL

The NBO manual is divided into three major sections:

Section A ("General Introduction and Installation") contains general introductory and 'one-time' information for the novice user: what the program does, program structure and relationship to driver electronic structure package, initial installation, 'quick start' sample input data, and a brief tutorial on sample output.

Section B ("NBO User's Guide") is for the intermediate user who has an installed program and general familiarity with the standard (default) options of the NBO program. This section documents the list of keywords that can be used to alter the standard NBO job options, with examples of the resulting output. This section is mandatory for users who wish to use the program to its full potential, to 'turn off' or 'turn on' various NBO options for their specialized applications.

Section C ("NBO Programmer's Guide") is for accomplished programmers who are interested in program logic and the detailed layout of the source code. This section describes the relationship of the source code subprograms to the published algorithms for NAO, NBO, and NLMO determination, providing documentation at the level of individual common blocks, functions, and subroutines. This in turn serves as a bridge to the 'micro-documentation' included as comment statements within the source code. Section C also provides guidelines for constructing 'driver' routines to attach the NBO programs to new electronic structure packages.

Section A: GENERAL INTRODUCTION AND INSTALLATION

A.1 INTRODUCTION TO THE NBO PROGRAM

A.1.1 What Does the NBO Program Do?

The NBO program performs the analysis of a many-electron molecular wavefunction in terms of localized electron-pair 'bonding' units. The program carries out the determination of natural atomic orbitals (NAOs), natural hybrid orbitals (NHOs), natural bond orbitals (NBOs), and natural localized molecular orbitals (NLMOs), and uses these to perform natural population analysis (NPA), NBO energetic analysis, and other tasks pertaining to localized analysis of wavefunction properties. The NBO method makes use of only the first-order reduced density matrix of the wavefunction, and hence is applicable to wavefunctions of general mathematical form; in the open-shell case, the analysis is performed in terms of "different NBOs for different spins," based on distinct density matrices for and spin.* This section provides a brief introduction to NBO algorithms and nomenclature.

NBO analysis is based on a method for optimally transforming a given wavefunction into localized form, corresponding to the one-center ("lone pair") and two-center ("bond") elements of the chemist's Lewis structure picture. The NBOs are obtained as local block eigenfunctions of the one-electron density matrix, and are hence "natural" in the sense of Löwdin, having optimal convergence properties for describing the electron density. The set of high-occupancy NBOs, each taken doubly occupied, is said to represent the "natural Lewis structure" of the molecule. Delocalization effects appear as weak departures from this idealized localized picture.

The various natural localized sets can be considered to result from a sequence of transformations of the input atomic orbital basis set {i},** _______________

*Note, however, that some electronic structure packages do not make provision for calculating the spin density matrices for some types of open-shell wavefunctions (e.g., MCSCF wavefunctions calculated by the GUGA formalism in the GAMESS system), so that NBO analysis cannot be applied in these cases.

**If the wavefunction is not calculated in an atom-centered basis set, it would be necessary to first compute a wavefunction for each isolated atom of the molecule (in the actual basis set and geometry of the molecular calculation), then select the most highly occupied natural orbitals of each atomic wavefunction to compose a final set of linearly independent atom-centered basis functions of the required dimensionality. Since atom-centered basis functions are the nearly universal choice for molecular calculations, the current NBO program makes no provision for this step.

input basis NAOs NHOs NBOs NLMOs

Each natural localized set forms a complete orthonormal set of one-electron functions for expanding the delocalized molecular orbitals (MOs) or forming matrix representations of one-electron operators. The overlap of associated "pre-orthogonal" NAOs (PNAOs), lacking only the interatomic orthogonalization step of the NAO procedure, can be used to estimate the strength of orbital interactions in the usual way.

The optimal condensation of occupancy in the natural localized orbitals leads to partitioning into high- and low-occupancy orbital types (reduction in dimensionality of the orbitals having significant occupancy), as reflected in the orbital labelling. The small set of most highly-occupied NAOs, having a close correspondence with the effective minimal basis set of semi-empirical quantum chemistry, is referred to as the "natural minimal basis" (NMB) set. The NMB (core + valence) functions are distinguished from the weakly occupied "Rydberg" (extra-valence-shell) functions that complete the span of the NAO space, but typically make little contribution to molecular properties. Similarly in the NBO space, the highly occupied NBOs of the natural Lewis structure can be distinguished from the "non-Lewis" antibond and Rydberg orbitals that complete the span of the NBO space. Each pair of valence hybrids hA, hB in the NHO basis give rise to a bond (AB) and antibond (*AB) in the NBO basis,

AB = cAhA + cBhB

*AB = cBhA - cAhB

the former a Lewis (L) and the latter a non-Lewis (NL) orbital. The antibonds (valence shell non-Lewis orbitals) typically play the primary role in departures (delocalization) from the idealized Lewis structure.

The NBO program also makes extensive provision for energetic analysis of NBO interactions, based on the availability of a 1-electron effective energy operator (Fock matrix) for the system. Estimates of energy effects are based on second-order perturbation theory, or on the effect of deleting certain orbitals or matrix elements and recalculating the total energy. NBO energy analysis is dependent on the specific ESS to which the NBO program is attached, as described in the Appendix.

The program is provided in a core set of NBO routines that can be attached to an electronic structure system of the user's choice. In addition, specific 'driver' routines are provided that facilitate the attachment to popular ab initio and semi-empirical packages (GAUSSIAN-8X, GAMESS, HONDO, AMPAC, etc.). These versions are described in individual Appendices.

A.1.2 Structure of the NBO Program

The overall logical structure of the NBO program and its attachment to an electronic structure system (ESS) are illustrated in the block diagram, Fig. 1. This figure illustrates how the ESS and its scratch files (in the upper part of the diagram) communicate through the interface routines RUNNBO, FEAOIN, and DELSCF with the main NBO modules and associated direct access file (in the lower part).

The main NBO program is represented by modules labelled "NBO" and "NBOEAN." These refer to the construction of NBOs (including natural population analysis, construction of NAOs, NLMOs, etc.) and to NBO energy analysis, respectively. Each module consists of subroutines and functions that perform the required operations. These two modules communicate with the direct-access disk file NBODAF (LFN 48, labelled "FILE48" elsewhere in this manual) that is created and maintained by the NBO routines. Details of the NBO and NBOEAN modules, common blocks, and direct-access file are described in the Programmer's Guide, Section C.

The NBO program blocks communicate with the attached ESS through three system-dependent 'driver' subroutines (RUNNBO, FEAOIN, DELSCF). The purpose of these drivers is to load needed information about the wavefunction and various matrices into the FILE48 direct access file and NBO common blocks. Although the ESS is usually thought of as 'driving' the NBO program, from the point of view of the NBO program the ESS is merely a 'device' that provides initial input (e.g., a density matrix and label information) or other feedback (a calculated energy value) upon request. Each such ESS device therefore requires special drivers to make this feedback possible. Versions of the driver subroutines are included for several popular packages. The driver routines are described in more detail in the Programmer's Guide, Section C.

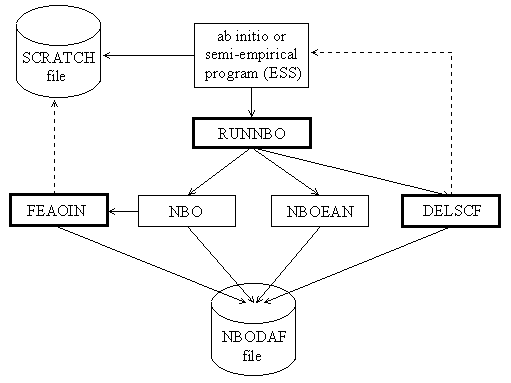

Figure 1: Schematic diagram depicting flow of information between the electronic structure system (ESS) and the NBO program, and the communication lines connecting these programs to the ESS scratch file (called the "dictionary file," "read-write file," etc., in various systems) and the NBO direct access file (NBODAF). Heavier box borders mark the ESS-specific driver routines (RUNNBO, FEAOIN, DELSCF) that directly interface the ESS program. The heavy dashed lines denote calls from the NBO program 'backward' to the ESS program for information needed to carry out its tasks. Otherwise, the sequential flow of program control is generally from top to bottom and from left to right in the diagram.

A.1.3 Input and Output

From the user's point of view, the input to the NBO program attached to an ESS program consists simply of one or more keywords (an NBO keylist) included in the ESS input file. In effect, the NBO program reads these keywords to set various job options, then interrogates the ESS program through the DELSCF and FEAOIN drivers for additional information concerning the wavefunction. The general form of NBO keylists and the specific functions associated with each keyword are detailed in the User's Guide, Section B. The method of including NBO keylists in the input file for each ESS is detailed in the specific Appendix for the ESS.

The following information is passed from the ESS to the NBO program (transparent to the user):

1. The one-electron density matrix D (or density matrices in the open-shell case) in the chosen atomic orbital (AO) basis set;

2. The AO overlap matrix S, and label information identifying the symmetry (angular momentum type) and location (number of the atom to which affixed) for each AO;

3. Atomic number (nuclear charge) of each atom.

Certain additional information is written on the FILE48 direct access file and may be used in response to specific job options, such as the AO Fock matrix F, if energy analysis is requested; the AO dipole matrix M, if dipole moment analysis is requested; or information concerning the mathematical form of the AOs (orbital exponents, contraction coefficients, etc.), if orbital plotting information is requested to be saved as input for a contour plotting program.

The principal output from the NBO program consists of the tables and summaries describing the results of NBO analysis, included in the ESS output file. Sample NBO output is described in Section A.2.4 below. If requested, the NBO program may also write out transformation matrices or other data to disk files. The NBO program also creates or updates two files, the direct-access file (FILE48) and the 'archive' file (FILE47) that can be used to repeat NBO analysis with different options, without running the ESS program to recalculate the wavefunction. Necessary details of these files are given in Section B.7 and the Programmer's Guide, Section C.

A.1.4 General Capabilities and Restrictions

Principal capabilities of the NBO program are:

1. Natural population, natural bond orbital, and natural localized molecular orbital analysis of SCF, MCSCF, CI, and Møller-Plesset wavefunctions (main subroutine: NBO);

2. For RHF closed-shell and UHF wavefunctions only, energetic analysis of the wavefunction in terms of the interactions (Fock matrix elements) between NBOs (main subroutine: NBOEAN);

3. Localized analysis of molecular dipole moment in terms of NLMO and NBO bond moments and their interactions (main subroutine: DIPANL).

A highly transportable subset of standard FORTRAN 77 is employed, with no special compiler extensions of any vendor, and all variable names of six characters or less. Common abbreviations used in naming subprograms, variables, and keywords are:

S = overlap matrix
DM = density matrix (or D)
F = Fock matrix
DI = dipole matrix (or DXYZ, or DX, DY, DZ)
NPA = Natural Population Analysis
NAO = Natural Atomic Orbital
NBO = Natural Bond Orbital
NLMO = Natural Localized Molecular Orbital
PNAO = pre-orthogonal NAO (i.e., omit interatomic orthogonalization)
PNHO, PNBO, PNLMO = pre-orthogonal NHO, etc. (formed from PNAOs)

Most of the NBO storage is allocated dynamically, to conform to the minimum required for the molecular system under study. However, certain NBO common blocks of fixed dimensionality are used for integer storage. These are currently dimensioned to accomodate up to 99 atoms and 500 basis functions. Section C.3 describes how these restrictions can be altered. The program is not set up to handle complex wavefunctions, but can treat any real RHF, ROHF, UHF, MCSCF (including GVB), CI, or Møller-Plesset-type wavefunction (i.e., any form of wavefunction for which the requisite density matrices are available) for ground or excited states of general open- or closed-shell molecules. Effective core potentials ("pseudopotentials") can be handled, including complete neglect of core electrons as assumed in semi-empirical treatments. The atomic orbital basis functions (up to f orbitals in angular symmetry) may be of general Slater-type, contracted Gaussian-type, or other general composition, including the "effective" orthonormal valence-shell AOs of semi-empirical treatments. AO basis functions are assumed to be normalized, but in general non-orthogonal.

A.1.5 References and Relationship to Previous Versions

This program ("version 3.0") is an extension of previous versions of the NBO method incorporated in the semi-empirical program BONDO [F. Weinhold, Quantum Chemistry Program Exchange No. 408 (1980); "version 1.0"] and in a GAUSSIAN-82 implementation [A. E. Reed and F. Weinhold, QCPE Bull. 5, 141 (1985); "version 2.0"], and should be considered to supplant those versions. Version 3.0 also supplants the various specific versions ("the GAMESS version," "the AMPAC version," etc.) that have been informally created and distributed to individual users outside the QCPE framework.

Principal contributors to the development of the NBO methods and programs (1975-1990) are

T. K. BrunckA. E. Reed
J. P. FosterJ. E. Carpenter
A. B. RivesE. D. Glendening
R. B. WeinstockF. Weinhold
Principal references to the development and applications of NAO/NBO/NLMO methods are:

Natural Bond Orbitals:

J. P. Foster and F. Weinhold, J. Am. Chem. Soc. 102, 7211-7218 (1980).

Natural Atomic Orbitals and Natural Population Analysis:

A. E. Reed and F. Weinhold, J. Chem. Phys. 78, 4066-4073 (1983); A. E. Reed, R. B. Weinstock, and F. Weinhold, J. Chem. Phys. 83, 735-746 (1985).

Natural Localized Molecular Orbitals:

A. E. Reed and F. Weinhold, J. Chem. Phys. 83, 1736-1740 (1985).

Open-Shell NBO:

J. E. Carpenter and F. Weinhold, J. Molec. Struct. (Theochem) 169, 41-62 (1988); J. E. Carpenter, Ph. D. Thesis, University of Wisconsin, Madison, 1987.

Review Articles:

A. E. Reed, L. A. Curtiss, and F. Weinhold, Chem. Rev. 88, 899-926 (1988); F. Weinhold and J. E. Carpenter, in, R. Naaman and Z. Vager (eds.), "The Structure of Small Molecules and Ions," (Plenum, New York, 1988), pp. 227-236.

The principal enhancements of version 3.0 include:

1. Generalized Program Interface. Overall program organization (Fig. 1) has been modified to standardize communication with the main ESS program. This insures that all special ESS "versions" of the NBO program now have consistent options and capabilities (as long as the option is meaningful in the context of the ESS), and enables the program to be offered in a greater number of specialized ESS versions than were previously available.

2. NAO/NPA Summary Table. New tables give improved display of NAOs and natural populations, including the "natural electron configuration" of each atom (i.e., the occupancy and type of NAOs describing the atomic electron configuration of each atom). The new NAO summary tables (Section A.3.2) include an SCF atomic orbital energy (if available), a conventional atomic orbital label (1s, 2s, 2p, etc., in accordance with the labelling in isolated atoms), and a shell designation (Cor = core, Val = valence, or Ryd = Rydberg) to aid characterization of the NAO.

3. NBO Summary Table. A new NBO summary table (Section A.3.6) has been provided to summarize the energetics and delocalization patterns of the principal NBOs. This succinctly combines the most important information from the full NBO table, diagonal NBO Fock matrix elements, and 2nd-order energy analysis.

4. Bond Bending Analysis. The program includes a new analysis of hydrid directionality and bond "bending" (keyword BEND, Section A.3.4).

5. Dipole Moment Analysis. The program includes new optional provision (keyword DIPOLE, Section B.6.3) for analysis of the molecular dipole moment in terms of localized NLMOs and NBOs.

6. Print options. The program offers new structured printing options (Section B.2.4) that give greater convenience and flexibility in controlling printed output, with improved provision for printing matrices or basis transformations involving general NAO, NHO, NBO, NLMO or pre-orthogonal (PNAO, PNHO, PNBO, PNLMO) basis sets.

7. Orbital Contour Info. The program makes optional provision (keyword PLOT, Section B.2.5) for writing out files that can be used by an orbital plotting program (available separately through QCPE) to draw contour diagrams of the NBOs or other natural localized orbitals.

8. Effective Core Potentials. The program now handles effective core potentials (pseudopotentials), or the complete neglect of core levels characteristic of semi-empirical wavefunctions (Section B.6.12).

The program also includes three changes to correct problems of the previous version (which may have affected a small number of users):

9. Unpolarized Cores. NAOs identified as "core" orbitals are now automatically carried over as unhybridized 1-center core NBOs (Section B.3). This has virtually no effect on the form or occupancy of a core NBO, but averts the (rare) problem of unphysical mixing between core and valence lone pairs when the occupancies are 'accidentally' degenerate (usually, both very close to 2.000...) within the numerical machine precision. A warning message is printed when the core occupancy is less than 1.9990, indicating a possible "core polarization" effect of physical significance.

10. Excited State Antibond Labels. The program now directly investigates the nodal structure of an NBO (by examining the overlap matrix in the PNHO basis) before assigning it a label as a "bond" (unstarred) or "antibond" (starred) NBO. In previous versions, these labels were assigned on the basis of the presumed higher occupancy of the in-phase bond combination, which was generally true for ground states, but not for excited states. The program now prints a warning message whenever it encounters the "anomalous" situation of an out-of-phase antibond NBO having higher occupancy than the corresponding in-phase bond NBO, indicative of an excited-state configuration. [WARNING: the overlap test cannot be applied to semi-empirical methods with orthogonal AOs (e.g., AMPAC), so antibond labels for these methods are assigned, as in previous versions, on the basis of occupancy.]

11. Alternative Resonance Structures. The program now institutes a search for alternative Lewis ('resonance') structures when two or more structures may be competitive, and returns the structure of lowest non-Lewis occupancy. This corrects a possible dependence on atomic numbering in cases of strong delocalization.

Despite these changes and extensions, version 3.0 has been designed to be upward compatible with v. 2.0, as nearly as possible. Previous users of NBO 2.0 should find that their jobs run similarly (i.e., most keywords continue to function as in previous versions). Thus, experienced NBO users should find little difficulty in adapting to, and experimenting with, the new capabilities of the program.

A.2 INSTALLING THE NBO PROGRAM

The NBO programs and manual are provided on a distribution tape. The tape contains three files: the TechSet code of this manual (file NBO.MAN), a file containing the core NBO source routines and supporting driver routines (file NBO.SRC), and the Fortran "enabler" program (file ENABLE.FOR).

In overview, the installation procedure involves the following steps (the details of each step being dependent on your operating system):

1. Enabling the NBO routines. Copy the contents of the distribution tape onto your system. Using your system Fortran 77 compiler, compile and link the enabler program to create the ENABLE.EXE executable; for example, the VMS commands to create ENABLE.EXE are

     FOR ENABLE
     LINK ENABLE

Now, run the ENABLE program (e.g., type "RUN ENABLE" in a VMS system), and answer the prompt
     NBO program version to enable?

by selecting from the available offerings. Each ESS package is associated with a 3-letter identifier ("G88" for GAUSSIAN-88, "GMS" for GAMESS, "AMP" for AMPAC, etc.). The ENABLE program will create a file XXXNBO.FOR (where 'XXX' is the identifier) that incorporates the appropriate drivers for your ESS.

2. Compiling the NBO routines. Using your system Fortran 77 compiler, compile the XXXNBO.FOR file to an object code file (say, XXXNBO.OBJ). [Compiler errors (if any) should be fixed before proceeding. Please notify the authors if you encounter undue difficulties in this step.]

3. Modifying the ESS routines. In general, the ESS source Fortran code must be modified to call the NBO routines near the point where the ESS performs Mulliken Population Analysis or evaluates properties of the final wavefunction. The modification generally consists of inserting a single statement (viz., "CALL RUNNBO") in one subroutine of your ESS system. See the appropriate Appendix of this Manual for detailed information on exactly how to modify the ESS code for your chosen system.

4. Rebuilding the integrated ESS/NBO program. Re-compile your modified ESS programs and link the resulting object file (say, ESS.OBJ) with the XXXNBO.OBJ file to form the final ESS.EXE executable. In general, this step will closely follow the initial installation procedure for your ESS, with the exception that the XXXNBO.OBJ file must be included in the link statement (or deposited in one of the libraries accessed by the linker, etc.).

Note that installation of the NBO programs into your ESS system in no way affects the way your system processes standard input files. The only change involves enabling the reading of NBO keylists (if detected in your input file), performance of the tasks requested in the keylist, and return of control to the parent ESS program in the state in which the NBO call was encountered.

If you are interfacing the NBO programs to a new ESS package (not represented in the driver routines provided with this distribution), see Section C for guidance on how to create drivers for your ESS to provide the necessary information. Alternatively, see Section B.7 for a description of the input file to GENNBO, the stand-alone version of the NBO program.

The TechSet-coded version of this manual, NBO.MAN, can be printed on an HP LaserJet printer ('F' cartridge) with the TECHSET technical typesetting program [ACS Software, American Chemical Society, Marketing Communications Dept., 1155 Sixteenth Street, N.W., Washington, D.C. 20036].

A.3 TUTORIAL EXAMPLE FOR METHYLAMINE

A.3.1 Running the Example

This section provides an introductory 'quick start' tutorial on running a simple NBO job and interpreting the output. The example chosen is that of methylamine (CH3NH2) in Pople-Gordon idealized geometry, treated at the ab initio RHF/3-21G level. This simple split-valence basis set consists of 28 AOs (nine each on C and N, two on each H), extended by 13 AOs beyond the minimal basis level.

Input files to run this job (or its nearest equivalent) with each ESS are given in the Appendix. (The output shown below was created with the GAMESS system.) In most cases, you can modify the standard ESS input file to produce NBO output by simply including the line

     $NBO $END

at the end of the file. This is an 'empty' NBO keylist, specifying that NBO analysis should be carried out at the default level.

The default NBO output produced by this example is shown below, just as it appears in your output file. The start of the NBO section is marked by a standard header and storage info:

*******************************************************************************
            N A T U R A L   A T O M I C   O R B I T A L   A N D
         N A T U R A L   B O N D   O R B I T A L   A N A L Y S I S
*******************************************************************************

Job title:  Methylamine...RHF/3-21G//Pople-Gordon standard geometry

Storage needed:  2505 in NPA,  2569 in NBO ( 750000 available)

Note that all NBO output is formatted to a maximum 80-character width for convenient display on a computer terminal. The NBO heading echoes any requested keywords (none for the present default case) and shows an estimate of the memory requirements (in double precision words) for the separate steps of the NBO process, compared to the total allocated memory available through your ESS process. Increase the memory allocated to your ESS process if the estimated NBO requests exceed the available storage.

A.3.2 Natural Population Analysis

The next four NBO output segments summarize the results of natural population analysis (NPA). The first segment is the main NAO table, as shown below:

NATURAL POPULATIONS:  Natural atomic orbital occupancies

 NAO Atom #  lang   Type(AO)    Occupancy      Energy
---------------------------------------------------------
  1    C  1  s      Cor( 1s)     1.99900     -11.04184
  2    C  1  s      Val( 2s)     1.09038      -0.28186
  3    C  1  s      Ryd( 3s)     0.00068       1.95506
  4    C  1  px     Val( 2p)     0.89085      -0.01645
  5    C  1  px     Ryd( 3p)     0.00137       0.93125
  6    C  1  py     Val( 2p)     1.21211      -0.07191
  7    C  1  py     Ryd( 3p)     0.00068       1.03027
  8    C  1  pz     Val( 2p)     1.24514      -0.08862
  9    C  1  pz     Ryd( 3p)     0.00057       1.01801

 10    N  2  s      Cor( 1s)     1.99953     -15.25950
 11    N  2  s      Val( 2s)     1.42608      -0.71700
 12    N  2  s      Ryd( 3s)     0.00016       2.75771
 13    N  2  px     Val( 2p)     1.28262      -0.18042
 14    N  2  px     Ryd( 3p)     0.00109       1.57018
 15    N  2  py     Val( 2p)     1.83295      -0.33858
 16    N  2  py     Ryd( 3p)     0.00190       1.48447
 17    N  2  pz     Val( 2p)     1.35214      -0.19175
 18    N  2  pz     Ryd( 3p)     0.00069       1.59492

 19    H  3  s      Val( 1s)     0.81453       0.13283
 20    H  3  s      Ryd( 2s)     0.00177       0.95067

 21    H  4  s      Val( 1s)     0.78192       0.15354
 22    H  4  s      Ryd( 2s)     0.00096       0.94521

 23    H  5  s      Val( 1s)     0.78192       0.15354
 24    H  5  s      Ryd( 2s)     0.00096       0.94521

 25    H  6  s      Val( 1s)     0.63879       0.20572
 26    H  6  s      Ryd( 2s)     0.00122       0.99883

 27    H  7  s      Val( 1s)     0.63879       0.20572
 28    H  7  s      Ryd( 2s)     0.00122       0.99883

For each of the 28 NAO functions, this table lists the atom to which NAO is attached (in the numbering scheme of the ESS program), the angular momentum type 'lang' (s, px, etc., in the coordinate system of the ESS program), the orbital type (whether core, valence, or Rydberg, and a conventional hydrogenic-type label), the orbital occupancy (number of electrons, or 'natural population' of the orbital), and the orbital energy (in the favored units of the ESS program, in this case atomic units: 1 a.u. = 627.5 kcal/mol). [For example, NAO 4 (the highest energy C orbital of the NMB set) is the valence shell 2px orbital on carbon, occupied by 0.8909 electrons, whereas NAO 5 is a Rydberg 3px orbital with only 0.0014 electrons.] Note that the occupancies of the Rydberg (Ryd) NAOs are typically much lower than those of the core (Cor) plus valence (Val) NAOs of the natural minimum basis set, reflecting the dominant role of the NMB orbitals in describing molecular properties.

The principal quantum numbers for the NAO labels (1s, 2s, 3s, etc.) are assigned on the basis of the energy order if a Fock matrix is available, or on the basis of occupancy otherwise. A message is printed warning of a 'population inversion' if the occupancy and energy ordering do not coincide.

The next segment is an atomic summary showing the natural atomic charges (nuclear charge minus summed natural populations of NAOs on the atom) and total core, valence, and Rydberg populations on each atom:

Summary of Natural Population Analysis:

                                      Natural Population
              Natural   -----------------------------------------------
   Atom #     Charge        Core      Valence    Rydberg      Total
-----------------------------------------------------------------------
     C  1   -0.44079      1.99900     4.43848    0.00331     6.44079
     N  2   -0.89715      1.99953     5.89378    0.00384     7.89715
     H  3    0.18370      0.00000     0.81453    0.00177     0.81630
     H  4    0.21713      0.00000     0.78192    0.00096     0.78287
     H  5    0.21713      0.00000     0.78192    0.00096     0.78287
     H  6    0.35999      0.00000     0.63879    0.00122     0.64001
     H  7    0.35999      0.00000     0.63879    0.00122     0.64001
=======================================================================
  * Total *  0.00000      3.99853    13.98820    0.01328    18.00000

This table succinctly describes the molecular charge distribution in terms of NPA charges. [For example, the carbon atom of methylamine is assigned a net NPA charge of -0.441 at this level; note also the slightly less positive charge on H(3) than on the other two methyl hydrogens: +0.184 vs. +0.217.]

Next follows a summary of the NMB and NRB populations for the composite system, summed over atoms:

                                Natural Population
--------------------------------------------------------
  Core                       3.99853 ( 99.9632% of   4)
  Valence                   13.98820 ( 99.9157% of  14)
  Natural Minimal Basis     17.98672 ( 99.9262% of  18)
  Natural Rydberg Basis      0.01328 (  0.0738% of  18)
--------------------------------------------------------

This exhibits the high percentage contribution (typically, > 99%) of the NMB set to the molecular charge distribution. [In the present case, for example, the 13 Rydberg orbitals of the NRB set contribute only 0.07% of the electron density, whereas the 15 NMB functions account for 99.93% of the total.]

Finally, the natural populations are summarized as an effective valence electron configuration ("natural electron configuration") for each atom:

   Atom #          Natural Electron Configuration
----------------------------------------------------------------------------
     C  1      [core]2s( 1.09)2p( 3.35)
     N  2      [core]2s( 1.43)2p( 4.47)
     H  3            1s( 0.81)
     H  4            1s( 0.78)
     H  5            1s( 0.78)
     H  6            1s( 0.64)
     H  7            1s( 0.64)

Although the occupancies of the atomic orbitals are non-integer in the molecular environment, the effective atomic configurations can be related to idealized atomic states in 'promoted' configurations. [For example, the carbon atom in the above table is most nearly described by an idealized 1s22s12p3 electron configuration.]

A.3.3 Natural Bond Orbital Analysis

The next segments of the output summarize the results of NBO analysis. The first segment reports on details of the search for an NBO natural Lewis structure:

NATURAL BOND ORBITAL ANALYSIS:

                      Occupancies       Lewis Structure    Low   High
          Occ.    -------------------  -----------------   occ   occ
 Cycle   Thresh.   Lewis   Non-Lewis     CR  BD  3C  LP    (L)   (NL)   Dev
=============================================================================
  1(1)    1.90    17.95048   0.04952      2   6   0   1     0      0    0.02
-----------------------------------------------------------------------------

Structure accepted: No low occupancy Lewis orbitals

Normally, there is but one cycle of the NBO search (cf. the "RESONANCE" keyword, Section B.6.6). The table summarizes a variety of information for each cycle: the occupancy threshold for a 'good' pair in the NBO search; the total populations of Lewis and non-Lewis NBOs; the number of core (CR), 2-center bond (BD), 3-center bond (3C), and lone pair (LP) NBOs in the natural Lewis structure; the number of low-occupancy Lewis (L) and 'high-occupancy' (> 0.1e) non-Lewis (NL) orbitals; and the maximum deviation ('Dev') of any formal bond order from a nominal estimate (NAO Wiberg bond index) for the structure. [If the latter exceeds 0.1, additional NBO searches are initiated (indicated by the parenthesized number under 'Cycle') for alternative Lewis structures.] The Lewis structure is accepted if all orbitals of the formal Lewis structure exceed the occupancy threshold (default, 1.90 electrons).

Next follows a more detailed breakdown of the Lewis and non-Lewis occupancies into core, valence, and Rydberg shell contributions:

WARNING:  1 low occupancy (<1.9990e) core orbital  found on  C 1

--------------------------------------------------------
  Core                      3.99853 ( 99.963% of   4)
  Valence Lewis            13.95195 ( 99.657% of  14)
 ==================       ============================
  Total Lewis              17.95048 ( 99.725% of  18)
 -----------------------------------------------------
  Valence non-Lewis         0.03977 (  0.221% of  18)
  Rydberg non-Lewis         0.00975 (  0.054% of  18)
 ==================       ============================
  Total non-Lewis           0.04952 (  0.275% of  18)
--------------------------------------------------------

This shows the general quality of the natural Lewis structure description in terms of the percentage of the total electron density (e.g., in the above case, about 99.7%). The table also exhibits the relatively important role of the valence non-Lewis orbitals (i.e., the six valence antibonds, NBOs 23-28) relative to the extra-valence orbitals (the 13 Rydberg NBOs 10-22) in the slight departures from a localized Lewis structure model. (In this case, the table also includes a warning about a carbon core orbital with slightly less than double occupancy.)

Next follows the main listing of NBOs, displaying the form and occupancy of the complete set of NBOs that span the input AO space:


    (Occupancy)   Bond orbital/ Coefficients/ Hybrids
-------------------------------------------------------------------------------
  1. (1.99858) BD ( 1) C 1- N 2
               ( 40.07%)   0.6330* C 1 s( 21.71%)p 3.61( 78.29%)
                                       -0.0003 -0.4653 -0.0238 -0.8808 -0.0291
                                       -0.0786 -0.0110  0.0000  0.0000
               ( 59.93%)   0.7742* N 2 s( 30.88%)p 2.24( 69.12%)
                                       -0.0001 -0.5557  0.0011  0.8302  0.0004
                                        0.0443 -0.0098  0.0000  0.0000
  2. (1.99860) BD ( 1) C 1- H 3
               ( 59.71%)   0.7727* C 1 s( 25.78%)p 2.88( 74.22%)
                                       -0.0002 -0.5077  0.0069  0.1928  0.0098
                                        0.8396 -0.0046  0.0000  0.0000
               ( 40.29%)   0.6347* H 3 s(100.00%)
                                       -1.0000 -0.0030
  3. (1.99399) BD ( 1) C 1- H 4
               ( 61.02%)   0.7812* C 1 s( 26.28%)p 2.80( 73.72%)
                                        0.0001  0.5127 -0.0038 -0.3046 -0.0015
                                        0.3800 -0.0017  0.7070 -0.0103
               ( 38.98%)   0.6243* H 4 s(100.00%)
                                        1.0000  0.0008
  4. (1.99399) BD ( 1) C 1- H 5
               ( 61.02%)   0.7812* C 1 s( 26.28%)p 2.80( 73.72%)
                                        0.0001  0.5127 -0.0038 -0.3046 -0.0015
                                        0.3800 -0.0017 -0.7070  0.0103
               ( 38.98%)   0.6243* H 5 s(100.00%)
                                        1.0000  0.0008
  5. (1.99442) BD ( 1) N 2- H 6
               ( 68.12%)   0.8253* N 2 s( 25.62%)p 2.90( 74.38%)
                                        0.0000  0.5062  0.0005  0.3571  0.0171
                                       -0.3405  0.0069 -0.7070 -0.0093
               ( 31.88%)   0.5646* H 6 s(100.00%)
                                        1.0000  0.0020
  6. (1.99442) BD ( 1) N 2- H 7
               ( 68.12%)   0.8253* N 2 s( 25.62%)p 2.90( 74.38%)
                                        0.0000  0.5062  0.0005  0.3571  0.0171
                                       -0.3405  0.0069  0.7070  0.0093
               ( 31.88%)   0.5646* H 7 s(100.00%)
                                        1.0000  0.0020
  7. (1.99900) CR ( 1) C 1             s(100.00%)p 0.00(  0.00%)
                                        1.0000 -0.0003  0.0000 -0.0002  0.0000
                                        0.0001  0.0000  0.0000  0.0000
  8. (1.99953) CR ( 1) N 2             s(100.00%)p 0.00(  0.00%)
                                        1.0000 -0.0001  0.0000  0.0001  0.0000
                                        0.0000  0.0000  0.0000  0.0000
  9. (1.97795) LP ( 1) N 2             s( 17.85%)p 4.60( 82.15%)
                                        0.0000  0.4225  0.0002  0.2360 -0.0027
                                        0.8749 -0.0162  0.0000  0.0000
 10. (0.00105) RY*( 1) C 1             s(  1.57%)p62.84( 98.43%)
                                        0.0000 -0.0095  0.1248 -0.0305  0.7302
                                       -0.0046  0.6710  0.0000  0.0000
 11. (0.00034) RY*( 2) C 1             s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0146  0.9999
 12. (0.00022) RY*( 3) C 1             s( 56.51%)p 0.77( 43.49%)
                                        0.0000 -0.0023  0.7517 -0.0237  0.3710
                                       -0.0094 -0.5447  0.0000  0.0000
 13. (0.00002) RY*( 4) C 1             s( 41.87%)p 1.39( 58.13%)
 14. (0.00116) RY*( 1) N 2             s(  1.50%)p65.53( 98.50%)
                                        0.0000 -0.0062  0.1224  0.0063  0.0371
                                        0.0197  0.9915  0.0000  0.0000
 15. (0.00044) RY*( 2) N 2             s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000 -0.0132  0.9999
 16. (0.00038) RY*( 3) N 2             s( 33.38%)p 2.00( 66.62%)
                                        0.0000  0.0133  0.5776  0.0087 -0.8150
                                       -0.0121 -0.0405  0.0000  0.0000
 17. (0.00002) RY*( 4) N 2             s( 65.14%)p 0.54( 34.86%)
 18. (0.00178) RY*( 1) H 3             s(100.00%)
                                       -0.0030  1.0000
 19. (0.00096) RY*( 1) H 4             s(100.00%)
                                       -0.0008  1.0000
 20. (0.00096) RY*( 1) H 5             s(100.00%)
                                       -0.0008  1.0000
 21. (0.00122) RY*( 1) H 6             s(100.00%)
                                       -0.0020  1.0000
 22. (0.00122) RY*( 1) H 7             s(100.00%)
                                       -0.0020  1.0000
 23. (0.00016) BD*( 1) C 1- N 2
               ( 59.93%)   0.7742* C 1 s( 21.71%)p 3.61( 78.29%)
                                       -0.0003 -0.4653 -0.0238 -0.8808 -0.0291
                                       -0.0786 -0.0110  0.0000  0.0000
               ( 40.07%)  -0.6330* N 2 s( 30.88%)p 2.24( 69.12%)
                                       -0.0001 -0.5557  0.0011  0.8302  0.0004
                                        0.0443 -0.0098  0.0000  0.0000
 24. (0.01569) BD*( 1) C 1- H 3
               ( 40.29%)   0.6347* C 1 s( 25.78%)p 2.88( 74.22%)
                                        0.0002  0.5077 -0.0069 -0.1928 -0.0098
                                       -0.8396  0.0046  0.0000  0.0000
               ( 59.71%)  -0.7727* H 3 s(100.00%)
                                        1.0000  0.0030
 25. (0.00769) BD*( 1) C 1- H 4
               ( 38.98%)   0.6243* C 1 s( 26.28%)p 2.80( 73.72%)
                                       -0.0001 -0.5127  0.0038  0.3046  0.0015
                                       -0.3800  0.0017 -0.7070  0.0103
               ( 61.02%)  -0.7812* H 4 s(100.00%)
                                       -1.0000 -0.0008
 26. (0.00769) BD*( 1) C 1- H 5
               ( 38.98%)   0.6243* C 1 s( 26.28%)p 2.80( 73.72%)
                                       -0.0001 -0.5127  0.0038  0.3046  0.0015
                                       -0.3800  0.0017  0.7070 -0.0103
               ( 61.02%)  -0.7812* H 5 s(100.00%)
                                       -1.0000 -0.0008
 27. (0.00426) BD*( 1) N 2- H 6
               ( 31.88%)   0.5646* N 2 s( 25.62%)p 2.90( 74.38%)
                                        0.0000 -0.5062 -0.0005 -0.3571 -0.0171
                                        0.3405 -0.0069  0.7070  0.0093
               ( 68.12%)  -0.8253* H 6 s(100.00%)
                                       -1.0000 -0.0020
 28. (0.00426) BD*( 1) N 2- H 7
               ( 31.88%)   0.5646* N 2 s( 25.62%)p 2.90( 74.38%)
                                        0.0000 -0.5062 -0.0005 -0.3571 -0.0171
                                        0.3405 -0.0069 -0.7070 -0.0093
               ( 68.12%)  -0.8253* H 7 s(100.00%)
                                       -1.0000 -0.0020

For each NBO (1-28), the first line of printout shows the occupancy (between 0 and 2.0000 electrons) and unique label of the NBO. This label gives the type ("BD" for 2-center bond, "CR" for 1-center core pair, "LP" for 1-center valence lone pair, "RY*" for 1-center Rydberg, and "BD*" for 2-center antibond, the unstarred and starred labels corresponding to Lewis and non-Lewis NBOs, respectively), a serial number (1, 2,... if there is a single, double,... bond between the pair of atoms), and the atom(s) to which the NBO is affixed. [For example, the first NBO in the sample output is the 2-center bond (with 1.99858 electrons) between carbon (atom 1) and nitrogen (atom 2), the CN bond.] The next lines summarize the natural atomic hybrids hA of which the NBO is composed, giving the percentage (100|cA|2) of the NBO on each hybrid (in parentheses), the polarization coefficient cA, the atom label, and a hybrid label showing the sp composition (percentage s-character, p-character, etc.) of each hA. [For example, the CN NBO is formed from an sp3.61 hybrid (78.3% p-character) on carbon interacting with an sp2.24 hybrid (69.1% p-character) on nitrogen,

CN = 0.633(sp3.61)C + 0.774(sp2.24)N

corresponding roughly to the qualitative concept of interacting sp3 hybrids (75% p-character) and the higher electronegativity (larger polarization coefficient) of N.] Below each NHO label is the set of coefficients that specify how the NHO is written explicitly as a linear combination of NAOs on the atom. The order of NAO coefficients follows the numbering of the NAO tables. [For example, in the first NBO entry, the carbon hybrid hC of the CN bond has largest coefficients for the 2nd and 4th NAOs, corresponding to the approximate description

hC -0.4653(2s)C - 0.8808(2px)C

in terms of the valence NAOs of the carbon atom.] In the CH3NH2 example, the NBO search finds the C-N bond (NBO 1), three C-H bonds (NBOs 2, 3, 4), two N-H bonds (NBOs 5, 6), N lone pair (NBO 9), and C and N core pairs (NBOs 7, 8) of the expected Lewis structure. NBOs 10-28 represent the residual non-Lewis NBOs of low occupancy. In this example, it is also interesting to note the slight asymmetry of the three CH NBOs, and the slightly higher occupancy (0.01569 vs. 0.0077 electrons) in the *C1H3 antibond (NBO 24) lying trans to the nitrogen lone pair.

A.3.4 NHO Directional Analysis

The next segment of output summarizes the angular properties of the natural hybrid orbitals:

NHO Directionality and "Bond Bending" (deviations from line of nuclear centers)

        [Thresholds for printing:  angular deviation  >  1.0 degree]
                                   hybrid p-character > 25.0%
                                   orbital occupancy  >  0.10e

                      Line of Centers        Hybrid 1              Hybrid 2
                      ---------------  -------------------   ------------------
          NBO           Theta   Phi    Theta   Phi    Dev    Theta   Phi    Dev
===============================================================================
  1. BD ( 1) C 1- N 2    90.0    5.4     --     --    --      90.0  182.4   3.0
  3. BD ( 1) C 1- H 4    35.3  130.7    34.9  129.0   1.0      --     --    --
  4. BD ( 1) C 1- H 5   144.7  130.7   145.1  129.0   1.0      --     --    --
  5. BD ( 1) N 2- H 6   144.7  310.7   145.0  318.3   4.4      --     --    --
  6. BD ( 1) N 2- H 7    35.3  310.7    35.0  318.3   4.4      --     --    --
  9. LP ( 1) N 2          --     --     90.0   74.8   --       --     --    --

The 'direction' of a hybrid is specified in terms of the polar () and azimuthal () angles (in the ESS coordinate system) of the vector describing its p-component. The hybrid direction is compared with the direction of the line of centers between the two nuclei to determine the 'bending' of the bond, expressed as the deviation angle ("Dev," in degrees) between these two directions. For example, in the CH3NH2 case shown above, the nitrogen NHO of the CN bond (NBO 1) is bent away from the line of C-N centers by 3.0°, whereas the carbon NHO is approximately aligned with the C-N axis (within the 1.0° threshold for printing). The N-H bonds (NBOs 5, 6) are bent even further (4.4°). The information in this table is often useful in anticipating the direction of geometry changes resulting from geometry optimization (viz., likely reduced pyramidalization of the -NH2 group to relieve the nitrogen bond 'kinks' found in the tetrahedral Pople-Gordon geometry).

A.3.5 Perturbation Theory Energy Analysis

The next segment summarizes the second-order perturbative estimates of 'donor-acceptor' (bond-antibond) interactions in the NBO basis:

Second Order Perturbation Theory Analysis of Fock Matrix in NBO Basis

    Threshold for printing:   0.50 kcal/mol
                                                         E(2)  E(j)-E(i) F(i,j)
     Donor NBO (i)              Acceptor NBO (j)       kcal/mol   a.u.    a.u.
===============================================================================

within unit  1
  2. BD ( 1) C 1- H 3     / 14. RY*( 1) N 2              0.84    2.18    0.038
  3. BD ( 1) C 1- H 4     / 26. BD*( 1) C 1- H 5         0.52    1.39    0.024
  3. BD ( 1) C 1- H 4     / 27. BD*( 1) N 2- H 6         3.03    1.37    0.057
  4. BD ( 1) C 1- H 5     / 25. BD*( 1) C 1- H 4         0.52    1.39    0.024
  4. BD ( 1) C 1- H 5     / 28. BD*( 1) N 2- H 7         3.03    1.37    0.057
  5. BD ( 1) N 2- H 6     / 10. RY*( 1) C 1              0.56    1.78    0.028
  5. BD ( 1) N 2- H 6     / 25. BD*( 1) C 1- H 4         2.85    1.51    0.059
  6. BD ( 1) N 2- H 7     / 10. RY*( 1) C 1              0.56    1.78    0.028
  6. BD ( 1) N 2- H 7     / 26. BD*( 1) C 1- H 5         2.85    1.51    0.059
  7. CR ( 1) C 1          / 16. RY*( 3) N 2              0.61   13.11    0.080
  7. CR ( 1) C 1          / 18. RY*( 1) H 3              1.40   11.99    0.116
  7. CR ( 1) C 1          / 19. RY*( 1) H 4              1.55   11.99    0.122
  7. CR ( 1) C 1          / 20. RY*( 1) H 5              1.55   11.99    0.122
  8. CR ( 1) N 2          / 10. RY*( 1) C 1              1.51   16.23    0.140
  8. CR ( 1) N 2          / 12. RY*( 3) C 1              0.84   16.77    0.106
  8. CR ( 1) N 2          / 21. RY*( 1) H 6              0.61   16.26    0.089
  8. CR ( 1) N 2          / 22. RY*( 1) H 7              0.61   16.26    0.089
  9. LP ( 1) N 2          / 24. BD*( 1) C 1- H 3         8.13    1.13    0.086
  9. LP ( 1) N 2          / 25. BD*( 1) C 1- H 4         1.46    1.14    0.037
  9. LP ( 1) N 2          / 26. BD*( 1) C 1- H 5         1.46    1.14    0.037

This is carried out by examining all possible interactions between 'filled' (donor) Lewis-type NBOs and 'empty' (acceptor) non-Lewis NBOs, and estimating their energetic importance by 2nd-order perturbation theory. Since these interactions lead to loss of occupancy from the localized NBOs of the idealized Lewis structure into the empty non-Lewis orbitals (and thus, to departures from the idealized Lewis structure description), they are referred to as 'delocalization' corrections to the zeroth-order natural Lewis structure. For each donor NBO (i) and acceptor NBO (j), the stabilization energy E(2) associated with delocalization ("2e-stabilization") i j is estimated as

E(2) = Eij = qi (F(i,j)2)/(j - i)

where qi is the donor orbital occupancy, i, j are diagonal elements (orbital energies) and F(i,j) is the off-diagonal NBO Fock matrix element. [In the example above, the nN *CH interaction between the nitrogen lone pair (NBO 8) and the antiperiplanar C1-H3 antibond (NBO 24) is seen to give the strongest stabilization, 8.13 kcal/mol.] As the heading indicates, entries are included in this table only when the interaction energy exceeds a default threshold of 0.5 kcal/mol.

A.3.6 NBO Summary

Next appears a condensed summary of the principal NBOs, showing the occupancy, orbital energy, and the qualitative pattern of delocalization interactions associated with each:

Natural Bond Orbitals (Summary):

                                                    Principal Delocalizations
          NBO              Occupancy    Energy      (geminal,vicinal,remote)
===============================================================================
Molecular unit  1  (CH5N)
  1. BD ( 1) C 1- N 2       1.99858    -0.89908
  2. BD ( 1) C 1- H 3       1.99860    -0.69181    14(v)
  3. BD ( 1) C 1- H 4       1.99399    -0.68892    27(v),26(g)
  4. BD ( 1) C 1- H 5       1.99399    -0.68892    28(v),25(g)
  5. BD ( 1) N 2- H 6       1.99442    -0.80951    25(v),10(v)
  6. BD ( 1) N 2- H 7       1.99442    -0.80951    26(v),10(v)
  7. CR ( 1) C 1            1.99900   -11.04131    19(v),20(v),18(v),16(v)
  8. CR ( 1) N 2            1.99953   -15.25927    10(v),12(v),21(v),22(v)
  9. LP ( 1) N 2            1.97795    -0.44592    24(v),25(v),26(v)
 10. RY*( 1) C 1            0.00105     0.97105
 11. RY*( 2) C 1            0.00034     1.02120
 12. RY*( 3) C 1            0.00022     1.51414
 13. RY*( 4) C 1            0.00002     1.42223
 14. RY*( 1) N 2            0.00116     1.48790
 15. RY*( 2) N 2            0.00044     1.59323
 16. RY*( 3) N 2            0.00038     2.06475
 17. RY*( 4) N 2            0.00002     2.25932
 18. RY*( 1) H 3            0.00178     0.94860
 19. RY*( 1) H 4            0.00096     0.94464
 20. RY*( 1) H 5            0.00096     0.94464
 21. RY*( 1) H 6            0.00122     0.99735
 22. RY*( 1) H 7            0.00122     0.99735
 23. BD*( 1) C 1- N 2       0.00016     0.57000
 24. BD*( 1) C 1- H 3       0.01569     0.68735
 25. BD*( 1) C 1- H 4       0.00769     0.69640
 26. BD*( 1) C 1- H 5       0.00769     0.69640
 27. BD*( 1) N 2- H 6       0.00426     0.68086
 28. BD*( 1) N 2- H 7       0.00426     0.68086
      -------------------------------
             Total Lewis   17.95048  ( 99.7249%)
       Valence non-Lewis    0.03977  (  0.2209%)
       Rydberg non-Lewis    0.00975  (  0.0542%)
      -------------------------------
           Total unit  1   18.00000  (100.0000%)
          Charge unit  1    0.00000

This table allows one to quickly identify the principal delocalizing acceptor orbitals associated with each donor NBO, and their topological relationship to this NBO, i.e., whether attached to the same atom (geminal, "g"), to an adjacent bonded atom (vicinal, "v"), or to a more remote ("r") site. These acceptor NBOs will generally correspond to the principal 'delocalization tails' of the NLMO associated with the parent donor NBO. [For example, in the table above, the nitrogen lone pair (NBO 9) is seen to be the lowest-occupancy (1.97795 electrons) and highest-energy (-0.44592 a.u.) Lewis NBO, and to be primarily delocalized into antibonds 24, 25, 26 (the vicinal *CH NBOs). The summary at the bottom of the table shows that the Lewis NBOs 1-9 describe about 99.7% of the total electron density, with the remaining non-Lewis density found primarily in the valence-shell antibonds (particularly, NBO 24).]

Section B: NBO USER'S GUIDE

B.1 INTRODUCTION TO THE NBO USER'S GUIDE AND NBO KEYLISTS

Section B constitutes the general user's guide to the NBO program. It assumes that the user has an installed electronic structure system (ESS) with attached NBO program, a general idea of what the NBO method is about, and some acquaintance with standard NBO terminology and output data. If you are completely inexperienced in these areas, read Section A (General Introduction and Installation) for the necessary background to this Section.

The User's Guide describes how to use the NBO program by modifying your input file to the ESS program to get some NBO output. The modification consists of adding a list of keywords in a prescribed keylist format. Four distinct keylist ($KEY) types are recognized ($NBO, $CORE, $CHOOSE, and $DEL), and these will be described in turn in Sections B.2-B.5. Some of the details of inserting NBO keylists into the input file depend on the details of your ESS method, and are described in the appropriate Appendix for the ESS. However, the general form of NBO keylists and the meaning and function of each keyword are identical for all versions (insofar as the option is meaningful for the ESS), and are described herein.

The four keylist types have common rules of syntax: Keylist delimiters are identified by a "$" prefix. Each keylist begins with the parent keylist name (e.g., "$NBO"), followed by any number of keywords, and ended with the word "$END"; for example,

     $NBO   keyword1   keyword2   . . .   $END      !comment

(The allowed keyword entries for each type of keylist are described in Sections B.2-B.5.) The keylist is "free format," with keywords separated by commas or any number of spaces. An NBO option is activated by simply including its keyword in the appropriate keylist. The order of keywords in the principal $NBO keylist does not matter, but multiple keylists must be given in the order (1) $NBO, (2) $CORE, (3) $CHOOSE, (4) $DEL of presentation in Sections B.2-B.5. Keywords may be typed in upper or lower case, and will be echoed near the top of the NBO output. A $KEY list can be continued to any number of lines, but all the entries of a $KEY list must appear in a distinct set of lines, starting with the $KEY name on the first line and ending with the closing $END on the last line (i.e., no two $KEY lists should share parts of the same line). As the above example indicates, any line in the keylist input may terminate with an exclamation point (!) followed by 'comment' of your choice; the "!" is considered to terminate the line, and the trailing 'comment' is ignored by the program.

B.2 THE $NBO KEYLIST

B.2.1 Overview of $NBO keywords

The $NBO keylist is the principal means of specifying NBO job options and controlling output, and must precede any other keylist ($CORE, $CHOOSE, or $DEL) in your input file. The allowed keywords that can appear in a $NBO keylist are grouped as follows:

Job Control Keywords:

NPANBOSUMNOBONDSKIPBO
NBORESONANCE3CBONDNLMO
Job Threshold Keywords:
BEND(=ang,pct,occ)
E2PERT(=val)
DIPOLE(=val)

Matrix Output Keywords:

AONAONAONHONHONBONBONLMONLMOMO
AONHONAONBONHONLMONBOMO
AONBONAONLMONHOMO
AONLMONAOMO
AOMO
AOPNAOAOPNHOAOPNBOAOPNLMO
DMAOFAODIAOSAO
DMNAOFNAODINAOSPNAO
DMNHOFNHODINHOSPNHO
DMNBOFNBODINBOSPNBO
DMNLMOFNLMODINLMOSPNLMO

Other Output Control Keywords:

LFNPRDETAILBNDIDXAOINFO
PLOTARCHIVENBODAF

Print Level Control: PRINT=n

Keywords are first listed and described according to these formal groupings in Sections B.2.2-B.2.6. Section B.6 illustrates the effect of commonly used $NBO keywords (as well as other $KEY lists) on the successive stages of NAO/NBO/NLMO transformation and subsequent energy or dipole analysis, with sample output for these keyword options.

Some keywords of the $NBO keylist require (or allow) numerical values or other parameters to specify their exact function. In this case, the numerical value or parameter must immediately follow the keyword after an equal sign (=) or any number of blank spaces. Examples:

     E2PERT=2.5   LFNPR 16  NBOMO=W25

(The equal sign is recommended, and will be used in the remaining examples.)

[ Although the general user's interaction with the NBO programs is usually through the documented keywords of Sections B.2.2-B.2.6, some additional 'semi-documented' keywords are listed in Section B.2.7 which may be of interest to the specialist.]

B.2.2 Job Control Keywords

The keywords in this group activate or deactivate basic tasks to be performed by the NBO programs, or change the way the NBO search is conducted. Each keyword is described in terms of the option it activates (together with an indication of where the option is useful):

KEYWORD OPTION DESCRIPTION

NPA Request Natural Population Analysis and printing of NPA summary tables (Section A.3.2). This keyword also activates calculation of NAOs, except for semi-empirical ESS methods.

NBO Request calculation of NBOs and printing of the main NBO table (Section A.3.3).

NBOSUM Request printing of the NBO summary table (Section A.3.6). This combines elements of the NBO table and 2nd-order perturbation theory analysis table (see below) in a convenient form for recognizing the principal delocalization patterns.

RESONANCE Request search for highly delocalized structures (Section B.6.6). The NBO search normally aborts when one or more Lewis NBOs has less than the default occupancy threshold of 1.90 electrons for a 'good' electron pair. When the RESONANCE keyword is activated, this threshold is successively lowered in 0.10 decrements to 1.50, and the NBO search repeated to find the best Lewis structure within each occupancy threshold. The program returns with the best overall Lewis structure (lowest total non-Lewis occupancy) found in these searches. (Useful for benzene and other highly delocalized molecules.)

NOBOND Request that no bonds (2-center NBOs) are to be formed in the NBO procedure (Section B.6.7). The resulting NBOs will then simply be 1-center atomic hybrids. (Useful for highly ionic species.)

3CBOND Request search for 3-center bonds (Section B.6.8). The normal default is to search for only 1- and 2-center NBOs. (Useful for diborane and other electron-deficient 'bridged' species.)

SKIPBO Skip the computation of NBOs, i.e., only determine NAOs and perform natural population analysis. (Useful when only NPA is desired.)

NLMO Compute and print out the summary table of Natural Localized Molecular Orbitals (Section B.6.2). NLMOs are similar to Boys or Edmiston-Ruedenberg LMOs, but more efficiently calculated. (Useful for 'semi-localized' description of an SCF or correlated wavefunction.) Activated automatically by all keywords that pertain to NLMOs (e.g., AONLMO, SPNLMO, DIPOLE).

Note that the SKIPBO keyword has higher precedence than other keywords in this list, so that keywords with which it is implicitly in conflict (e.g., NBO, 3CBOND, NLMO) will be ignored if SKIPBO is included in the $NBO keylist.

B.2.3 Job Threshold Keywords

The keywords in this group also activate new tasks to be performed by the NBO program, but these keywords may be modified by one or more parameters (thresholds) that control the precise action to be taken. (In each case the keywords may also be used without parameters, accepting the default values [in brackets].)

KEYWORD parameter(s) OPTION DESCRIPTION

BEND ang, pct, occ Request the NHO Directional Analysis table (Section A.3.4). The three parameters [and default values] have the following significance:

= threshold angular deviation for printing
pct [25] = threshold percentage p-character for printing
occ [0.1] = threshold NBO occupancy for printing

Parameter values may be separated by a space or a comma.

Example:

     BEND=2,10,1.9

This example specifies that the bond-bending table should only include entries for angular deviations of at least 2° (ang), hybrids of at least 10% p-character (pct), and NBOs of occupancy at least 1.9 electrons (occ).

E2PERT eval Request the Perturbation Theory Energy Analysis table (Section A.3.5), where

eval [0.5] = threshold energy (in kcal/mol) for printing

Entries will be printed for NBO donor-acceptor interaction energies that exceed the 'eval' threshold.

Example:

     E2PERT=5.0

This example would print only interactions of at least 5 kcal/mol (i.e., only the single entry for the 8.13 kcal/mol nN *CH interaction in the output of Section A.3.5).

DIPOLE dval Request the Molecular Dipole Moment Analysis table (Section B.6.3), where

dval [0.02] = threshold dipole moment (Debye) for printing

The program will carry out a decomposition of the total molecular dipole moment in terms of localized NLMO and NBO contributions, including all terms whose contribution (in vector norm) exceeds the 'dval' threshold.

Example:

     DIPOLE=0.1

This example would print out dipole contributions of all NBOs (and their delocalization interactions) of magnitude 0.1 D.

Both the BEND and E2PERT keywords are activated by default at the standard PRINT level option (see Section B.2.6); to get an example of dipole moment analysis, include the keylist

     $NBO  DIPOLE  $END

in your input file. Note that the DIPOLE keyword leads to an analysis in terms of both NBOs and NLMOs, so that the NLMO keyword (Section B.2.2) is automatically activated in this case.

B.2.4 Matrix Output Keywords

The keywords in this group activate the printing of various matrices to the output file, or their writing to (or reading from) external disk files. The large number of keywords in this group provide great flexibility in printing out the details of the successive transformations,

input AOs (PNAOs) NAOs NHOs NBOs NLMOs canonical MOs

or the matrices of various operators in the natural localized basis sets. This ordered sequence of transformations forms the basis for naming the keywords.

Keyword Names

The keyword for printing the matrix for a particular basis transformation, IN OUT, is constructed from the corresponding acronymns for the two sets in the generic form "INOUT". For example, the transformation AO NBO is keyed as "AONBO", while that from NBOs to NLMOs is correspondingly "NBONLMO". The transformations are always specified in the ordered sequence shown above (i.e., "AONBO" is allowed, but "NBOAO" is an unrecognized 'backward' keyword). Keywords are recognized for all possible transformations from the input AOs to other sets (NAO, NHO, NBO, NLMO, MO, or the pre-orthogonal PNAO, PNHO, PNBO, PNLMO sets) in the overall sequence leading to canonical MOs, i.e.,

AO basis: AONAO AONHO AONBO AONLMO AOMO AOPNAO AOPNHO AOPNBO AOPNLMO

and from each of the orthonormal natural localized sets to sets lying to the right in the sequence, i.e.,

NAONHO NAONBO NAONLMO NAOMO

NHONBO NHONLMO NHOMO

NBONLMO NBOMO

NLMOMO

The matrix TIN,OUT for a specified IN OUT transform has rows labelled by the IN set and columns labelled by the OUT set.

One can also print out the matrix representations of the Fock matrix (F), density matrix (DM), or dipole moment matrix (DI) in the input AO set or any of the natural localized sets (NAO, NHO, NBO, or NLMO). The corresponding keyword is constructed by combining the abbreviation (M) for the operator with that for the set (SET) in the generic form "MSET". For example, to print the Fock matrix (F) in the NBO set, use the keyword "FNBO", or to print the dipole matrix in the NLMO basis, use "DINLMO". (For the dipole matrix keywords, all three vector components will be printed.) One can also print out elements of the overlap matrix (S) in the input AO basis or any of the 'pre-orthogonal' sets (PNAO, PNHO, PNBO, or PNLMO), using, e.g., "SPNAO" for the overlap matrix in the PNAO basis. The complete set of allowed keywords for operator matrices is:

FAO FNAO FNHO FNBO FNLMO

DMAO DMNAO DMNHO DMNBO DMNLMO

DIAO DINAO DINHO DINBO DINLMO

SAO SPNAO SPNHO SPNBO SPNLMO

Other desired transformations can be readily obtained from the keyword transformations by matrix multiplication.

Keyword Parameters

Each generic matrix keyword ("MATKEY") can include a parameter that specifies the output operation to be performed on the matrix. The allowed MATKEY parameters are of two types (three for AONAO, NAONBO; see below):
MATKEY=P[c] (print out the matrix in the standard output file, 'c' columns)

MATKEY=W[n] (write out the matrix to disk file n)

The first (P[c]) parameter is used to control output to the standard output file. When the MATKEY keyword is inserted in the $NBO keylist with no parameters, the matrix is by default printed (in its entirety) in the standard output file. Thus, "MATKEY=P" would be equivalent to "MATKEY", with no parameters. The complete 'P[c]' form of the print parameter serves to truncate the printed matrix output to a specified number of columns [c]. For example, to print out only the first 16 columns of a matrix, use the form

     MATKEY=P16         (print 16 columns)

For certain matrices, one can also restrict printing to only the valence (VAL) or Lewis (LEW) columns with modified '[c]' specifiers. For the transformations to MOs, use the form
     MATKEY=PVAL        (print core + valence MO columns only)

where "MATKEY" is AOMO, NAOMO, NHOMO, NBOMO, or NLMOMO (only). This will print out only the occupied MOs and the lowest few unoccupied MOs, e.g., the six lowest virtual MOs of the methylamine example (Section A.3), though not necessarily those with predominant valence character. Similarly, for the transformations to NBOs or NLMOs, use the form
     MATKEY=PLEW        (print Lewis orbital columns only)

where "MATKEY" is AONBO, NHONBO, NAONBO, AONLMO, NAONLMO, NHONLMO, NBONLMO (or AOMO, NAOMO, NHOMO, NBOMO, NLMOMO). This prints out the Lewis NBOs or occupied MOs only, e.g., only the nine occupied NBOs or MOs of the methylamine example. Judicious use of these print parameters keeps printed output within reasonable bounds in calculations with large basis sets.

The second type of MATKEY parameter (W[n]) is used to write the matrix (in its entirety) to a specified disk file [n]. By default, each keyword transformation matrix is associated with a particular logical file number (LFN) in the range 31-49, as shown in the table below:

default default default
matrixLFNmatrixLFNmatrixLFN
___
AONAO33NHONBO49DMNHO49
AONHO35NHONLMO49DMNBO49
AONBO37NHOMO49DMNLMO49
AONLMO39NBONLMO49DIAO49
AOMO40NBOMO49DINAO49
AOPNAO32NLMOMO49DINHO49
AOPNHO34FAO49DINBO49
AOPNBO36FNAO49DINLMO49
AOPNLMO38FNHO49SAO49
NAONHO49FNBO49SPNAO49
NAONBO42FNLMO49SPNHO49
NAONLMO49DMAO41SPNBO49
NAOMO49DMNAO49SPNLMO49
When the "MATKEY=Wn" keyword is inserted in the $NBO keylist with no 'n' specifier, the matrix is by default written out (in its entirety) to this LFN. Thus, "MATKEY=W" is equivalent to "MATKEY=Wn" if "n" is the default LFN for that keyword. Use the "Wn" parameter to direct output to any non-default LFN disk file. For example, the keyword
     AONBO=W22

would write out the AO NBO transformation to LFN = 22 (rather than the default LFN = 37).

The format of the printed output under the print 'P' parameter differs from that written to an external file under the 'W' parameter. The 'P' output (intended for a human reader) includes an identifying label for each row, and gives the numerical entries to somewhat lesser precision (F8.4 format) than the corresponding 'W' output (F15.9 format), which is usually intended as input to another program. Use the "MATKEY=W6" keyword to route the more precise 'W' form of the matrix to the standard output file, LFN 6.

For the AONAO, NAONBO matrices (only), one can also include a read parameter (R),

     AONAO=Rn
     NAONBO=Rn

which causes the matrix to be input to the program from LFN n. This parameter has the effect of 'freezing' orbitals to a set prescribed in the input file (thus bypassing the NBO optimization of these orbitals for the molecular system). For example, the keyword "NAONBO=R44" would have the effect of freezing the NAO NBO transformation coefficients to the form specified in LFN 44 (perhaps written with the "NAONBO=W44" keyword in a previous calculation on isolated molecules, and now to be used in a calculation on a molecular complex). Similarly, the keyword "AONAO=R45" could be used to force the analysis of an excited state to be carried out in terms of the NAOs of the ground state (previously written out with the "AONAO=W45" keyword).

B.2.5 Other Output Control Keywords

The keywords in this group also help to control the I/O produced by a specified set of job options, and thus supplement the keywords of the previous section. However, the keywords of this section 'steer' the flow of information that is routinely produced by the NBO program (or can be passed through from the ESS program) without materially affecting the actual jobs performed by the NBO program. The options associated with each keyword are tabulated below:

KEYWORD OPTION DESCRIPTION

LFNPR=n Set the logical file number (LFN) for NBO program output. The default LFN is n = 6, the usual LFN for output from the ESS program. This option can be used to steer the NBO section of the job output to a desired file. Example:

  LFNPR=25   (re-direct NBO output to LFN 25)


DETAIL Request additional details of the NBO search. This option (primarily for programming and debugging purposes) records details of the NBO loops over atoms and atom pairs, enroute to the final NBOs.

BNDIDX Request print-out of the NAO-Wiberg Bond Index array and related valency indices (Section B.6.5). The elements of this array are the sums of squares of off-diagonal density matrix elements between pairs of atoms in the NAO basis, and are the NAO counterpart of the Wiberg bond index [K. Wiberg, Tetrahedron 24, 1083-1096 (1968)]. (This bond index is routinely used to 'screen' atom pairs for possible bonding in the NBO search, but the values are not printed unless the BNDIDX keyword is activated.)

AOINFO Request writing of information concerning the AO basis set (geometrical positions, orbital exponents, contraction coefficients, etc.) to an external file, LFN 31. This is a portion of the information needed by the ORBPLOT orbital contour plotting programs (cf. "PLOT" keyword below.)

PLOT Request writing of all files required by orbital contour plotting programs ORBPLOT. This activates the AOINFO keyword, as well as all the necessary matrix output keywords (AONBO=W37, etc.) that could be required for ORBPLOT.

ARCHIVE=n Request writing the FILE47 'archive' file to external disk file LFN = n (or, if "=n" is not present, to the default LFN = 47). This file can serve as the input file to run the GENNBO program in stand-alone mode, to repeat the NBO analysis (possibly with new job options) without repeating the calculation of the wavefunction (Section B.7).

NBODAF=n Request writing the NBO direct access file (DAF) to external disk file LFN = n (or, if "=n" is not present, to the default LFN =48).

B.2.6 Print Level Keywords

The keyword "PRINT=n" (n = 0-4) can be used to give convenient, flexible control of all NBO output in terms of a specified print level n. This keyword activates groups of keywords in a heirarchical manner, and thus incrementally increases the volume of output, ranging from no NBO output (PRINT=0) to a considerable volume of detail (PRINT=4). The keywords associated with each print level are tabulated below [default value, PRINT=2]:

print leveladditional output or activated keywords
__
0suppress all output from the NBO program
1activate NPA and NBO keywords
[2]activate BEND, NBOSUM, and E2PERT keywords
3activate NLMO, DIPOLE, and BNDIDX keywords
4activate all(!) keywords
For each print level n, the NBO output will include items activated by the listed keywords, as well as all items from lower print levels.

When additional keywords are included with a "PRINT=n" keyword in the $NBO keylist, the NBO output includes the additional keyword items as well as those implied by the print level. This can be used to tailor the NBO output to virtually any selection of output items. For example, the keylist

     $NBO  PRINT=2  NLMO  FNBO=P  NAOMO=P11  $END

would add to the standard methylamine output file of Section A.3 an NLMO summary table, the Fock matrix in the NBO basis, and the transformation coefficients for the first 11 molecular orbitals in terms of NAOs. Similarly, to produce the NPA listing only, one could use
     $NBO  PRINT=1  SKIPBO  $END

or
     $NBO  PRINT=0  NPA  $END

[There is actually a slight difference between the two examples: The NBOs are determined by default (once the $NBO keylist is encountered), even if all output is suppressed with PRINT=0; in the first example, the keyword SKIPBO bypasses NBO determination, whereas in the second example the NBOs are still determined 'in background.']

B.2.7 Semi-Documented Additional Keywords

Some additional keywords are listed below that may of use to specialists or program developers:

KEYWORD OPTION DESCRIPTION

THRESH=val Set the threshold of orbital occupancy desired for bond orbital selection. If this is not included, the default occupancy [1.90] will be used (or values decreasing from 1.90 to 1.50 by 0.10 steps, if the RESONANCE keyword is included).

PRJTHR=val Set the projection threshold [default 0.20] to determine if a 'new' hybrid orbital has too high overlap with hybrids previously found.

MULAT Print total gross Mulliken populations by atom.

MULORB Print gross Mulliken populations, by orbital and atom.

RPNAO Revises PAO to PNAO transformation matrix by post-multiplying by TRyd and Tred [see the NPA paper: A. E. Reed, R. B. Weinstock, and F. Weinhold, J. Chem. Phys. 83, 735-746 (1985)].

PAOPNAO Input or output of pure AO (PAO) to pre-NAO (PNAO) transformation. The PAOs are AOs of pure angular momentum symmetry (rather than cartesian gaussians). This keyword can be used with read ('R'), write ('W', default LFN 43) or print ('P') parameters.

BOAO Print out the bond-order matrix (Fock-Dirac density matrix) in the basis set of input AOs. This keyword can be used with write ('W', default LFN 49) or print ('P') parameters.

B.3 THE $CORE LIST

In the Lewis structure picture, the inner 'core' electron pairs are pictured as occupying orbitals having essentially isolated atomic orbital character. In NBO parlance, these core orbitals correspond to 1-center unhybridized NAOs of near-maximum occupancy, which are isolated on each center before the main NBO search begins for localized valence electron pairs. A warning message is printed if the occupancy of a presumed closed-shell core NBO falls below 1.9990 electrons (or 0.9990 in the open-shell case), indicative of a possible core-valence mixing effect of physical significance.

[In previous versions of the NBO program, core orbitals having the expected pure atomic character are found in essentially all cases, except where an 'accidental' degeneracy in occupancy of core and valence lone pairs leads to undesirable core-valence mixing; the present version explicitly isolates core pairs as unhybridized NAOs prior to the main NBO search to prevent this unphysical effect.]

The NBO program contains a table giving the nominal number of core orbitals to be isolated on each type of atom (e.g., 1s for first-row atoms Li-Ne, 1s, 2s, 2p for second-row atoms Na-Ar, etc.). At times, however, it is interesting to examine the effect of allowing core orbitals to mix into the bonding hybrids, or to hybridize (polarize) among themselves. This can be accomplished by including a $CORE keylist to specify the number of core orbitals to be isolated on each atomic center, thus modifying the nominal core table. Unlike other NBO keylists, the $CORE list includes only integers (rather than keywords) to specify the core modifications, but the rules are otherwise similar to those for other keylists. The $CORE list (if included) must follow the $NBO keylist and precede the $CHOOSE or $DEL keylists.

The format of the $CORE modification list is:

first line: The keyword "$CORE"

next lines: Pairs of integers, one pair for each center. The first integer indicates the atomic center (in the numbering of the main ESS) and the second is the number of core orbitals to be isolated on that atom. Note that atomic centers not included in the CORE list are assigned default cores.

last line: The keyword "$END", to indicate the end of core input.

The entire list may also be condensed to a single line, but the word "$CORE" must occur as the first word of the line and "$END" as the last word; that is, the core modification keylist cannot continue on a line that contains other keylist information.

The core orbitals are isolated by occupancy, the most occupied NAOs being first selected, and full subshells are isolated at a time. Thus, for example, to select the five orbitals of the n = 1 and n = 2 shells as core orbitals, it would make no difference to select "3" or "4" (instead of "5"), since all three of these choices would specify a core containing a 1s, 2s, and all three 2p orbitals. The $CORE modification list is read only once, and applies to both and spin manifolds in an open-shell calculation.

An example, appropriate for Ni(1)-C(2)-O(3) with the indicated numbering of atoms, is shown below:

     $CORE
       1   5
     $END

This would direct the NBO program to isolate only 5 core orbitals on Nickel (atom 1), rather than the nominal 9 core orbitals. In other words, only 1s, 2s, and 2p orbitals will be considered as core orbitals in the search for NBOs of NiCO, allowing the 3s and 3p orbitals to mix with valence NAOs in bond formation. Since the carbon and oxygen atoms were not included in the modification list, the nominal set of core orbitals (1s only) is isolated on each of these atoms.

[The alternative example

     $CORE   1  0    2  0    3  0   $END

(no cores) would allow all NAOs to be included in the NBO search; this would be equivalent to the default treatment in the earlier version of the program (see Section A.1.5).]

B.4 THE $CHOOSE KEYLIST (DIRECTED NBO SEARCH)

A $CHOOSE keylist requests that the NBO search be directed to find a particular Lewis structure ('resonance structure') chosen by the user. (This is useful for testing the accuracy of alternative resonance structure representations of the wavefunction, relative to the optimal Lewis structure returned in a free NBO search.) In the $CHOOSE list, a resonance structure is specified by indicating where lone pairs and bonds (including multiple bonds) are to be found in the molecule. In some cases, the user may wish to specify only the location of bonds, letting the NBO algorithm seek the best location for lone pairs, but it is usually safest to completely specify the resonance structure, both lone pairs and bonds.

The format of the $CHOOSE list is:

first line: The keyword "$CHOOSE"

next line: The keyword "ALPHA" (only for open-shell wavefunction)

next lines: If one-center ('lone') NBOs are to be searched for, type the keyword "LONE" followed by a list of pairs of numbers, the first number of each pair being the atomic center and the second the number of valence lone pairs on that atom. Terminate the list with "END". (Note that only the occupied valence lone pairs should be entered, since the number of core orbitals on each center is presumed known.)

If two-center ('bond') NBOs are to be searched for, type the keyword "BOND", followed by the list of bond specifiers, and terminated by "END". Each bond specifier is one of the letters

"S" single bond
"D" double bond
"T" triple bond
"Q" quadruple bond

followed by the two atomic centers of the bond (e.g., "D 9 16" for a double bond between atoms 9 and 16).

If three-center NBOs are to be searched for, type the keyword "3CBOND", followed by the list of 3-c bond specifiers, and terminated by "END". Each 3-c bond specifier is again one of the letters "S" (single), "D" (double), "T" (triple), or "Q" (quadruple), followed by three integers for the three atomic centers (e.g., "S 4 8 10" for a single three-center bond 4-8-10). (Note that the 3CBOND keyword of the $NBO keylist is implicitly activated if 3-c bonds are included in a $CHOOSE list.)

next line: The word "END" to signal the end of the spin list.

next line: The keyword "BETA" (for open-shell wavefunctions)

next lines: The input for spin, same format as above. The overall $CHOOSE list should always end with the "$END" keyword.

Two examples will serve to illustrate the $CHOOSE format (each is rather artificial, inasmuch as the specified $CHOOSE structure corresponds to the 'normal' structure that would be found by the NBO program):

The closed-shell H-bonded complex FH...CO, with atom numbering F(1)-H(2)...C(3)-O(4), might be specified as

     $CHOOSE
        LONE  1  3
              3  1
              4  1     END
        BOND  S  1  2
              T  3  4  END
     $END

This would direct the NBO program to search for three lone pairs on atom F(1), one lone pair on atom C(3), one lone pair on atom O(4), one bond between F(1)-H(2), and three bonds between C(3)-O(4).

(2) The open-shell FH...O2 complex, with atom numbering F(1)-H(2)...O(3)-O(4), and with the unpaired electrons on O2 being of spin, might be specified as

     $CHOOSE
       ALPHA
         LONE  1  3
               3  3
               4  3     END
         BOND  S  1  2
               S  3  4  END
       END
       BETA
         LONE  1  3
               3  1
               4  1     END
         BOND  S  1  2
               T  3  4  END
       END
     $END

Note that this example incorporates the idea of "different Lewis structures for different spins," with a distinct pattern of localized 1-c ('lone') and 2-c ('bond') functions for and spin.

As with other keylists, the $CHOOSE keylist can be condensed to a smaller number of lines, as long as no line is shared with another keylist. The order of keywords within the $CHOOSE keylist should be as shown above (i.e., ALPHA before BETA, LONE before BOND, etc.), but the order of entries within a LONE or BOND list is immaterial. A $CORE keylist (if present) must precede the $CHOOSE list.

B.5 THE $DEL KEYLIST (NBO ENERGETIC ANALYSIS)

B.5.1 Introduction to NBO Energetic Analysis

The fourth and final type of keylist is a 'deletions' ($DEL) keylist, to activate NBO energetic analysis. This analysis is performed by (1) deleting specified elements (or blocks of elements) from the NBO Fock matrix, (2) diagonalizing this new Fock matrix to obtain a new density matrix, and (3) passing this density matrix to the SCF routines for a single pass through the SCF energy evaluator. The difference between this 'deletion' energy and the original SCF energy provides a useful measure of the energy contribution of the deleted terms. Since a Fock matrix is required, the energetic analysis is performed for RHF and UHF wavefunctions only.

Input for the NBO energetic analysis is through the $DEL keylist, which specifies the deletions to be performed. Multiple analyses (deletions) can be performed during a single job, with each deletion included in the overall $DEL keylist. The nine distinct types of deletions input are described in Section B.5.2 below.

The deletions keylist begins with the "$DEL" keyword. For the analysis of UHF wavefunctions, the deletions for the and spin manifolds must be separately specified (see Section B.5.3). Otherwise, the input for closed shells RHF and UHF is identical. The input is free format and the input for a single deletion can be spread over as many lines as desired. The desired deletions should be listed one after the other. After the last deletion, the word "$END" signals the end of the keylist.

WARNING

If symmetry is used, one must be careful to only do deletions that will preserve the symmetry of the electronic wavefunction!! If this is not done, the energy of the deletion will be incorrect because the assumption is made in evaluating the energy that the original symmetry still exists, and the variational principle may be violated. (For example, if symmetry is used for ethane, is is permissible to do a "NOSTAR" deletion, but not the deletion of a single C-H antibond.) The remedy is not to use symmetry in the SCF calculation.

In describing the deletion types, use is made of the terms "molecular unit" and "chemical fragment." The NBO program looks at the chemical bonding pattern produced by the bonding NBOs and identifies the groups of atoms that are linked together in distinct "molecular units" (usually synonymous with "molecules" in the chemical sense). The first atom that is not in molecular unit 1 will be in molecular unit 2, and so forth. For example, if the list of atoms is C(1), H(2), F(3), O(4), and bonding NBOs are found between C(1)-O(4) and H(2)-F(3), then molecular unit 1 will be CO and molecular unit 2 will be HF. A "chemical fragment" is taken to be any subset of the atoms, usually (but not necessarily) in the same molecular unit, and usually (but not necessarily) connected by bond NBOs. Typically, a chemical fragment might be specified to be a single atom, the four atoms of a methyl group, or any other 'radical' of a molecular unit, identified by giving the atom numbers of which the fragment consists.

B.5.2 The Nine Deletion Types

The keywords and format to specify each of the nine allowed deletion types are described below:

(1) Deletion of entire orbitals.

This is called for by typing "DELETE", then the number of orbitals to be deleted, then the keyword "ORBITAL" (or "ORBITALS"), then the list of the orbitals to be deleted.

Example:

DELETE  3  ORBITALS  15  18  29

[See also deletion types (4) and (7) for deleting sets of orbitals.]

WARNING

The "single-pass" method of evaluating deletion energies is appropriate only for deletions of low-occupancy (non-Lewis) orbitals, for which the loss of self-consistency in the Coulomb and exchange potentials (due to redistribution of the electron density of deleted orbitals) is small compared to the net energy change of deletion. It is fundamentally erroneous to delete high-occupancy (Lewis) orbitals by this procedure.

(2) Deletion of specific Fock matrix elements.

This is called for by typing "DELETE", then the number of elements to be deleted, then the keyword "ELEMENT" (or "ELEMENTS"), then the list of the elements to be deleted (each as a pair of integers).

Example:

DELETE  3  ELEMENTS  1 15  3 19  23 2

This example would result in the zeroing of the following Fock matrix elements: (1,15), (15,1), (3,19), (19,3), (23,2), (2,23). [See also deletion types (3), (5), (6), (8), (9) for deleting sets of elements.]

(3) Deletion of off-diagonal blocks of the Fock matrix.

Each block is specified by two sets of orbitals, and all Fock matrix elements in common between these two sets are set to zero. This is called for by typing "ZERO", then the number of off-diagonal blocks to be zeroed, and then, for each block, the following:

(1) the dimensions of the block, separated by the word "BY" (e.g., "6 BY 3" if the first set has 6 orbitals and the second set has 3 orbitals);

(2) the list of orbitals in the first set;

(3) the list of orbitals in the second set.

An example is shown below:

     ZERO  2  BLOCKS  2  BY  5
                               3  4
                               9  10  11  14  19
                      3  BY  2
                               1  2  7
                              20  24

This will set the following Fock matrix elements to zero:

(3,9), (3,10), (3,11), (3,14), (3,19), (9,3), (10,3), (11,3), (14,3), (19,3), (4,9), (4,10), (4,11), (4,14), (4,19), (9,4), (10,4), (11,4), (14,4), (19,4), (1,20), (1,24), (2,20), (2,24), (7,20), (7,24) (20,1), (24,1), (20,2), (24,2), (20,7), (24,7)

[Usually, in studying the total delocalization from one molecular unit to another, it is much easier to use deletion type (8) below. Similarly, in studying the total delocalization from one chemical fragment to another, it is easier to use deletion type (9).]

(4) Deletion of all Rydberg and antibond orbitals.

The Rydberg and antibond orbitals are the non-Lewis NBO orbitals that have stars in their labels (RY*, BD*) in the NBO analysis output. To delete all these orbitals, simply enter "NOSTAR". The result of this deletion is the energy of the idealized NBO natural Lewis structure, with all Lewis NBOs doubly occupied. (Unlike other deletions, in which there is a slight loss of variational self-consistency due to the redistributed occupancy of the deleted orbitals, the result of a "NOSTAR" deletion corresponds rigorously to the variational expectation value of the determinant of doubly occupied Lewis NBOs).

(5) Deletion of all vicinal delocalizations.

To delete all Fock matrix elements between Lewis NBOs and the vicinal non-Lewis NBOs, simply enter "NOVIC".

(6) Deletion of all geminal delocalizations.

To delete all Fock matrix elements between Lewis NBOs and the geminal non-Lewis NBOs, simply enter "NOGEM".

(7) Deletion of all starred (antibond/Rydberg) orbitals on a particular molecular unit.

This is called for by typing "DESTAR", then the number of molecular units to be destarred, then the keyword "UNIT" (or "UNITS"), then the list of units.

Example:

DESTAR  2  UNITS  3  4


(8) Zeroing all delocalization from one molecular unit to another.

This is called for by typing "ZERO", then the number of delocalizations to zero, then the keyword "DELOCALIZATION" (can be abbreviated to "DELOC"), and then, for each delocalization, the word "FROM", the number of the donor unit, the word "TO", and the number of the acceptor unit.

Example:

ZERO  2  DELOC  FROM 1 TO 2   FROM 2 TO 1

The above example would zero all intermolecular delocalizations between units 1 and 2 (i.e., both 1 2 and 2 1). The effect is to remove all Fock matrix elements between high-occupancy (core/lone pair/bond) NBOs of the donor unit to the low-occupancy (antibond/Rydberg) NBOs of the acceptor unit. The donor and acceptor units may be the same.

(9) Zeroing all delocalization from one chemical fragment to another.

This is called for by typing "ZERO", then the number of inter-fragment delocalizations to be zeroed, then the words "ATOM BLOCKS", and then, for each delocalization, the following:

(1) the number of atoms in the two fragments, separated by the word "BY" (e.g., "6 BY 3" if the first fragment has 6 atoms and the second has 3 atoms);

(2) the list of atoms in the first fragment;

(3) the list of atoms in the second fragment.

For example, to zero all delocalizations between the fragments defined by atoms (1,2) and by atoms (3,4,5), the $DEL entries would be

     ZERO  2  ATOM BLOCKS
              2  BY  3
                       1  2
                       3  4  5
              3  BY  2
                       3  4  5
                       1  2

In this example, the first block removes the (1,2) (3,4,5) delocalizations, while the second removes the (3,4,5) (1,2) delocalizations.

For additional examples of $DEL input, see Section B.6.10.

B.5.3 Input for UHF Analysis

Deletions of the alpha and beta Fock matrices can be done independently. The deletions are input as above (Section B.5.2) for RHF closed shell, but they must be specified separately for alpha and beta in the UHF case.

The deletion to be done on the alpha Fock matrix must be preceded by the keyword "ALPHA", and the deletion of the beta Fock matrix must be preceded by the keyword "BETA". (Actually, only the first letter "A" or "B" is searched for by the program.) The ALPHA deletion must precede the BETA deletion. The BETA deletion may be the same as the ALPHA deletion, or different.

NOTE: The types of the NBOs often differ from those of the NBOs, so that distinct , deletions lists are generally required. For example, O2 (triplet) has one bond in the system and three in the system, if the unpaired electrons are in the system.

Here are three examples to illustrate UHF open-shell deletions:

Example 1:

     ALPHA  ZERO  1  DELOC  FROM  1  TO  2
     BETA   NOSTAR

Example 2:
     ALPHA  ZERO  1  DELOC  FROM  1  TO  2
     BETA   ZERO  0  DELOC

Example 3:
     ALPHA  DELETE  0  ORBITALS
     BETA   DELETE  1  ORBITAL  8

If no deletion is done, this must be specified using zero (0) with one of the deletion input formats, as shown in Examples 2,3 above.

B.6 NBO KEYLIST ILLUSTRATIONS

B.6.1 Introduction

This section illustrates the output produced by several important keyword options of the NBO keylists ($NBO, $CHOOSE, $DEL, $CORE lists), supplementing the illustrations of Section A.3. Excerpts are provided rather than full output, since, e.g., NPA analysis is unaffected by keywords that modify the NBO search. Keywords of general applicability are illustrated with the methylamine example (RHF/3-21G, Pople-Gordon geometry) of Section A.3, which should be consulted for further information. More specialized keywords (RESONANCE, 3CBOND, etc.) are illustrated with prototype molecules (benzene, diborane, etc.) chosen for the keyword.

Sections B.6.2-B.6.8 illustrate representative examples from the $NBO keyword groups, including NLMO, DIPOLE, BNDIDX, RESONANCE, NOBOND, 3CBOND, and matrix output keywords. Section B.6.9 and B.6.10 similarly illustrate the use of the $CHOOSE and $DEL keylists. Section B.6.11 illustrates the output for open-shell UHF cases, emphasizing features associated with the "different Lewis structures for different spins" representation of and spin manifolds. Section B.6.12 shows the effect of using effective core potentials for Cu2, also illustrating aspects of the inclusion of d functions.

B.6.2 NLMO Keyword

When the NLMO keyword is activated, the program computes the NLMOs and prints out three tables summarizing their form. For the RHF/3-21G methylamine example (cf. Section A.3), the principal NLMO table is shown below:


NATURAL LOCALIZED MOLECULAR ORBITAL (NLMO) ANALYSIS:

Maximum off-diagonal element of DM in NLMO basis:   0.00000

Hybridization/Polarization Analysis of NLMOs in NAO Basis:
NLMO/Occupancy/Percent from Parent NBO/ Atomic Hybrid Contributions
-------------------------------------------------------------------------------
  1. (2.00000)  99.9290%  BD ( 1) C 1- N 2
                          40.039%  C 1 s( 21.54%)p 3.64( 78.46%)
                          59.891%  N 2 s( 30.98%)p 2.23( 69.02%)
                           0.015%  H 3 s(100.00%)
                           0.021%  H 6 s(100.00%)
                           0.021%  H 7 s(100.00%)
  2. (2.00000)  99.9301%  BD ( 1) C 1- H 3
                          59.675%  C 1 s( 25.44%)p 2.93( 74.56%)
                           0.040%  N 2 s(  1.99%)p49.22( 98.01%)
                          40.258%  H 3 s(100.00%)
  3. (2.00000)  99.6996%  BD ( 1) C 1- H 4
                          60.848%  C 1 s( 25.25%)p 2.96( 74.75%)
                           0.093%  N 2 s( 13.08%)p 6.65( 86.92%)
                           0.014%  H 3 s(100.00%)
                          38.861%  H 4 s(100.00%)
                           0.017%  H 5 s(100.00%)
                           0.158%  H 6 s(100.00%)
  4. (2.00000)  99.6996%  BD ( 1) C 1- H 5
                          60.848%  C 1 s( 25.25%)p 2.96( 74.75%)
                           0.093%  N 2 s( 13.08%)p 6.65( 86.92%)
                           0.014%  H 3 s(100.00%)
                           0.017%  H 4 s(100.00%)
                          38.861%  H 5 s(100.00%)
                           0.158%  H 7 s(100.00%)
  5. (2.00000)  99.7206%  BD ( 1) N 2- H 6
                           0.113%  C 1 s(  5.15%)p18.41( 94.85%)
                          67.929%  N 2 s( 25.82%)p 2.87( 74.18%)
                           0.137%  H 4 s(100.00%)
                           0.014%  H 5 s(100.00%)
                          31.793%  H 6 s(100.00%)
  6. (2.00000)  99.7206%  BD ( 1) N 2- H 7
                           0.113%  C 1 s(  5.15%)p18.41( 94.85%)
                          67.929%  N 2 s( 25.82%)p 2.87( 74.18%)
                           0.014%  H 4 s(100.00%)
                           0.137%  H 5 s(100.00%)
                          31.793%  H 7 s(100.00%)
  7. (2.00000)  99.9499%  CR ( 1) C 1
                          99.951%  C 1 s(100.00%)p 0.00(  0.00%)
                           0.013%  H 3 s(100.00%)
                           0.013%  H 4 s(100.00%)
                           0.013%  H 5 s(100.00%)
  8. (2.00000)  99.9763%  CR ( 1) N 2
                           0.010%  C 1 s( 22.30%)p 3.48( 77.70%)
                          99.980%  N 2 s(100.00%)p 0.00(  0.00%)
  9. (2.00000)  98.8972%  LP ( 1) N 2
                           0.440%  C 1 s(  1.05%)p94.15( 98.95%)
                          98.897%  N 2 s( 17.85%)p 4.60( 82.15%)
                           0.489%  H 3 s(100.00%)
                           0.085%  H 4 s(100.00%)
                           0.085%  H 5 s(100.00%)

For each of the nine occuplied NLMOs, the table shows first the NLMO occupancy (necessarily 2.0000 at SCF level, as in the present example), the percentage of the total NLMO composition represented by this parent NBO (usually > 99%), and the label of the 'parent' NBO. Below this, there follows an NAO decomposition of the NLMO, showing the percentage of the NLMO on each atom and the hybrid composition ratios (effective sp character and percentage s- and p-character) of the NAOs. For example, NLMO 9 is the most delocalized NLMO of the table, having only about a 98.9% contribution from the localized N(2) parent lone pair NBO, with 'delocalization tails' composed primarily of contributions (~0.4% each) from C(1) and H(3), and smaller contributions (~0.09%) from H(4) and H(5). This corresponds to what might have been anticipated from the NBO summary table (Section A.3.6) or perturbation theory energy analysis table (Section A.3.5), which showed that the N(2) lone pair, NBO 9, is principally delocalized onto NBO 24, the vicinal C(1)-H(3) antibond [with lesser delocalizations onto NBOs 25, 26, the C(1)-H(4) and C(1)-H(5) antibonds].

B.6.3 DIPOLE Keyword

The DIPOLE keyword activates the NBO/NLMO analysis of the molecular dipole moment, as shown below for the example of RHF/3-21G methylamine (cf. Section A.3):


Dipole moment analysis:

[Print threshold: Net dipole > 0.02 Debye]

                                NLMO bond dipole            NBO bond dipole
                            -------------------------  ------------------------
         Orbital              x     y     z   Total      x     y     z   Total
===============================================================================
  1. BD ( 1) C 1- N 2       -0.76 -0.08  0.00  0.76    -0.76 -0.09  0.00  0.77

  2. BD ( 1) C 1- H 3        0.49  1.90  0.00  1.96     0.50  1.90  0.00  1.97
                                            deloc  14:  0.03 -0.01  0.00  0.03
                                            deloc  25: -0.01  0.00  0.02  0.02
                                            deloc  26: -0.01  0.00 -0.02  0.02

  3. BD ( 1) C 1- H 4        0.67 -0.77 -1.50  1.81     0.71 -0.79 -1.50  1.84
                                            deloc  27: -0.05  0.00  0.00  0.05
                                            deloc  26: -0.02  0.03 -0.03  0.04
                                            deloc  24: -0.01 -0.02  0.00  0.02

  4. BD ( 1) C 1- H 5        0.67 -0.77  1.50  1.81     0.71 -0.79  1.50  1.84
                                            deloc  28: -0.05  0.00  0.00  0.05
                                            deloc  25: -0.02  0.03  0.03  0.04
                                            deloc  24: -0.01 -0.02  0.00  0.02

  5. BD ( 1) N 2- H 6       -0.45  0.44  0.86  1.06    -0.50  0.44  0.89  1.11
                                            deloc  25:  0.06 -0.01 -0.02  0.06

  6. BD ( 1) N 2- H 7       -0.45  0.44 -0.86  1.06    -0.50  0.44 -0.89  1.11
                                            deloc  26:  0.06 -0.01  0.02  0.06

  7. CR ( 1) C 1             0.00  0.00  0.00  0.00     0.00  0.00  0.00  0.00

  8. CR ( 1) N 2             0.00  0.01  0.00  0.01     0.00  0.00  0.00  0.00

  9. LP ( 1) N 2            -0.63 -2.85  0.00  2.91    -0.88 -2.93  0.00  3.06
                                            deloc  24:  0.16  0.09  0.00  0.18
                                            deloc  25:  0.03  0.01  0.01  0.03
                                            deloc  26:  0.03  0.01 -0.01  0.03
                                            deloc  10:  0.02 -0.02  0.00  0.03
                           ----------------------------------------------------
        Net dipole moment   -0.45 -1.67  0.00  1.73    -0.71 -1.82  0.00  1.95
Delocalization correction                               0.27  0.14  0.00  0.30
                           ----------------------------------------------------
      Total dipole moment   -0.45 -1.67  0.00  1.73    -0.45 -1.67  0.00  1.73


The bottom line of the table shows the individual (x,y,z) vector components (-0.45,-1.67,0.00) and length (1.73 D) of the total molecular dipole moment, in the coordinate system of the ESS program. This is decomposed in the main body of the table into the individual contributions of "NLMO bond dipoles" (which strictly add to give the net molecule dipole at the SCF level) and "NBO bond dipoles" (which must be added with their off-diagonal 'deloc' contributions to give the net molecular moment). Each NLMO or NBO bond dipole vector AB is evaluated as

AB = AB(elec) + AB(nuc)

where AB(elec) = 2e<AB | r | AB> is the electronic dipole expectation value for an electron pair in the AB NLMO or NBO, and AB(nuc) is the nuclear contribution of compensating unit positive charges at the positions of nuclei A and B (or both on A for a 1-center NBO). The 'deloc' contributions below each NBO bond dipole show the off-diagonal corrections to an additive bond dipole approximation (i.e., the corrections to localized NBO bond dipoles to get the NLMO bond dipoles) to account for the delocalization from parent NBO i onto other (primarily, non-Lewis) NBOs j; in terms of the expansion of an NLMO in the set {j} of NBOs,

i(NLMO) = ciii + (j)cjij

this correction is (for each electron, or spin)

cji2[<j |  | j>-<i |  | i>] + 2ciicji<i |  | j> + (k)"cjicki<j |  | k>

where the primes on the summation denote omission of terms k equal to i or j. For example, in the above table the largest individual contribution to is from the nitrogen lone pair, table entry 9, which has an NLMO dipole of 2.91 Debye or NBO dipole of 3.06. The latter has also the largest off-diagonal delocalization correction in the table, a 0.18 D correction due to the nN *CH delocalization into the vicinal C(1)-H(3) antibond, NBO 24.

For a post-SCF (correlated) calculation, the dipole table would also include an additional line for the correction due to non-additivity of the NLMO bond dipoles. For an ionic species, there would also be an additional line for the "residual nuclear charge" contribution; here, one must be aware that the dipole moment is calculated with respect to the origin of the cartesian coordinate system chosen by the ESS program (since the dipole moment is origin-dependent in this case).

Note that the amount of detail in the dipole table can be altered by using the "DIPOLE=thr" form of the keyword to alter the threshold dipole ('thr') for printing [default: 0.02 D].

B.6.4 Matrix Output Keywords

Two simple examples will be given to illustrate the formatting of output for operators or basis set transformation matrices using the matrix output keywords of Section B.2.4. For the RHF/3-21G methylamine example of Section A.3, the keyword "FNHO" would cause the Fock matrix in the NHO basis to be printed out. Shown below is a reproduction of the first eight columns (out of 28) of this output:


NHO Fock matrix:

         NHO        1       2       3       4       5       6       7       8
     ---------- ------- ------- ------- ------- ------- ------- ------- -------
  1.  C1 ( N2 ) -0.0208 -0.7203 -0.0571 -0.0665  0.0438  0.0672  0.0438  0.0672
  2.  N2 ( C1 ) -0.7203 -0.3083 -0.0773 -0.0627  0.0835  0.0646  0.0835  0.0646
  3.  C1 ( H3 ) -0.0571 -0.0773 -0.1394 -0.6758  0.0638  0.0746  0.0638  0.0746
  4.  H3 ( C1 ) -0.0665 -0.0627 -0.6758  0.1349  0.0740  0.0672  0.0740  0.0672
  5.  C1 ( H4 )  0.0438  0.0835  0.0638  0.0740 -0.1466 -0.6761 -0.0548 -0.0759
  6.  H4 ( C1 )  0.0672  0.0646  0.0746  0.0672 -0.6761  0.1541 -0.0759 -0.0697
  7.  C1 ( H5 )  0.0438  0.0835  0.0638  0.0740 -0.0548 -0.0759 -0.1466 -0.6761
  8.  H5 ( C1 )  0.0672  0.0646  0.0746  0.0672 -0.0759 -0.0697 -0.6761  0.1541
  9.  N2 ( H6 )  0.0926  0.1499  0.0240 -0.0113  0.0912 -0.0078 -0.0349  0.0134
 10.  H6 ( N2 )  0.1083  0.0826 -0.0010  0.0232 -0.0118 -0.0242  0.0017 -0.0224
 11.  N2 ( H7 )  0.0926  0.1499  0.0240 -0.0113 -0.0349  0.0134  0.0912 -0.0078
 12.  H7 ( N2 )  0.1083  0.0826 -0.0010  0.0232  0.0017 -0.0224 -0.0118 -0.0242
 13.  C1 (cr)    0.3962  0.4168  0.4400  0.3893 -0.4447 -0.3869 -0.4447 -0.3869
 14.  N2 (cr)    0.6147  0.7083  0.0039  0.0249 -0.0130 -0.0251 -0.0130 -0.0251
 15.  N2 (lp)    0.0762  0.0955 -0.1043  0.0254 -0.0386  0.0160 -0.0386  0.0160
 16.  C1 (ry*)  -0.1320  0.0924  0.0705 -0.0815  0.0022 -0.0037  0.0022 -0.0037
 17.  C1 (ry*)   0.0000  0.0000  0.0000  0.0000  0.0719 -0.0910 -0.0719  0.0910
 18.  C1 (ry*)  -0.1023  0.0764 -0.0643  0.0795 -0.0074  0.0105 -0.0074  0.0105
 19.  C1 (ry*)   0.0266 -0.0213  0.0019 -0.0057  0.0667 -0.0788  0.0667 -0.0788
 20.  N2 (ry*)   0.0151 -0.0177 -0.0351 -0.0172 -0.0179 -0.0146 -0.0179 -0.0146
 21.  N2 (ry*)   0.0000  0.0000  0.0000  0.0000 -0.0158 -0.0249  0.0158  0.0249
 22.  N2 (ry*)   0.1799 -0.1440 -0.0064  0.0295  0.0038 -0.0289  0.0038 -0.0289
 23.  N2 (ry*)   0.0183 -0.0136 -0.0051  0.0213  0.0032 -0.0095  0.0032 -0.0095
 24.  H3 (ry*)   0.0253 -0.0038  0.2834 -0.3497 -0.0248  0.0047 -0.0248  0.0047
 25.  H4 (ry*)   0.0223 -0.0071  0.0211 -0.0068 -0.2789  0.3553 -0.0227  0.0069
 26.  H5 (ry*)   0.0223 -0.0071  0.0211 -0.0068 -0.0227  0.0069 -0.2789  0.3553
 27.  H6 (ry*)   0.0124  0.0172 -0.0067  0.0219 -0.0080  0.0097  0.0057 -0.0222
 28.  H7 (ry*)   0.0124  0.0172 -0.0067  0.0219  0.0057 -0.0222 -0.0080  0.0097



The NHO labels on each row identify the atom to which the NHO belongs, and (in parentheses) the atom toward which the hybrid is pointed, if a bond hybrid, or a 1-center label (cr, lp, lp*, or ry*), if a non-bonded hybrid. Thus, "C 1 (N 2)" (NHO 1) is the bonding hybrid on C(1) directed toward N(2), "N 2(lp)" (NBO 15) is a non-bonded (lone pair) hybrid on N(2), etc. This label allows one to find the precise form of the NHO in the main listing of NBOs. The FNHO matrix shows, for example, that the (1,2) Fock matrix element between the directly interacting NHOs forming the C-N bond NBO is -0.7203 a.u., whereas the (1,9) matrix element, between the C(1) hybrid pointing toward N(2) and the N(2) hybrid pointing toward H(6), is 0.0926 a.u.

As a second example, the keyword "NBOMO=PVAL" would print out the core + valence columns of the NBO MO transformation, as reproduced below:


MOs in the NBO basis:

         NBO        1       2       3       4       5       6       7       8
     ---------- ------- ------- ------- ------- ------- ------- ------- -------
  1.  C1 - N2   -0.0661 -0.0574  0.6288 -0.1243  0.0000 -0.3239  0.6816  0.0000
  2.  C1 - H3   -0.0018 -0.0578  0.2061 -0.4716  0.0000  0.7747  0.1386  0.0000
  3.  C1 - H4    0.0023  0.0579 -0.1836  0.4908  0.3813  0.2304  0.3921  0.5940
  4.  C1 - H5    0.0023  0.0579 -0.1836  0.4908 -0.3813  0.2304  0.3921 -0.5940
  5.  N2 - H6    0.0570  0.0000 -0.4742 -0.3567 -0.5937 -0.1954  0.3035  0.3814
  6.  N2 - H7    0.0570  0.0000 -0.4742 -0.3567  0.5937 -0.1954  0.3035 -0.3814
  7.  C1 (cr)   -0.0021  0.9931  0.0692 -0.0920  0.0000  0.0006  0.0019  0.0000
  8.  N2 (cr)    0.9935 -0.0019  0.1048  0.0348  0.0000 -0.0131  0.0022  0.0000
  9.  N2 (lp)    0.0432 -0.0037 -0.1676 -0.1219  0.0000  0.3312  0.1525  0.0000
 10.  C1 (ry*)  -0.0088 -0.0005  0.0114  0.0089  0.0000 -0.0016 -0.0086  0.0000
 11.  C1 (ry*)   0.0000  0.0000  0.0000  0.0000  0.0109  0.0000  0.0000 -0.0070
 12.  C1 (ry*)  -0.0063  0.0001 -0.0050 -0.0035  0.0000 -0.0030  0.0026  0.0000
 13.  C1 (ry*)   0.0020 -0.0002 -0.0003 -0.0003  0.0000 -0.0009  0.0002  0.0000
 14.  N2 (ry*)  -0.0041 -0.0003 -0.0006  0.0016  0.0000  0.0192  0.0107  0.0000
 15.  N2 (ry*)   0.0000  0.0000  0.0000  0.0000  0.0080  0.0000  0.0000  0.0124
 16.  N2 (ry*)   0.0035 -0.0060 -0.0039  0.0102  0.0000 -0.0023  0.0040  0.0000
 17.  N2 (ry*)  -0.0018  0.0023 -0.0007  0.0013  0.0000 -0.0007  0.0005  0.0000
 18.  H3 (ry*)  -0.0008 -0.0094 -0.0103  0.0146  0.0000  0.0017 -0.0021  0.0000
 19.  H4 (ry*)  -0.0008 -0.0100 -0.0061  0.0119  0.0062  0.0004 -0.0054 -0.0098
 20.  H5 (ry*)  -0.0008 -0.0100 -0.0061  0.0119 -0.0062  0.0004 -0.0054  0.0098
 21.  H6 (ry*)  -0.0052 -0.0013 -0.0147 -0.0018 -0.0027 -0.0016 -0.0097 -0.0159
 22.  H7 (ry*)  -0.0052 -0.0013 -0.0147 -0.0018  0.0027 -0.0016 -0.0097  0.0159
 23.  C1 - N2 * -0.0019 -0.0035 -0.0026  0.0025  0.0000  0.0043  0.0049  0.0000
 24.  C1 - H3 * -0.0013 -0.0024  0.0059 -0.0018  0.0000 -0.0349 -0.0139  0.0000
 25.  C1 - H4 *  0.0009  0.0028 -0.0138  0.0033 -0.0408 -0.0188  0.0061  0.0148
 26.  C1 - H5 *  0.0009  0.0028 -0.0138  0.0033  0.0408 -0.0188  0.0061 -0.0148
 27.  N2 - H6 * -0.0010  0.0051 -0.0047  0.0182  0.0179  0.0122  0.0154  0.0322
 28.  N2 - H7 * -0.0010  0.0051 -0.0047  0.0182 -0.0179  0.0122  0.0154 -0.0322

         NBO        9      10      11      12      13      14      15
     ---------- ------- ------- ------- ------- ------- ------- -------
  1.  C1 - N2    0.1062 -0.0143  0.0006  0.0000  0.0049  0.0000 -0.0061
  2.  C1 - H3   -0.3343 -0.0044  0.0015  0.0000  0.0007  0.0000 -0.0080
  3.  C1 - H4   -0.1186 -0.0186  0.0103  0.0258 -0.0048 -0.0272 -0.0104
  4.  C1 - H5   -0.1186 -0.0186  0.0103 -0.0258 -0.0048  0.0272 -0.0104
  5.  N2 - H6   -0.1167 -0.0024 -0.0145 -0.0293 -0.0162 -0.0253  0.0040
  6.  N2 - H7   -0.1167 -0.0024 -0.0145  0.0293 -0.0162  0.0253  0.0040
  7.  C1 (cr)    0.0037 -0.0134 -0.0082  0.0000  0.0008  0.0000 -0.0008
  8.  N2 (cr)   -0.0189 -0.0055  0.0030  0.0000 -0.0026  0.0000  0.0035
  9.  N2 (lp)    0.9007 -0.0144  0.0055  0.0000  0.0925  0.0000  0.0130
 10.  C1 (ry*)  -0.0128 -0.0993  0.0553  0.0000  0.0536  0.0000  0.3301
 11.  C1 (ry*)   0.0000  0.0000  0.0000  0.0836  0.0000  0.1845  0.0000
 12.  C1 (ry*)  -0.0039 -0.0612  0.0748  0.0000 -0.1160  0.0000  0.1213
 13.  C1 (ry*)  -0.0018  0.0936  0.0192  0.0000  0.1022  0.0000 -0.1516
 14.  N2 (ry*)  -0.0086 -0.0232  0.0071  0.0000 -0.0461  0.0000 -0.0178
 15.  N2 (ry*)   0.0000  0.0000  0.0000  0.0176  0.0000 -0.0856  0.0000
 16.  N2 (ry*)   0.0006  0.0395 -0.0836  0.0000  0.0221  0.0000 -0.1565
 17.  N2 (ry*)   0.0003  0.0614 -0.0222  0.0000  0.0114  0.0000  0.0584
 18.  H3 (ry*)  -0.0218 -0.2483 -0.2232  0.0000  0.4827  0.0000  0.0001
 19.  H4 (ry*)   0.0060 -0.1973 -0.3224 -0.3372 -0.2069 -0.2151 -0.0483
 20.  H5 (ry*)   0.0060 -0.1973 -0.3224  0.3372 -0.2069  0.2151 -0.0483
 21.  H6 (ry*)   0.0027 -0.2869  0.2132  0.2297 -0.0372 -0.3543 -0.1737
 22.  H7 (ry*)   0.0027 -0.2869  0.2132 -0.2297 -0.0372  0.3543 -0.1737
 23.  C1 - N2 * -0.0031 -0.2357  0.2598  0.0000 -0.1096  0.0000  0.8051
 24.  C1 - H3 * -0.0799 -0.3214 -0.2654  0.0000  0.6687  0.0000  0.1133
 25.  C1 - H4 * -0.0369  0.2559  0.3890  0.4699  0.2968  0.3193 -0.0477
 26.  C1 - H5 * -0.0369  0.2559  0.3890 -0.4699  0.2968 -0.3193 -0.0477
 27.  N2 - H6 * -0.0031  0.4339 -0.3112 -0.3280  0.0474  0.4519  0.2168
 28.  N2 - H7 * -0.0031  0.4339 -0.3112  0.3280  0.0474 -0.4519  0.2168



In this transformation matrix, rows correspond to NBOs and columns to MOs (in the ordering used elesewhere in the program), and each basis NBO is further identified with a row label. The print parameter "PVAL" specified that only 15 MOs (the number of core + valence orbitals) should be printed, corresponding to the nine occupied MOs 1-9 and the lowest six virtual MOs 10-15. The matrix allows one to see the composition of each canonical MO in terms of localized bond NBOs. For example, MOs 5 and 8 can be approximately described as

5 -0.594(N2H6 - N2H7) + 0.381(C1H4 - C1H5)

8 0.381(N2H6 - N2H7) + 0.594(C1H4 - C1H5)

whereas 6 is primarily the C-H(3) NBO and 9 the N lone pair NBO.

B.6.5 BNDIDX Keyword

The BNDIDX keyword activates the printing of several types of 'bond order' and valency indices, based on different assumptions and formulas, but all having some connection to the NAO/NBO/NLMO formalism. We illustrate these bond order tables for the example of RHF/3-21G methylamine (Section A.3).

The first segment of BNDIDX output shows the Wiberg bond index (the sum of squares of off-diagonal density matrix elements between atoms), as formulated in terms of the NAO basis set:


Wiberg bond index matrix in the NAO basis:

    Atom    1       2       3       4       5       6       7
    ---- ------  ------  ------  ------  ------  ------  ------
  1.  C  0.0000  0.9964  0.9472  0.9394  0.9394  0.0020  0.0020
  2.  N  0.9964  0.0000  0.0208  0.0052  0.0052  0.8611  0.8611
  3.  H  0.9472  0.0208  0.0000  0.0004  0.0004  0.0002  0.0002
  4.  H  0.9394  0.0052  0.0004  0.0000  0.0009  0.0079  0.0005
  5.  H  0.9394  0.0052  0.0004  0.0009  0.0000  0.0005  0.0079
  6.  H  0.0020  0.8611  0.0002  0.0079  0.0005  0.0000  0.0003
  7.  H  0.0020  0.8611  0.0002  0.0005  0.0079  0.0003  0.0000


Wiberg bond index, Totals by atom:

    Atom    1
    ---- ------
  1.  C  3.8265
  2.  N  2.7499
  3.  H  0.9691
  4.  H  0.9544
  5.  H  0.9544
  6.  H  0.8720
  7.  H  0.8720



This index is intrinsically a positive quantity, making no distinction between net bonding or antibonding character of the density matrix elements.

The next segment tabulates the "overlap-weighted NAO bond order," as shown below:


Atom-atom overlap-weighted NAO bond order:

    Atom    1       2       3       4       5       6       7
    ---- ------  ------  ------  ------  ------  ------  ------
  1.  C  0.0000  0.7815  0.7614  0.7633  0.7633 -0.0103 -0.0103
  2.  N  0.7815  0.0000 -0.0225 -0.0097 -0.0097  0.6688  0.6688
  3.  H  0.7614 -0.0225  0.0000 -0.0039 -0.0039 -0.0019 -0.0019
  4.  H  0.7633 -0.0097 -0.0039  0.0000  0.0024  0.0038 -0.0032
  5.  H  0.7633 -0.0097 -0.0039  0.0024  0.0000 -0.0032  0.0038
  6.  H -0.0103  0.6688 -0.0019  0.0038 -0.0032  0.0000 -0.0069
  7.  H -0.0103  0.6688 -0.0019 -0.0032  0.0038 -0.0069  0.0000


Atom-atom overlap-weighted NAO bond order, Totals by atom:

    Atom    1
    ---- ------
  1.  C  3.0488
  2.  N  2.0772
  3.  H  0.7273
  4.  H  0.7527
  5.  H  0.7527
  6.  H  0.6503
  7.  H  0.6503



This index corresponds to a sum of off-diagonal NAO density matrix elements between atoms, each multiplied by the corresponding PNAO overlap integral.

Another type of BNDIDX output appears if the NLMO keyword is included, summarizing a formal "NLMO/NPA bond order" that can be associated with each NLMO:


Individual LMO bond orders greater than 0.002 in magnitude,
 with the overlap between the hybrids in the NLMO given:

Atom I / Atom J / NLMO / Bond Order / Hybrid Overlap /
   1       2       1     0.8007741       0.7314361
   1       2       5     0.0022694       0.1796696
   1       2       6     0.0022694       0.1796696
   1       2       9     0.0088061       0.3053730
   1       3       2     0.8051647       0.7862263
   1       3       9    -0.0088061      -0.5762575
   1       4       3     0.7772179       0.7874312
   1       4       5    -0.0022694      -0.5396947
   1       5       4     0.7772179       0.7874312
   1       5       6    -0.0022694      -0.5396947
   1       6       3    -0.0031652      -0.0920524
   1       6       5     0.0022694       0.0852070
   1       7       4    -0.0031652      -0.0920524
   1       7       6     0.0022694       0.0852070
   2       3       9    -0.0097841      -0.0930204
   2       4       5    -0.0027437      -0.0701717
   2       5       6    -0.0027437      -0.0701717
   2       6       5     0.6358512       0.7286061
   2       7       6     0.6358512       0.7286061
   4       6       3     0.0031652       0.0429202
   4       6       5     0.0027437       0.0399352
   5       7       4     0.0031652       0.0429202
   5       7       6     0.0027437       0.0399352


This NLMO bond order is calculated by the method described by A. E. Reed and P. v.R. Schleyer [Inorg. Chem. 27, 3969-3987 (1988); J. Am. Chem. Soc. (to be published)], based on the shared occupancies and hybrid overlaps (last column) of NAOs composing the NLMO. In the above table, for example, NLMO 1 occurs only in the first line, contributing a bond of formal order 0.801 between C(1) and N(2), whereas NLMO 9 (the nitrogen lone pair) contributes a slight strengthening (+0.0088) of the C(1)-N(2) bond, a weakening (-0.0088) of the vicinal C(1)-H(3) bond, and a slight negative bond order (-0.0098) between atoms N(2), H(3).

The NLMO bond order contributions are then summed for each atom pair to give the net NLMO/NPA bond orders shown below:


Atom-Atom Net Linear NLMO/NPA Bond Orders:

    Atom    1       2       3       4       5       6       7
    ---- ------  ------  ------  ------  ------  ------  ------
  1.  C  0.0000  0.8174  0.7960  0.7732  0.7732 -0.0013 -0.0013
  2.  N  0.8174  0.0000 -0.0104 -0.0030 -0.0030  0.6337  0.6337
  3.  H  0.7960 -0.0104  0.0000 -0.0020 -0.0020  0.0001  0.0001
  4.  H  0.7732 -0.0030 -0.0020  0.0000  0.0020  0.0062  0.0000
  5.  H  0.7732 -0.0030 -0.0020  0.0020  0.0000  0.0000  0.0062
  6.  H -0.0013  0.6337  0.0001  0.0062  0.0000  0.0000 -0.0001
  7.  H -0.0013  0.6337  0.0001  0.0000  0.0062 -0.0001  0.0000


For example, the table attributes a formal bond order of 0.8174 to the C(1)-N(2) bond of methylamine, the highest bond order in this molecule. (The higher value for C(1)-H(3) than for the other two CH bonds reflects an unsatisfactory aspect of this method of assessing bond order.)

These bond indices are based on different assumptions, and each has certain advantages and disadvantages. Caveat emptor!

B.6.6 RESONANCE Keyword: Benzene

When NBO analysis is performed on a wavefunction that cannot be satisfactorily localized [i.e., in which one or more NBOs of the natural Lewis structure fail to achieve the threshold occupancy (1.90) for a satisfactory 'pair'], the NBO program aborts with a message indicating that the wavefunction is unsuitable for localized analysis. For example, when benzene (RHF/STO-3G level, idealized Pople-Gordon geometry) is treated by the NBO program in default mode, one obtains the output:


NATURAL BOND ORBITAL ANALYSIS:

                      Occupancies       Lewis Structure    Low   High
          Occ.    -------------------  -----------------   occ   occ
 Cycle   Thresh.   Lewis   Non-Lewis     CR  BD  3C  LP    (L)   (NL)   Dev
=============================================================================
  1(1)    1.90    38.87476   3.12524      6  12   0   3     3      3    0.44
  2(2)    1.90    38.87476   3.12524      6  12   0   3     3      3    0.44
-----------------------------------------------------------------------------

Only strongly delocalized resonance structures can be found.
The default procedure is to abort the NBO search.



When the RESONANCE keyword is activated for this same example, one obtains a summary of NBO search cycles as shown below:


NATURAL BOND ORBITAL ANALYSIS:

                      Occupancies       Lewis Structure    Low   High
          Occ.    -------------------  -----------------   occ   occ
 Cycle   Thresh.   Lewis   Non-Lewis     CR  BD  3C  LP    (L)   (NL)   Dev
=============================================================================
  1(1)    1.90    38.87476   3.12524      6  12   0   3     3      3    0.44
  2(2)    1.90    38.87476   3.12524      6  12   0   3     3      3    0.44
  3(1)    1.80    38.87476   3.12524      6  12   0   3     3      3    0.44
  4(2)    1.80    38.87476   3.12524      6  12   0   3     3      3    0.44
  5(1)    1.70    38.87476   3.12524      6  12   0   3     3      3    0.44
  6(2)    1.70    38.87476   3.12524      6  12   0   3     3      3    0.44
  7(1)    1.60    40.87476   1.12524      6  15   0   0     0      3    0.44
  8(2)    1.60    40.87476   1.12524      6  15   0   0     0      3    0.44
  9(1)    1.50    40.87476   1.12524      6  15   0   0     0      3    0.44
 10(2)    1.50    40.87476   1.12524      6  15   0   0     0      3    0.44
 11(1)    1.60    40.87476   1.12524      6  15   0   0     0      3    0.44
-----------------------------------------------------------------------------

Structure accepted: RESONANCE keyword permits strongly delocalized structure



As this table shows, the occupancy threshold was successively lowered from 1.90 to 1.50 by 0.1e for each cycle, and the NBO search repeated. In this case, the 'best' Lewis structure (lowest overall non-Lewis occupancy, 1.12524e) was found in cycle 7, with occupancy threshold 1.60e. The NBO program therefore reset the threshold to this value and calculated the set of NBOs corresponding to this 'best' Lewis structure, as shown below:


    (Occupancy)   Bond orbital/ Coefficients/ Hybrids
-------------------------------------------------------------------------------
  1. (1.98940) BD ( 1) C 1- C 2
               ( 50.00%)   0.7071* C 1 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851 -0.8109  0.0097  0.0000
               ( 50.00%)   0.7071* C 2 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851  0.8109  0.0097  0.0000
  2. (1.98940) BD ( 1) C 1- C 6
               ( 50.00%)   0.7071* C 1 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851  0.4138 -0.6974  0.0000
               ( 50.00%)   0.7071* C 6 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851 -0.3971  0.7071  0.0000
  3. (1.66667) BD ( 2) C 1- C 6
               ( 50.00%)   0.7071* C 1 s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  1.0000
               ( 50.00%)   0.7071* C 6 s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  1.0000
  4. (1.98977) BD ( 1) C 1- H 7
               ( 51.73%)   0.7193* C 1 s( 31.53%)p 2.17( 68.47%)
                                        0.0000  0.5615  0.4137  0.7166  0.0000
               ( 48.27%)   0.6947* H 7 s(100.00%)
                                        1.0000
  5. (1.98940) BD ( 1) C 2- C 3
               ( 50.00%)   0.7071* C 2 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851 -0.4138 -0.6974  0.0000
               ( 50.00%)   0.7071* C 3 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851  0.3971  0.7071  0.0000
  6. (1.66667) BD ( 2) C 2- C 3
               ( 50.00%)   0.7071* C 2 s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  1.0000
               ( 50.00%)   0.7071* C 3 s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  1.0000
  7. (1.98977) BD ( 1) C 2- H 8
               ( 51.73%)   0.7193* C 2 s( 31.53%)p 2.17( 68.47%)
                                        0.0000  0.5615 -0.4137  0.7166  0.0000
               ( 48.27%)   0.6947* H 8 s(100.00%)
                                        1.0000
  8. (1.98940) BD ( 1) C 3- C 4
               ( 50.00%)   0.7071* C 3 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851  0.3971 -0.7071  0.0000
               ( 50.00%)   0.7071* C 4 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851 -0.4138  0.6974  0.0000
  9. (1.98977) BD ( 1) C 3- H 9
               ( 51.73%)   0.7193* C 3 s( 31.53%)p 2.17( 68.47%)
                                        0.0000  0.5615 -0.8275  0.0000  0.0000
               ( 48.27%)   0.6947* H 9 s(100.00%)
                                        1.0000
 10. (1.66667) BD ( 2) C 4- C 5
               ( 50.00%)   0.7071* C 4 s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  1.0000
               ( 50.00%)   0.7071* C 5 s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  1.0000
 11. (1.98940) BD ( 1) C 4- C 5
               ( 50.00%)   0.7071* C 4 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851  0.8109 -0.0097  0.0000
               ( 50.00%)   0.7071* C 5 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851 -0.8109 -0.0097  0.0000
 12. (1.98977) BD ( 1) C 4- H10
               ( 51.73%)   0.7193* C 4 s( 31.53%)p 2.17( 68.47%)
                                        0.0000  0.5615 -0.4137 -0.7166  0.0000
               ( 48.27%)   0.6947* H10 s(100.00%)
                                        1.0000
 13. (1.98940) BD ( 1) C 5- C 6
               ( 50.00%)   0.7071* C 5 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851  0.4138  0.6974  0.0000
               ( 50.00%)   0.7071* C 6 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851 -0.3971 -0.7071  0.0000
 14. (1.98977) BD ( 1) C 5- H11
               ( 51.73%)   0.7193* C 5 s( 31.53%)p 2.17( 68.47%)
                                        0.0000  0.5615  0.4137 -0.7166  0.0000
               ( 48.27%)   0.6947* H11 s(100.00%)
                                        1.0000
 15. (1.98977) BD ( 1) C 6- H12
               ( 51.73%)   0.7193* C 6 s( 31.53%)p 2.17( 68.47%)
                                        0.0000  0.5615  0.8275  0.0000  0.0000
               ( 48.27%)   0.6947* H12 s(100.00%)
                                        1.0000
 16. (1.99995) CR ( 1) C 1             s(100.00%)
                                        1.0000  0.0000  0.0000  0.0000  0.0000
 17. (1.99995) CR ( 1) C 2             s(100.00%)
                                        1.0000  0.0000  0.0000  0.0000  0.0000
 18. (1.99995) CR ( 1) C 3             s(100.00%)
                                        1.0000  0.0000 -0.0001  0.0000  0.0000
 19. (1.99995) CR ( 1) C 4             s(100.00%)
                                        1.0000  0.0000  0.0000  0.0000  0.0000
 20. (1.99995) CR ( 1) C 5             s(100.00%)
                                        1.0000  0.0000  0.0000  0.0000  0.0000
 21. (1.99995) CR ( 1) C 6             s(100.00%)
                                        1.0000  0.0000  0.0001  0.0000  0.0000
 22. (0.01077) BD*( 1) C 1- C 2
               ( 50.00%)   0.7071* C 1 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851 -0.8109  0.0097  0.0000
               ( 50.00%)  -0.7071* C 2 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851  0.8109  0.0097  0.0000
 23. (0.01077) BD*( 1) C 1- C 6
               ( 50.00%)   0.7071* C 1 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851  0.4138 -0.6974  0.0000
               ( 50.00%)  -0.7071* C 6 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851 -0.3971  0.7071  0.0000
 24. (0.33333) BD*( 2) C 1- C 6
               ( 50.00%)   0.7071* C 1 s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  1.0000
               ( 50.00%)  -0.7071* C 6 s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  1.0000
 25. (0.01011) BD*( 1) C 1- H 7
               ( 48.27%)   0.6947* C 1 s( 31.53%)p 2.17( 68.47%)
                                        0.0000 -0.5615 -0.4137 -0.7166  0.0000
               ( 51.73%)  -0.7193* H 7 s(100.00%)
                                       -1.0000
 26. (0.01077) BD*( 1) C 2- C 3
               ( 50.00%)   0.7071* C 2 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851 -0.4138 -0.6974  0.0000
               ( 50.00%)  -0.7071* C 3 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851  0.3971  0.7071  0.0000
 27. (0.33333) BD*( 2) C 2- C 3
               ( 50.00%)   0.7071* C 2 s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  1.0000
               ( 50.00%)  -0.7071* C 3 s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  1.0000
 28. (0.01011) BD*( 1) C 2- H 8
               ( 48.27%)   0.6947* C 2 s( 31.53%)p 2.17( 68.47%)
                                        0.0000 -0.5615  0.4137 -0.7166  0.0000
               ( 51.73%)  -0.7193* H 8 s(100.00%)
                                       -1.0000
 29. (0.01077) BD*( 1) C 3- C 4
               ( 50.00%)   0.7071* C 3 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851  0.3971 -0.7071  0.0000
               ( 50.00%)  -0.7071* C 4 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851 -0.4138  0.6974  0.0000
 30. (0.01011) BD*( 1) C 3- H 9
               ( 48.27%)   0.6947* C 3 s( 31.53%)p 2.17( 68.47%)
                                        0.0000 -0.5615  0.8275  0.0000  0.0000
               ( 51.73%)  -0.7193* H 9 s(100.00%)
                                       -1.0000
 31. (0.33333) BD*( 2) C 4- C 5
               ( 50.00%)   0.7071* C 4 s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  1.0000
               ( 50.00%)  -0.7071* C 5 s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  1.0000
 32. (0.01077) BD*( 1) C 4- C 5
               ( 50.00%)   0.7071* C 4 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851  0.8109 -0.0097  0.0000
               ( 50.00%)  -0.7071* C 5 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851 -0.8109 -0.0097  0.0000
 33. (0.01011) BD*( 1) C 4- H10
               ( 48.27%)   0.6947* C 4 s( 31.53%)p 2.17( 68.47%)
                                        0.0000 -0.5615  0.4137  0.7166  0.0000
               ( 51.73%)  -0.7193* H10 s(100.00%)
                                       -1.0000
 34. (0.01077) BD*( 1) C 5- C 6
               ( 50.00%)   0.7071* C 5 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851  0.4138  0.6974  0.0000
               ( 50.00%)  -0.7071* C 6 s( 34.23%)p 1.92( 65.77%)
                                        0.0000  0.5851 -0.3971 -0.7071  0.0000
 35. (0.01011) BD*( 1) C 5- H11
               ( 48.27%)   0.6947* C 5 s( 31.53%)p 2.17( 68.47%)
                                        0.0000 -0.5615 -0.4137  0.7166  0.0000
               ( 51.73%)  -0.7193* H11 s(100.00%)
                                       -1.0000
 36. (0.01011) BD*( 1) C 6- H12
               ( 48.27%)   0.6947* C 6 s( 31.53%)p 2.17( 68.47%)
                                        0.0000 -0.5615 -0.8275  0.0000  0.0000
               ( 51.73%)  -0.7193* H12 s(100.00%)
                                       -1.0000



As one can see from this table, the set of NBOs obtained by the program corresponds to one of the two equivalent Kekulée structures, with reasonably well localized CC and CH NBOs (1.98940 and 1.98977 electrons, respectively), but three severely depleted CC bonds (1.66667e) and corresponding high occupancy *CC antibonds (0.33333e). Other sections of the NBO output (not shown) will similarly exhibit the sharp distinctions between benzene and more 'typical' non-aromatic compounds.

WARNING

If you attempt to analyze an open-shell wavefunction with an ESS method that produces only the "spinless" (spin-averaged) density matrix, rather than the separate density matrices for and spin, the job will likely abort, as in the default benzene example. However, you should not use the RESONANCE keyword to bypass this abort! NBO analysis of an open-shell spinless density matrix is a fundamental misuse of the program.

B.6.7 NOBOND Keyword

The NOBOND keyword forces the NBO program to analyze the wavefunction in terms of 1-center functions only, thus forcing a description of the bonding in terms of atomic or ionic hybrids. The modifications of NBO output that result from activating this keyword can be illustrated for the HF molecule (RHF/3-21G//RHF/3-21G level). This molecule might be described in terms of a polar covalent H-F bond or in terms of ionic H+ F- interactions.

The default NBO analysis of this example is shown below:


NATURAL BOND ORBITAL ANALYSIS:

                      Occupancies       Lewis Structure    Low   High
          Occ.    -------------------  -----------------   occ   occ
 Cycle   Thresh.   Lewis   Non-Lewis     CR  BD  3C  LP    (L)   (NL)   Dev
=============================================================================
  1(1)    1.90     9.99942   0.00058      1   1   0   3     0      0    0.00
-----------------------------------------------------------------------------

Structure accepted: No low occupancy Lewis orbitals

--------------------------------------------------------
  Core                      1.99994 ( 99.997% of   2)
  Valence Lewis             7.99948 ( 99.994% of   8)
 ==================       ============================
  Total Lewis               9.99942 ( 99.994% of  10)
 -----------------------------------------------------
  Valence non-Lewis         0.00000 (  0.000% of  10)
  Rydberg non-Lewis         0.00058 (  0.006% of  10)
 ==================       ============================
  Total non-Lewis           0.00058 (  0.006% of  10)
--------------------------------------------------------


    (Occupancy)   Bond orbital/ Coefficients/ Hybrids
-------------------------------------------------------------------------------
  1. (2.00000) BD ( 1) F 1- H 2
               ( 75.22%)   0.8673* F 1 s( 16.31%)p 5.13( 83.69%)
                                        0.0000  0.4036  0.0158  0.0000  0.0000
                                        0.0000  0.0000  0.9148  0.0001
               ( 24.78%)   0.4978* H 2 s(100.00%)
                                        1.0000  0.0000
  2. (1.99994) CR ( 1) F 1             s(100.00%)
                                        1.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0000  0.0000
  3. (2.00000) LP ( 1) F 1             s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  1.0000 -0.0013
                                        0.0000  0.0000  0.0000  0.0000
  4. (2.00000) LP ( 2) F 1             s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        1.0000 -0.0013  0.0000  0.0000
  5. (1.99948) LP ( 3) F 1             s( 83.71%)p 0.19( 16.29%)
                                        0.0000  0.9149 -0.0052  0.0000  0.0000
                                        0.0000  0.0000 -0.4036 -0.0062
  6. (0.00002) RY*( 1) F 1             s(  0.00%)p 1.00(100.00%)
  7. (0.00000) RY*( 2) F 1             s(  0.00%)p 1.00(100.00%)
  8. (0.00000) RY*( 3) F 1             s(  0.00%)p 1.00(100.00%)
  9. (0.00000) RY*( 4) F 1             s( 99.97%)p 0.00(  0.03%)
 10. (0.00056) RY*( 1) H 2             s(100.00%)
                                        0.0000  1.0000
 11. (0.00000) BD*( 1) F 1- H 2
               ( 24.78%)   0.4978* F 1 s( 16.31%)p 5.13( 83.69%)
               ( 75.22%)  -0.8673* H 2 s(100.00%)



As the output shows, default NBO analysis leads to a polar covalent description of HF. The HF bond, NBO 1, is formed from a p-rich (sp5.13) hybrid on F and the 1s AO on H, strongly polarized (about 75.22%) toward F. This provides a satisfactory Lewis structure, describing 99.994% of the total electron density.

When the NOBOND keyword is activated to bypass the search for 2-center bonds, the NBO output is modified as shown below:



       /NOBOND / : No two-center NBO search


NATURAL BOND ORBITAL ANALYSIS:

                      Occupancies       Lewis Structure    Low   High
          Occ.    -------------------  -----------------   occ   occ
 Cycle   Thresh.   Lewis   Non-Lewis     CR  BD  3C  LP    (L)   (NL)   Dev
=============================================================================
  1(1)    1.00     9.50378   0.49622      1   0   0   4     0      1    0.75
-----------------------------------------------------------------------------

Structure accepted: Search for bonds prevented by NOBOND keyword

--------------------------------------------------------
  Core                      1.99993 ( 99.997% of   2)
  Valence Lewis             7.50385 ( 93.798% of   8)
 ==================       ============================
  Total Lewis               9.50378 ( 95.038% of  10)
 -----------------------------------------------------
  Valence non-Lewis         0.49564 (  4.956% of  10)
  Rydberg non-Lewis         0.00058 (  0.006% of  10)
 ==================       ============================
  Total non-Lewis           0.49622 (  4.962% of  10)
--------------------------------------------------------


    (Occupancy)   Bond orbital/ Coefficients/ Hybrids
-------------------------------------------------------------------------------
  1. (1.99993) CR ( 1) F 1             s(100.00%)p 0.00(  0.00%)
                                        1.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0001  0.0000
  2. (2.00000) LP ( 1) F 1             s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  1.0000 -0.0013
                                        0.0000  0.0000  0.0000  0.0000
  3. (2.00000) LP ( 2) F 1             s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        1.0000 -0.0013  0.0000  0.0000
  4. (1.99948) LP ( 3) F 1             s( 83.71%)p 0.19( 16.29%)
                                        0.0000  0.9149 -0.0052  0.0000  0.0000
                                        0.0000  0.0000 -0.4036 -0.0062
  5. (1.50436) LP ( 4) F 1             s( 16.31%)p 5.13( 83.69%)
                                       -0.0001  0.4036  0.0158  0.0000  0.0000
                                        0.0000  0.0000  0.9148  0.0001
  6. (0.49564) LP*( 1) H 2             s(100.00%)
                                        1.0000  0.0000
  7. (0.00002) RY*( 1) F 1             s(  0.00%)p 1.00(100.00%)
  8. (0.00000) RY*( 2) F 1             s(  0.00%)p 1.00(100.00%)
  9. (0.00000) RY*( 3) F 1             s(  0.00%)p 1.00(100.00%)
 10. (0.00000) RY*( 4) F 1             s( 99.97%)p 0.00(  0.03%)
 11. (0.00056) RY*( 1) H 2             s(100.00%)
                                        0.0000  1.0000



In this case, the NBO output indicates a rather poor Lewis structure (4.962% non-Lewis density), with a severely depleted F- lone pair (NBO 5, the sp5.13 hybrid) and significant occupancy (about 0.496e) in the 'empty' H+ 1s orbital (NBO 6) of the cation. The NOBOND comparison would therefore indicate the superiority of a polar covalent description in this case.

B.6.8 3CBOND Keyword: Diborane

When the default NBO analysis is applied to diborane or related electron-deficient compounds, there is a dramatic failure to represent the electronic distribution in terms of 1- and 2-center functions only. For example, for B2H6 at the RHF/3-21G//RHF/3-21G level, the default NBO search (if the RESONANCE keyword is activated to allow NBO printout) returns a fractured set of 4 units (two BH2+ and two H- fragments), with about 2.13 electrons unaccounted for (~15% non-Lewis occupancy), symptomatic of general breakdown of the conventional Lewis structure representation.

However, when the NBO search is extended to 3-center bonds by activating the 3CBOND keyword, one obtains the NBO output shown below:



       /3CBOND / : Search for 3-center bonds

NATURAL BOND ORBITAL ANALYSIS:

                      Occupancies       Lewis Structure    Low   High
          Occ.    -------------------  -----------------   occ   occ
 Cycle   Thresh.   Lewis   Non-Lewis     CR  BD  3C  LP    (L)   (NL)   Dev
=============================================================================
  1(1)    1.90    15.94335   0.05665      2   4   2   0     0      0    0.15
  2(2)    1.90    15.94335   0.05665      2   4   2   0     0      0    0.15
-----------------------------------------------------------------------------

Structure accepted: No low occupancy Lewis orbitals

WARNING:  1 low occupancy (<1.9990e) core orbital  found on  B 1
          1 low occupancy (<1.9990e) core orbital  found on  B 2

--------------------------------------------------------
  Core                      3.99702 ( 99.925% of   4)
  Valence Lewis            11.94633 ( 99.553% of  12)
 ==================       ============================
  Total Lewis              15.94335 ( 99.646% of  16)
 -----------------------------------------------------
  Valence non-Lewis         0.04565 (  0.285% of  16)
  Rydberg non-Lewis         0.01100 (  0.069% of  16)
 ==================       ============================
  Total non-Lewis           0.05665 (  0.354% of  16)
--------------------------------------------------------


    (Occupancy)   Bond orbital/ Coefficients/ Hybrids
-------------------------------------------------------------------------------
  1. (1.98467) 3C ( 1) B 1- B 2- H 3
               ( 26.43%)   0.5141* B 1 s( 18.00%)p 4.55( 82.00%)
                                        0.0005  0.4241  0.0124 -0.7067 -0.0245
                                        0.0000  0.0000  0.5657 -0.0007
               ( 26.43%)   0.5141* B 2 s( 18.00%)p 4.55( 82.00%)
                                        0.0005  0.4241  0.0124 -0.7067 -0.0245
                                        0.0000  0.0000 -0.5657  0.0007
               ( 47.14%)   0.6866* H 3 s(100.00%)
                                        1.0000  0.0066
  2. (1.98467) 3C ( 1) B 1- B 2- H 4
               ( 26.43%)   0.5141* B 1 s( 18.00%)p 4.55( 82.00%)
                                        0.0005  0.4241  0.0124  0.7067  0.0245
                                        0.0000  0.0000  0.5657 -0.0007
               ( 26.43%)   0.5141* B 2 s( 18.00%)p 4.55( 82.00%)
                                        0.0005  0.4241  0.0124  0.7067  0.0245
                                        0.0000  0.0000 -0.5657  0.0007
               ( 47.14%)   0.6866* H 4 s(100.00%)
                                        1.0000  0.0066
  3. (1.99425) BD ( 1) B 1- H 6
               ( 48.80%)   0.6985* B 1 s( 31.98%)p 2.13( 68.02%)
                                       -0.0002  0.5655 -0.0061  0.0000  0.0000
                                        0.7067 -0.0243 -0.4239 -0.0222
               ( 51.20%)   0.7156* H 6 s(100.00%)
                                        1.0000  0.0004
  4. (1.99425) BD ( 1) B 1- H 7
               ( 48.80%)   0.6985* B 1 s( 31.98%)p 2.13( 68.02%)
                                       -0.0002  0.5655 -0.0061  0.0000  0.0000
                                       -0.7067  0.0243 -0.4239 -0.0222
               ( 51.20%)   0.7156* H 7 s(100.00%)
                                        1.0000  0.0004
  5. (1.99425) BD ( 1) B 2- H 5
               ( 48.80%)   0.6985* B 2 s( 31.98%)p 2.13( 68.02%)
                                       -0.0002  0.5655 -0.0061  0.0000  0.0000
                                       -0.7067  0.0243  0.4239  0.0222
               ( 51.20%)   0.7156* H 5 s(100.00%)
                                        1.0000  0.0004
  6. (1.99425) BD ( 1) B 2- H 8
               ( 48.80%)   0.6985* B 2 s( 31.98%)p 2.13( 68.02%)
                                       -0.0002  0.5655 -0.0061  0.0000  0.0000
                                        0.7067 -0.0243  0.4239  0.0222
               ( 51.20%)   0.7156* H 8 s(100.00%)
                                        1.0000  0.0004
  7. (1.99851) CR ( 1) B 1             s(100.00%)p 0.00(  0.00%)
                                        1.0000 -0.0002  0.0000  0.0000  0.0000
                                        0.0000  0.0000 -0.0007  0.0000
  8. (1.99851) CR ( 1) B 2             s(100.00%)p 0.00(  0.00%)
                                        1.0000 -0.0002  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0007  0.0000
  9. (0.00147) RY*( 1) B 1             s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0344  0.9994  0.0000  0.0000
 10. (0.00080) RY*( 2) B 1             s(  4.02%)p23.87( 95.98%)
                                        0.0000  0.0245  0.1990  0.0000  0.0000
                                        0.0000  0.0000 -0.0214  0.9795
 11. (0.00002) RY*( 3) B 1             s( 96.01%)p 0.04(  3.99%)
 12. (0.00000) RY*( 4) B 1             s(  0.00%)p 1.00(100.00%)
 13. (0.00147) RY*( 1) B 2             s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0344  0.9994  0.0000  0.0000
 14. (0.00080) RY*( 2) B 2             s(  4.02%)p23.87( 95.98%)
                                        0.0000  0.0245  0.1990  0.0000  0.0000
                                        0.0000  0.0000  0.0214 -0.9795
 15. (0.00002) RY*( 3) B 2             s( 96.01%)p 0.04(  3.99%)
 16. (0.00000) RY*( 4) B 2             s(  0.00%)p 1.00(100.00%)
 17. (0.00181) RY*( 1) H 3             s(100.00%)
                                       -0.0066  1.0000
 18. (0.00181) RY*( 1) H 4             s(100.00%)
                                       -0.0066  1.0000
 19. (0.00070) RY*( 1) H 5             s(100.00%)
                                       -0.0004  1.0000
 20. (0.00070) RY*( 1) H 6             s(100.00%)
                                       -0.0004  1.0000
 21. (0.00070) RY*( 1) H 7             s(100.00%)
                                       -0.0004  1.0000
 22. (0.00070) RY*( 1) H 8             s(100.00%)
                                       -0.0004  1.0000
 23. (0.01464) 3C*( 1) B 1- B 2- H 3
               ( 23.57%)   0.4855* B 1 s( 18.00%)p 4.55( 82.00%)
                                        0.0005  0.4241  0.0124 -0.7067 -0.0245
                                        0.0000  0.0000  0.5657 -0.0007
               ( 23.57%)  -0.4855* B 2 s( 18.00%)p 4.55( 82.00%)
                                       -0.0005 -0.4241 -0.0124  0.7067  0.0245
                                        0.0000  0.0000  0.5657 -0.0007
               ( 52.86%)  -0.7271* H 3 s(100.00%)
                                        1.0000  0.0066
 24. (0.00026) 3C*( 1) B 1- B 2- H 3
               ( 50.00%)   0.7071* B 1 s( 18.00%)p 4.55( 82.00%)
                                       -0.0005 -0.4241 -0.0124  0.7067  0.0245
                                        0.0000  0.0000 -0.5657  0.0007
               ( 50.00%)  -0.7071* B 2 s( 18.00%)p 4.55( 82.00%)
                                       -0.0005 -0.4241 -0.0124  0.7067  0.0245
                                        0.0000  0.0000  0.5657 -0.0007
               (  0.00%)   0.0000* H 3 s(  0.00%)
                                        0.0000  0.0000
 25. (0.01464) 3C*( 1) B 1- B 2- H 4
               ( 23.57%)   0.4855* B 1 s( 18.00%)p 4.55( 82.00%)
                                        0.0005  0.4241  0.0124  0.7067  0.0245
                                        0.0000  0.0000  0.5657 -0.0007
               ( 23.57%)  -0.4855* B 2 s( 18.00%)p 4.55( 82.00%)
                                       -0.0005 -0.4241 -0.0124 -0.7067 -0.0245
                                        0.0000  0.0000  0.5657 -0.0007
               ( 52.86%)  -0.7271* H 4 s(100.00%)
                                        1.0000  0.0066
 26. (0.00026) 3C*( 1) B 1- B 2- H 4
               ( 50.00%)   0.7071* B 1 s( 18.00%)p 4.55( 82.00%)
                                       -0.0005 -0.4241 -0.0124 -0.7067 -0.0245
                                        0.0000  0.0000 -0.5657  0.0007
               ( 50.00%)  -0.7071* B 2 s( 18.00%)p 4.55( 82.00%)
                                       -0.0005 -0.4241 -0.0124 -0.7067 -0.0245
                                        0.0000  0.0000  0.5657 -0.0007
               (  0.00%)   0.0000* H 4 s(  0.00%)
                                        0.0000  0.0000
 27. (0.00396) BD*( 1) B 2- H 5
               ( 51.20%)   0.7156* B 2 s( 31.98%)p 2.13( 68.02%)
                                       -0.0002  0.5655 -0.0061  0.0000  0.0000
                                       -0.7067  0.0243  0.4239  0.0222
               ( 48.80%)  -0.6985* H 5 s(100.00%)
                                        1.0000  0.0004
 28. (0.00396) BD*( 1) B 2- H 8
               ( 51.20%)   0.7156* B 2 s( 31.98%)p 2.13( 68.02%)
                                       -0.0002  0.5655 -0.0061  0.0000  0.0000
                                        0.7067 -0.0243  0.4239  0.0222
               ( 48.80%)  -0.6985* H 8 s(100.00%)
                                        1.0000  0.0004
 29. (0.00396) BD*( 1) B 1- H 6
               ( 51.20%)   0.7156* B 1 s( 31.98%)p 2.13( 68.02%)
                                       -0.0002  0.5655 -0.0061  0.0000  0.0000
                                        0.7067 -0.0243 -0.4239 -0.0222
               ( 48.80%)  -0.6985* H 6 s(100.00%)
                                        1.0000  0.0004
 30. (0.00396) BD*( 1) B 1- H 7
               ( 51.20%)   0.7156* B 1 s( 31.98%)p 2.13( 68.02%)
                                       -0.0002  0.5655 -0.0061  0.0000  0.0000
                                       -0.7067  0.0243 -0.4239 -0.0222
               ( 48.80%)  -0.6985* H 7 s(100.00%)
                                        1.0000  0.0004



The resulting NBO Lewis structure has improved significantly [only 0.057e (0.35%) non-Lewis occupancy]. The structure includes the expected 3-center B-H-B bonds (NBOs 1, 2), each with reasonably high occupancy (1.9847e). Each 3-c bond is composed of p-rich (sp4.55) boron hybrids and the hydrogen 1s NAO, with about 47.14% of the orbital density on the central hydrogen. Note that each 3-center bond NBO is associated with two 3-c antibond NBOs (viz., NBOs 23, 24 for the first 3-c bond, NBO 1), which contribute in distinct ways to delocalization interactions. Of course, the accuracy of any molecular Lewis structure might be improved slightly by extending the NBO search to 3-center bonds (thus allowing greater variational flexibility to maximize occupancy), but this example illustrates the kind of qualitative improvement that indicates when 3-center bonds are needed in the zeroth-order picture of the bonding.

Note that the NBO 3-c label may frequently have the wrong 'connectivity' (as in the present case, e.g., where "B 1- B 2- H 3" is written instead of the more reasonable "B 1- H 3- B 2"). This is a consequence of the fact that the NBO algorithms have no inkling of the positions of the atoms in space, and thus of which label is more 'reasonable.'

B.6.9 NBO Directed Search ($CHOOSE Keylist)

To illustrate the $CHOOSE keylist for a directed NBO search, we again make use of the methylamine example (Section A.3). The vicinal nN *CH delocalization, to which attention has been repeatedly called in the examples, may be associated, in resonance theory terms, with the "double-bond, no-bond" resonance structure shown below:

To investigate the suitability of this resonance structure for describing the methylamine wavefunction, we would specify the $CHOOSE keylist (Section B.4) as follows:

     $CHOOSE            !double-bond, no-bond resonance
        LONE  3  1  END
        BOND  S 1 4  S 1 5  D 1 2  S 2 6  S 2 7  END
     $END

When this is included in the input file, the NBO program produces the output shown below:


NATURAL BOND ORBITAL ANALYSIS:

                      Occupancies       Lewis Structure    Low   High
          Occ.    -------------------  -----------------   occ   occ
 Cycle   Thresh.   Lewis   Non-Lewis     CR  BD  3C  LP    (L)   (NL)   Dev
=============================================================================
  1(1)    1.90    16.66741   1.33259      2   6   0   1     1      2    0.95
-----------------------------------------------------------------------------

Structure accepted: NBOs selected via the $CHOOSE keylist

WARNING:  1 low occupancy (<1.9990e) core orbital  found on  C 1

--------------------------------------------------------
  Core                      3.99853 ( 99.963% of   4)
  Valence Lewis            12.66888 ( 90.492% of  14)
 ==================       ============================
  Total Lewis              16.66741 ( 92.597% of  18)
 -----------------------------------------------------
  Valence non-Lewis         1.30491 (  7.249% of  18)
  Rydberg non-Lewis         0.02768 (  0.154% of  18)
 ==================       ============================
  Total non-Lewis           1.33259 (  7.403% of  18)
--------------------------------------------------------


    (Occupancy)   Bond orbital/ Coefficients/ Hybrids
-------------------------------------------------------------------------------
  1. (1.95945) BD ( 1) C 1- N 2
               (  7.66%)   0.2768* C 1 s(  0.63%)p99.99( 99.37%)
                                       -0.0001 -0.0770 -0.0186  0.5107 -0.0551
                                        0.8520 -0.0632  0.0000  0.0000
               ( 92.34%)   0.9609* N 2 s( 19.31%)p 4.18( 80.69%)
                                        0.0000  0.4395 -0.0001 -0.1175 -0.0067
                                        0.8905 -0.0110  0.0000  0.0000
  2. (1.93778) BD ( 2) C 1- N 2
               ( 39.14%)   0.6256* C 1 s( 36.80%)p 1.72( 63.20%)
                                       -0.0004 -0.6055 -0.0371 -0.7047 -0.0632
                                        0.3594 -0.0471  0.0000  0.0000
               ( 60.86%)   0.7801* N 2 s( 19.33%)p 4.17( 80.67%)
                                       -0.0001 -0.4396  0.0011  0.8364 -0.0016
                                        0.3271 -0.0137  0.0000  0.0000
  3. (1.98365) BD ( 1) C 1- H 4
               ( 61.02%)   0.7811* C 1 s( 31.10%)p 2.22( 68.90%)
                                        0.0001  0.5577  0.0006 -0.3480  0.0095
                                        0.2603  0.0094  0.7070 -0.0103
               ( 38.98%)   0.6244* H 4 s(100.00%)
                                        1.0000  0.0008
  4. (1.98365) BD ( 1) C 1- H 5
               ( 61.02%)   0.7811* C 1 s( 31.10%)p 2.22( 68.90%)
                                        0.0001  0.5577  0.0006 -0.3480  0.0095
                                        0.2603  0.0094 -0.7070  0.0103
               ( 38.98%)   0.6244* H 5 s(100.00%)
                                        1.0000  0.0008
  5. (1.99491) BD ( 1) N 2- H 6
               ( 68.46%)   0.8274* N 2 s( 30.67%)p 2.26( 69.33%)
                                        0.0000  0.5538  0.0005  0.3785  0.0165
                                       -0.2232  0.0044 -0.7070 -0.0093
               ( 31.54%)   0.5616* H 6 s(100.00%)
                                        1.0000  0.0031
  6. (1.99491) BD ( 1) N 2- H 7
               ( 68.46%)   0.8274* N 2 s( 30.67%)p 2.26( 69.33%)
                                        0.0000  0.5538  0.0005  0.3785  0.0165
                                       -0.2232  0.0044  0.7070  0.0093
               ( 31.54%)   0.5616* H 7 s(100.00%)
                                        1.0000  0.0031
  7. (1.99900) CR ( 1) C 1             s(100.00%)p 0.00(  0.00%)
                                        1.0000 -0.0003  0.0000 -0.0001  0.0000
                                        0.0002  0.0000  0.0000  0.0000
  8. (1.99953) CR ( 1) N 2             s(100.00%)p 0.00(  0.00%)
                                        1.0000 -0.0001  0.0000  0.0001  0.0000
                                        0.0000  0.0000  0.0000  0.0000
  9. (0.81453) LP ( 1) H 3             s(100.00%)
                                        1.0000  0.0000
 10. (0.01893) RY*( 1) C 1             s( 10.61%)p 8.42( 89.39%)
                                        0.0000 -0.0737  0.3173 -0.0090  0.7223
                                        0.0971  0.6021  0.0000  0.0000
 11. (0.00034) RY*( 2) C 1             s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0146  0.9999
 12. (0.00025) RY*( 3) C 1             s( 57.37%)p 0.74( 42.63%)
                                        0.0000 -0.0012  0.7575 -0.0176  0.1886
                                       -0.0071 -0.6248  0.0000  0.0000
 13. (0.00002) RY*( 4) C 1             s( 32.38%)p 2.09( 67.62%)
 14. (0.00117) RY*( 1) N 2             s(  1.48%)p66.74( 98.52%)
                                        0.0000 -0.0067  0.1213  0.0062  0.0380
                                        0.0166  0.9917  0.0000  0.0000
 15. (0.00044) RY*( 2) N 2             s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000 -0.0132  0.9999
 16. (0.00038) RY*( 3) N 2             s( 33.41%)p 1.99( 66.59%)
                                        0.0000  0.0133  0.5779  0.0087 -0.8150
                                       -0.0120 -0.0392  0.0000  0.0000
 17. (0.00002) RY*( 4) N 2             s( 65.14%)p 0.54( 34.86%)
 18. (0.00177) RY*( 1) H 3             s(100.00%)
                                        0.0000  1.0000
 19. (0.00096) RY*( 1) H 4             s(100.00%)
                                       -0.0008  1.0000
 20. (0.00096) RY*( 1) H 5             s(100.00%)
                                       -0.0008  1.0000
 21. (0.00122) RY*( 1) H 6             s(100.00%)
                                       -0.0031  1.0000
 22. (0.00122) RY*( 1) H 7             s(100.00%)
                                       -0.0031  1.0000
 23. (1.02290) BD*( 1) C 1- N 2
               ( 92.34%)   0.9609* C 1 s(  0.63%)p99.99( 99.37%)
                                       -0.0001 -0.0770 -0.0186  0.5107 -0.0551
                                        0.8520 -0.0632  0.0000  0.0000
               (  7.66%)  -0.2768* N 2 s( 19.31%)p 4.18( 80.69%)
                                        0.0000  0.4395 -0.0001 -0.1175 -0.0067
                                        0.8905 -0.0110  0.0000  0.0000
 24. (0.22583) BD*( 2) C 1- N 2
               ( 60.86%)   0.7801* C 1 s( 36.80%)p 1.72( 63.20%)
                                       -0.0004 -0.6055 -0.0371 -0.7047 -0.0632
                                        0.3594 -0.0471  0.0000  0.0000
               ( 39.14%)  -0.6256* N 2 s( 19.33%)p 4.17( 80.67%)
                                       -0.0001 -0.4396  0.0011  0.8364 -0.0016
                                        0.3271 -0.0137  0.0000  0.0000
 25. (0.01415) BD*( 1) C 1- H 4
               ( 38.98%)   0.6244* C 1 s( 31.10%)p 2.22( 68.90%)
                                       -0.0001 -0.5577 -0.0006  0.3480 -0.0095
                                       -0.2603 -0.0094 -0.7070  0.0103
               ( 61.02%)  -0.7811* H 4 s(100.00%)
                                       -1.0000 -0.0008
 26. (0.01415) BD*( 1) C 1- H 5
               ( 38.98%)   0.6244* C 1 s( 31.10%)p 2.22( 68.90%)
                                       -0.0001 -0.5577 -0.0006  0.3480 -0.0095
                                       -0.2603 -0.0094  0.7070 -0.0103
               ( 61.02%)  -0.7811* H 5 s(100.00%)
                                       -1.0000 -0.0008
 27. (0.01394) BD*( 1) N 2- H 6
               ( 31.54%)   0.5616* N 2 s( 30.67%)p 2.26( 69.33%)
                                        0.0000 -0.5538 -0.0005 -0.3785 -0.0165
                                        0.2232 -0.0044  0.7070  0.0093
               ( 68.46%)  -0.8274* H 6 s(100.00%)
                                       -1.0000 -0.0031
 28. (0.01394) BD*( 1) N 2- H 7
               ( 31.54%)   0.5616* N 2 s( 30.67%)p 2.26( 69.33%)
                                        0.0000 -0.5538 -0.0005 -0.3785 -0.0165
                                        0.2232 -0.0044 -0.7070 -0.0093
               ( 68.46%)  -0.8274* H 7 s(100.00%)
                                       -1.0000 -0.0031



One can see that the $CHOOSE resonance structure is significantly inferior to the principal resonance structure found by the default NBO search in Section A.3. About 1.333e, or 7.4% of the electron density, is found in non-Lewis NBOs of the $CHOOSE structure (compared to 0.05e, or 0.3%, for the principal structure). Particularly defective is the hydride 'lone pair' (NBO 9), which has less than half the expected occupancy (0.81453e). The C-N bond (NBO 1) is seen to be more than 92% polarized toward N, indicative of essential lone pair character.

Note that structural elements shared by the two resonance structures (e.g., the two N-H bonds, which are common to both structures) need not have identical forms, since each detail of the NBOs is optimized with respect to the overall structure.

B.6.10 NBO Energetic Analysis ($DEL Keylist)

The NBO energetic analysis with deletions ($DEL keylist) will be illustrated with two simple examples for RHF/3-21G methylamine (Section A.3).

The first example is the "NOSTAR" option (type 4, Section B.5), requesting deletion of all non-Lewis orbitals, and hence leading to the energy of the idealized natural Lewis structure. The $DEL keylist in this case is

     $DEL  NOSTAR  $END

This leads to the output shown below:


NOSTAR: Delete all Rydberg/antibond NBOs
Deletion of the following orbitals from the NBO Fock matrix:
  10  11  12  13  14  15  16  17  18  19  20  21  22  23  24  25  26  27  28

Occupations of bond orbitals:

      Orbital                   No deletions   This deletion   Change
------------------------------------------------------------------------------
  1. BD ( 1) C 1- N 2               1.99858        2.00000    0.00142
  2. BD ( 1) C 1- H 3               1.99860        2.00000    0.00140
  3. BD ( 1) C 1- H 4               1.99399        2.00000    0.00601
  4. BD ( 1) C 1- H 5               1.99399        2.00000    0.00601
  5. BD ( 1) N 2- H 6               1.99442        2.00000    0.00558
  6. BD ( 1) N 2- H 7               1.99442        2.00000    0.00558
  7. CR ( 1) C 1                    1.99900        2.00000    0.00100
  8. CR ( 1) N 2                    1.99953        2.00000    0.00047
  9. LP ( 1) N 2                    1.97795        2.00000    0.02205
 10. RY*( 1) C 1                    0.00105        0.00000   -0.00105
 11. RY*( 2) C 1                    0.00034        0.00000   -0.00034
 12. RY*( 3) C 1                    0.00022        0.00000   -0.00022
 13. RY*( 4) C 1                    0.00002        0.00000   -0.00002
 14. RY*( 1) N 2                    0.00116        0.00000   -0.00116
 15. RY*( 2) N 2                    0.00044        0.00000   -0.00044
 16. RY*( 3) N 2                    0.00038        0.00000   -0.00038
 17. RY*( 4) N 2                    0.00002        0.00000   -0.00002
 18. RY*( 1) H 3                    0.00178        0.00000   -0.00178
 19. RY*( 1) H 4                    0.00096        0.00000   -0.00096
 20. RY*( 1) H 5                    0.00096        0.00000   -0.00096
 21. RY*( 1) H 6                    0.00122        0.00000   -0.00122
 22. RY*( 1) H 7                    0.00122        0.00000   -0.00122
 23. BD*( 1) C 1- N 2               0.00016        0.00000   -0.00016
 24. BD*( 1) C 1- H 3               0.01569        0.00000   -0.01569
 25. BD*( 1) C 1- H 4               0.00769        0.00000   -0.00769
 26. BD*( 1) C 1- H 5               0.00769        0.00000   -0.00769
 27. BD*( 1) N 2- H 6               0.00426        0.00000   -0.00426
 28. BD*( 1) N 2- H 7               0.00426        0.00000   -0.00426

NEXT STEP:  Evaluate the energy of the new density matrix
            that has been constructed from the deleted NBO
            Fock matrix by doing one SCF cycle.

------------------------------------------------------------------------------
  Energy of deletion :        -94.618081014
    Total SCF energy :        -94.679444944
                         -------------------
       Energy change :          0.061364 a.u.,          38.506 kcal/mol



In the output above, the NBO program first enumerates the 19 NBOs to be deleted by the "NOSTAR" request, then gives the complete list of NBOs with their occupancies before ("no deletions") and after ("this deletion") deletions, with the net change for each. For this NOSTAR deletion, each of the nine Lewis NBOs (1-9) necessarily gets 2.0000 electrons, and each of the non-Lewis NBOs (10-28) gets occupancy 0.0000. The program than reports the energy (-94.618081 a.u.) obtained from a single pass through the SCF evaluator with the modified density matrix. In this case, deletion of the 19 non-Lewis orbitals led to an energy change of only 0.061364 a.u. (38.5 kcal/mol), less than 0.07% of the total energy.

The next example is a more selective set of deletions between 'chemical fragments' (type 9), selected by the $DEL keylist input shown below:

     $DEL
        ZERO  2  ATOM BLOCKS
                 4  BY  3
                    1  3  4  5
                    2  6  7
                 3  BY  4
                    2  6  7
                    1  3  4  5
     $END

This specifies removal of all delocalizing interactions from Lewis NBOs of the methyl fragment (atoms 1,3,4,5) into non-Lewis NBOs of the amine fragment (atoms 2,6,7), or vice versa. The NBO output for this example is shown below:


Zero delocalization from NBOs localized on atoms:
   1   3   4   5
to NBOs localized on atoms:
   2   6   7
    (NBOs in common to the two groups of atoms left out)
Zero delocalization from NBOs localized on atoms:
   2   6   7
to NBOs localized on atoms:
   1   3   4   5
    (NBOs in common to the two groups of atoms left out)
Deletion of the NBO Fock matrix elements between orbitals:
   2   3   4   7
and orbitals:
  14  15  16  17  21  22  27  28
Deletion of the NBO Fock matrix elements between orbitals:
   5   6   8   9
and orbitals:
  10  11  12  13  18  19  20  24  25  26

Occupations of bond orbitals:

      Orbital                   No deletions   This deletion   Change
------------------------------------------------------------------------------
  1. BD ( 1) C 1- N 2               1.99858        1.99860    0.00002
  2. BD ( 1) C 1- H 3               1.99860        1.99937    0.00077
  3. BD ( 1) C 1- H 4               1.99399        1.99911    0.00512
  4. BD ( 1) C 1- H 5               1.99399        1.99911    0.00512
  5. BD ( 1) N 2- H 6               1.99442        1.99979    0.00537
  6. BD ( 1) N 2- H 7               1.99442        1.99979    0.00537
  7. CR ( 1) C 1                    1.99900        1.99919    0.00019
  8. CR ( 1) N 2                    1.99953        1.99974    0.00021
  9. LP ( 1) N 2                    1.97795        1.99996    0.02201
 10. RY*( 1) C 1                    0.00105        0.00016   -0.00090
 11. RY*( 2) C 1                    0.00034        0.00000   -0.00033
 12. RY*( 3) C 1                    0.00022        0.00002   -0.00020
 13. RY*( 4) C 1                    0.00002        0.00002    0.00000
 14. RY*( 1) N 2                    0.00116        0.00004   -0.00112
 15. RY*( 2) N 2                    0.00044        0.00000   -0.00044
 16. RY*( 3) N 2                    0.00038        0.00003   -0.00035
 17. RY*( 4) N 2                    0.00002        0.00001   -0.00001
 18. RY*( 1) H 3                    0.00178        0.00088   -0.00090
 19. RY*( 1) H 4                    0.00096        0.00057   -0.00038
 20. RY*( 1) H 5                    0.00096        0.00057   -0.00038
 21. RY*( 1) H 6                    0.00122        0.00057   -0.00065
 22. RY*( 1) H 7                    0.00122        0.00057   -0.00065
 23. BD*( 1) C 1- N 2               0.00016        0.00034    0.00018
 24. BD*( 1) C 1- H 3               0.01569        0.00027   -0.01542
 25. BD*( 1) C 1- H 4               0.00769        0.00055   -0.00714
 26. BD*( 1) C 1- H 5               0.00769        0.00055   -0.00714
 27. BD*( 1) N 2- H 6               0.00426        0.00009   -0.00417
 28. BD*( 1) N 2- H 7               0.00426        0.00009   -0.00417

NEXT STEP:  Evaluate the energy of the new density matrix
            that has been constructed from the deleted NBO
            Fock matrix by doing one SCF cycle.

------------------------------------------------------------------------------
  Energy of deletion :        -94.635029232
    Total SCF energy :        -94.679444944
                         -------------------
       Energy change :          0.044416 a.u.,          27.871 kcal/mol



The output first lists the various orbitals and Fock matrix elements affected by this deletion, then the 'before' and 'after' occupancies and net changes for each NBO. In this case, one can see that the principal effect of the deletion was increased occupancy (+0.022) of the nitrogen lone pair, NBO 9, and depleted occupancy (-0.015) of the antiperiplanar *C1H3 antibond, NBO 24, with somewhat lesser depletion (-0.007) of the other two C-H antibonds. The total energy change (loss of delocalization energy) associated with this deletion was 27.9 kcal/mol.

To further pinpoint the source of this delocalization, one could do more selective deletions of individual orbitals or Fock matrix elements. For example, if one uses deletion type 2 (deletion of a single Fock matrix element, Section B.5.2) to delete the (9,24) element associated with the nN *C1H3 interaction, one finds a deletion energy of 7.06 kcal/mol associated with this interaction alone. [This value may be compared with the simple second-order perturbative estimate (8.13 kcal/mol) of the nN *C1H3 (924) interaction that was noted in Section A.3.5.]

B.6.11 Open-Shell UHF Output: Methyl Radical

Open-shell NBO output will be illustrated with the simple example of the planar methyl radical (CH3), treated at the UHF/6-31G* level (RCH = 1.0736 Å). In the open-shell case, one obtains two separate NPA and NBO listings, one for the and one for the spin set, corresponding to the "different Lewis structures for different spins" description. A portion of the NBO output for the spin manifold is reproduced below:


NATURAL BOND ORBITAL ANALYSIS, alpha spin orbitals:

                      Occupancies       Lewis Structure    Low   High
          Occ.    -------------------  -----------------   occ   occ
 Cycle   Thresh.   Lewis   Non-Lewis     CR  BD  3C  LP    (L)   (NL)   Dev
=============================================================================
  1(1)    0.90     4.99903   0.00097      1   3   0   1     0      0    0.00
-----------------------------------------------------------------------------

Structure accepted: No low occupancy Lewis orbitals

--------------------------------------------------------
  Core                      0.99984 ( 99.984% of   1)
  Valence Lewis             3.99919 ( 99.980% of   4)
 ==================       ============================
  Total Lewis               4.99903 ( 99.981% of   5)
 -----------------------------------------------------
  Valence non-Lewis         0.00081 (  0.016% of   5)
  Rydberg non-Lewis         0.00016 (  0.003% of   5)
 ==================       ============================
  Total non-Lewis           0.00097 (  0.019% of   5)
--------------------------------------------------------


    (Occupancy)   Bond orbital/ Coefficients/ Hybrids
-------------------------------------------------------------------------------
  1. (0.99973) BD ( 1) C 1- H 2
               ( 61.14%)   0.7819* C 1 s( 33.33%)p 2.00( 66.51%)d 0.00(  0.16%)
                                        0.0000  0.5772 -0.0070  0.0000 -0.4076
                                       -0.0110  0.7060  0.0191  0.0000  0.0000
                                       -0.0338  0.0000  0.0000 -0.0195 -0.0090
               ( 38.86%)   0.6233* H 2 s(100.00%)
                                        1.0000  0.0080
  2. (0.99973) BD ( 1) C 1- H 3
               ( 61.14%)   0.7819* C 1 s( 33.33%)p 2.00( 66.51%)d 0.00(  0.16%)
                                        0.0000  0.5772 -0.0070  0.0000 -0.4076
                                       -0.0110 -0.7060 -0.0191  0.0000  0.0000
                                        0.0338  0.0000  0.0000 -0.0195 -0.0090
               ( 38.86%)   0.6233* H 3 s(100.00%)
                                        1.0000  0.0080
  3. (0.99973) BD ( 1) C 1- H 4
               ( 61.14%)   0.7819* C 1 s( 33.33%)p 2.00( 66.51%)d 0.00(  0.16%)
                                        0.0000  0.5772 -0.0070  0.0000  0.8153
                                        0.0221  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0000  0.0391 -0.0090
               ( 38.86%)   0.6233* H 4 s(100.00%)
                                        1.0000  0.0080
  4. (0.99984) CR ( 1) C 1             s(100.00%)
                                        1.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0000  0.0000  0.0000
  5. (1.00000) LP ( 1) C 1             s(  0.00%)p 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0000  0.9978 -0.0668
                                        0.0000  0.0000  0.0000  0.0000  0.0000
  6. (0.00000) RY*( 1) C 1             s(100.00%)p 0.00(  0.00%)d 0.00(  0.00%)
  7. (0.00000) RY*( 2) C 1             s(100.00%)
  8. (0.00000) RY*( 3) C 1             s(  0.00%)p 1.00(100.00%)d 0.00(  0.00%)
  9. (0.00000) RY*( 4) C 1             s(  0.00%)p 1.00(100.00%)d 0.00(  0.00%)
 10. (0.00000) RY*( 5) C 1             s(  0.00%)p 1.00(100.00%)
 11. (0.00000) RY*( 6) C 1             s(  0.00%)p 1.00(  0.23%)d99.99( 99.77%)
 12. (0.00000) RY*( 7) C 1             s(  0.00%)p 0.00(  0.00%)d 1.00(100.00%)
 13. (0.00000) RY*( 8) C 1             s(  0.00%)p 0.00(  0.00%)d 1.00(100.00%)
 14. (0.00000) RY*( 9) C 1             s(  0.00%)p 1.00(  0.23%)d99.99( 99.77%)
 15. (0.00000) RY*(10) C 1             s(  0.02%)p 0.00(  0.00%)d99.99( 99.98%)
 16. (0.00005) RY*( 1) H 2             s(100.00%)
 17. (0.00005) RY*( 1) H 3             s(100.00%)
 18. (0.00005) RY*( 1) H 4             s(100.00%)
 19. (0.00027) BD*( 1) C 1- H 2
               ( 38.86%)   0.6233* C 1 s( 33.33%)p 2.00( 66.51%)d 0.00(  0.16%)
                                        0.0000 -0.5772  0.0070  0.0000  0.4076
                                        0.0110 -0.7060 -0.0191  0.0000  0.0000
                                        0.0338  0.0000  0.0000  0.0195  0.0090
               ( 61.14%)  -0.7819* H 2 s(100.00%)
                                       -1.0000 -0.0080
 20. (0.00027) BD*( 1) C 1- H 3
               ( 38.86%)   0.6233* C 1 s( 33.33%)p 2.00( 66.51%)d 0.00(  0.16%)
                                        0.0000 -0.5772  0.0070  0.0000  0.4076
                                        0.0110  0.7060  0.0191  0.0000  0.0000
                                       -0.0338  0.0000  0.0000  0.0195  0.0090
               ( 61.14%)  -0.7819* H 3 s(100.00%)
                                       -1.0000 -0.0080
 21. (0.00027) BD*( 1) C 1- H 4
               ( 38.86%)   0.6233* C 1 s( 33.33%)p 2.00( 66.51%)d 0.00(  0.16%)
                                        0.0000 -0.5772  0.0070  0.0000 -0.8153
                                       -0.0221  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0000 -0.0391  0.0090
               ( 61.14%)  -0.7819* H 4 s(100.00%)
                                       -1.0000 -0.0080



As can be seen in the output, the NBO spin-orbital occupancy threshold was set at 0.90 (rather than 1.90), and the occupancies of Lewis spin-NBOs (1-5) are about 1.0000, but other aspects of the output are familiar. Note the slight admixture of d-character (0.16%) in the CH bond hybrids (NBOs 1-3), whereas the out-of-plane radical non-bonded orbital (NBO 5) has pure p-character.

The NBO output for the ('ionized') spin set then follows:


NATURAL BOND ORBITAL ANALYSIS, beta spin orbitals:

                      Occupancies       Lewis Structure    Low   High
          Occ.    -------------------  -----------------   occ   occ
 Cycle   Thresh.   Lewis   Non-Lewis     CR  BD  3C  LP    (L)   (NL)   Dev
=============================================================================
  1(1)    0.90     3.99981   0.00019      1   3   0   0     0      0    0.00
-----------------------------------------------------------------------------

Structure accepted: No low occupancy Lewis orbitals

--------------------------------------------------------
  Core                      0.99985 ( 99.985% of   1)
  Valence Lewis             2.99996 ( 99.999% of   3)
 ==================       ============================
  Total Lewis               3.99981 ( 99.995% of   4)
 -----------------------------------------------------
  Valence non-Lewis         0.00002 (  0.000% of   4)
  Rydberg non-Lewis         0.00017 (  0.004% of   4)
 ==================       ============================
  Total non-Lewis           0.00019 (  0.005% of   4)
--------------------------------------------------------


    (Occupancy)   Bond orbital/ Coefficients/ Hybrids
-------------------------------------------------------------------------------
  1. (0.99999) BD ( 1) C 1- H 2
               ( 55.80%)   0.7470* C 1 s( 33.21%)p 2.00( 66.51%)d 0.01(  0.28%)
                                        0.0000  0.5762  0.0080  0.0000 -0.4076
                                       -0.0125  0.7059  0.0217  0.0000  0.0000
                                       -0.0345  0.0000  0.0000 -0.0199 -0.0350
               ( 44.20%)   0.6649* H 2 s(100.00%)
                                        1.0000 -0.0069
  2. (0.99999) BD ( 1) C 1- H 3
               ( 55.80%)   0.7470* C 1 s( 33.21%)p 2.00( 66.51%)d 0.01(  0.28%)
                                        0.0000  0.5762  0.0080  0.0000 -0.4076
                                       -0.0125 -0.7059 -0.0217  0.0000  0.0000
                                        0.0345  0.0000  0.0000 -0.0199 -0.0350
               ( 44.20%)   0.6649* H 3 s(100.00%)
                                        1.0000 -0.0069
  3. (0.99999) BD ( 1) C 1- H 4
               ( 55.80%)   0.7470* C 1 s( 33.21%)p 2.00( 66.51%)d 0.01(  0.28%)
                                        0.0000  0.5762  0.0080  0.0000  0.8151
                                        0.0251  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0000  0.0399 -0.0350
               ( 44.20%)   0.6649* H 4 s(100.00%)
                                        1.0000 -0.0069
  4. (0.99985) CR ( 1) C 1             s(100.00%)
                                        1.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0000  0.0000  0.0000
  5. (0.00002) LP*( 1) C 1             s( 10.35%)p 0.00(  0.00%)d 8.66( 89.65%)
  6. (0.00000) RY*( 1) C 1             s( 98.99%)p 0.00(  0.00%)d 0.01(  1.01%)
  7. (0.00000) RY*( 2) C 1             s(  0.00%)p 1.00(100.00%)d 0.00(  0.00%)
  8. (0.00000) RY*( 3) C 1             s(  0.00%)p 1.00(100.00%)d 0.00(  0.00%)
  9. (0.00000) RY*( 4) C 1             s(  0.00%)p 1.00(100.00%)
 10. (0.00000) RY*( 5) C 1             s(  0.00%)p 1.00(100.00%)
 11. (0.00000) RY*( 6) C 1             s(  0.00%)p 1.00(  0.24%)d99.99( 99.76%)
 12. (0.00000) RY*( 7) C 1             s(  0.00%)p 0.00(  0.00%)d 1.00(100.00%)
 13. (0.00000) RY*( 8) C 1             s(  0.00%)p 0.00(  0.00%)d 1.00(100.00%)
 14. (0.00000) RY*( 9) C 1             s(  0.00%)p 1.00(  0.24%)d99.99( 99.76%)
 15. (0.00000) RY*(10) C 1             s( 91.02%)p 0.00(  0.00%)d 0.10(  8.98%)
 16. (0.00006) RY*( 1) H 2             s(100.00%)
 17. (0.00006) RY*( 1) H 3             s(100.00%)
 18. (0.00006) RY*( 1) H 4             s(100.00%)
 19. (0.00000) BD*( 1) C 1- H 2
               ( 44.20%)   0.6649* C 1 s( 33.21%)p 2.00( 66.51%)d 0.01(  0.28%)
               ( 55.80%)  -0.7470* H 2 s(100.00%)
 20. (0.00000) BD*( 1) C 1- H 3
               ( 44.20%)   0.6649* C 1 s( 33.21%)p 2.00( 66.51%)d 0.01(  0.28%)
               ( 55.80%)  -0.7470* H 3 s(100.00%)
 21. (0.00000) BD*( 1) C 1- H 4
               ( 44.20%)   0.6649* C 1 s( 33.21%)p 2.00( 66.51%)d 0.01(  0.28%)
               ( 55.80%)  -0.7470* H 4 s(100.00%)



The principal difference to be seen is that the radical orbital (NBO 5) is essentially empty in this spin set, and the polarization of the CH bonds is somewhat altered (about 55.8% on the C atom in the set set, vs. 61.1% in the set). [In other cases, the and NBO Lewis structures might differ even in the number and location of 1-c (non-bonding) and 2-c (bond) structural elements.] Note that the overall quality of the open-shell natural Lewis structure description (> 99.9%) is comparable to that of ordinary closed-shell molecules, and the interpretation of the NBO output follows familiar lines.

WARNING

You should not attempt to analyze an open-shell wavefunction with an ESS method that produces only the "spinless" (spin-averaged) density matrix, rather than the separate density matrices for and spin. Although NAOs and their total populations are calculated correctly from the spinless density matrix, NBOs and NLMOs are not. NBO analysis of an open-shell spinless density matrix is a fundamental misuse of the program.

B.6.12 Effective Core Potential: Cu2 Dimer

To illustrate some of the variations of NBO output associated with use of effective core potentials (ECP) and inclusion of d orbitals, we use the example of the copper dimer Cu2 (R = 2.2195 Å), treated at the RHF level with a Hay-Wadt ECP and valence DZ basis (RHF/LANL1DZ), carried out with the GAUSSIAN-88 system. (The wavefunction returned by GAUSSIAN-88 in this case corresponds to an excited state configuration of Cu2.) Since the NBO program communicates directly with the ESS program for details about the ECP, no special keywords are necessary.

Use of an ECP shows up most directly in the NPA portion of the output, shown below:


NATURAL POPULATIONS:  Natural atomic orbital occupancies

 NAO Atom #  lang   Type(AO)    Occupancy      Energy
---------------------------------------------------------
  1   Cu  1  s      Val( 4s)     0.94240      -0.26321
  2   Cu  1  s      Ryd( 5s)     0.00019       0.92165
  3   Cu  1  px     Ryd( 4p)     0.99604      -0.06989
  4   Cu  1  px     Ryd( 5p)     0.00001       0.09916
  5   Cu  1  py     Ryd( 4p)     0.99604      -0.06989
  6   Cu  1  py     Ryd( 5p)     0.00001       0.09916
  7   Cu  1  pz     Ryd( 5p)     0.05481       1.09062
  8   Cu  1  pz     Ryd( 4p)     0.00062       0.52821
  9   Cu  1  dxy    Val( 3d)     0.00000      -0.36077
 10   Cu  1  dxy    Ryd( 4d)     0.00000       0.72280
 11   Cu  1  dxz    Val( 3d)     1.99997      -1.29316
 12   Cu  1  dxz    Ryd( 4d)     0.00398       0.75681
 13   Cu  1  dyz    Val( 3d)     1.99997      -1.29316
 14   Cu  1  dyz    Ryd( 4d)     0.00398       0.75681
 15   Cu  1  dx2y2  Val( 3d)     1.99939      -1.38791
 16   Cu  1  dx2y2  Ryd( 4d)     0.00061       0.67825
 17   Cu  1  dz2    Val( 3d)     1.99890      -1.26114
 18   Cu  1  dz2    Ryd( 4d)     0.00308       1.16392

 19   Cu  2  s      Val( 4s)     0.94240      -0.26321
 20   Cu  2  s      Ryd( 5s)     0.00019       0.92165
 21   Cu  2  px     Ryd( 4p)     0.99604      -0.06989
 22   Cu  2  px     Ryd( 5p)     0.00001       0.09916
 23   Cu  2  py     Ryd( 4p)     0.99604      -0.06989
 24   Cu  2  py     Ryd( 5p)     0.00001       0.09916
 25   Cu  2  pz     Ryd( 5p)     0.05481       1.09062
 26   Cu  2  pz     Ryd( 4p)     0.00062       0.52821
 27   Cu  2  dxy    Val( 3d)     0.00000      -0.36077
 28   Cu  2  dxy    Ryd( 4d)     0.00000       0.72280
 29   Cu  2  dxz    Val( 3d)     1.99997      -1.29316
 30   Cu  2  dxz    Ryd( 4d)     0.00398       0.75681
 31   Cu  2  dyz    Val( 3d)     1.99997      -1.29316
 32   Cu  2  dyz    Ryd( 4d)     0.00398       0.75681
 33   Cu  2  dx2y2  Val( 3d)     1.99939      -1.38791
 34   Cu  2  dx2y2  Ryd( 4d)     0.00061       0.67825
 35   Cu  2  dz2    Val( 3d)     1.99890      -1.26114
 36   Cu  2  dz2    Ryd( 4d)     0.00308       1.16392

[ 36 electrons found in the effective core potential]

WARNING:  Population inversion found on atom Cu 1
          Population inversion found on atom Cu 2


Summary of Natural Population Analysis:

                                      Natural Population
              Natural   -----------------------------------------------
   Atom #     Charge        Core      Valence    Rydberg      Total
-----------------------------------------------------------------------
    Cu  1    0.00000     18.00000     8.94064    2.05936    29.00000
    Cu  2    0.00000     18.00000     8.94064    2.05936    29.00000
=======================================================================
  * Total *  0.00000     36.00000    17.88127    4.11873    58.00000

                                Natural Population
--------------------------------------------------------
  Effective Core            36.00000
  Valence                   17.88127 ( 81.2785% of  22)
  Natural Minimal Basis     53.88127 ( 92.8987% of  58)
  Natural Rydberg Basis      4.11873 (  7.1013% of  58)
--------------------------------------------------------

   Atom #          Natural Electron Configuration
----------------------------------------------------------------------------
    Cu  1      [core]4s( 0.94)3d( 8.00)4p( 1.99)4d( 0.01)5p( 0.05)
    Cu  2      [core]4s( 0.94)3d( 8.00)4p( 1.99)4d( 0.01)5p( 0.05)



As noted below the first NPA table, 36 electrons were found in the ECP, so the labels for NAOs in the table begin with the designations 4s, 5s, etc. of the presumed extra-core electrons. The ECP electrons are duly entered in the NPA tables (labelled as "effective core" in the NPA summary table) as part of the total Lewis occupancy, and are taken into proper account in assigning atomic charges. The NPA output in this case includes a "population inversion" message to warn that one or more NAO occupancies are not ordered in accordance with the energy order [e.g., the 3dxy orbital (NAO 9) is unoccupied in this excited configuration, although its energy lies below the occupied 4s, 4py, 4pz levels.]

The main ECP effect in the NBO portion of the output is the omission of core NBOs, as illustrated below:


NATURAL BOND ORBITAL ANALYSIS:

                      Occupancies       Lewis Structure    Low   High
          Occ.    -------------------  -----------------   occ   occ
 Cycle   Thresh.   Lewis   Non-Lewis     CR  BD  3C  LP    (L)   (NL)   Dev
=============================================================================
  1(1)    1.90    57.99970   0.00030      0   3   0   8     0      0    0.00
-----------------------------------------------------------------------------

Structure accepted: No low occupancy Lewis orbitals

--------------------------------------------------------
  Effective Core           36.00000
  Valence Lewis            21.99970 ( 99.999% of  22)
 ==================       ============================
  Total Lewis              57.99970 ( 99.999% of  58)
 -----------------------------------------------------
  Valence non-Lewis         0.00000 (  0.000% of  58)
  Rydberg non-Lewis         0.00030 (  0.001% of  58)
 ==================       ============================
  Total non-Lewis           0.00030 (  0.001% of  58)
--------------------------------------------------------


    (Occupancy)   Bond orbital/ Coefficients/ Hybrids
-------------------------------------------------------------------------------
  1. (2.00000) BD ( 1)Cu 1-Cu 2
               ( 50.00%)   0.7071*Cu 1 s( 94.13%)p 0.06(  5.54%)d 0.00(  0.33%)
                                        0.9702 -0.0003  0.0000  0.0000  0.0000
                                        0.0000 -0.2340  0.0245  0.0000  0.0000
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0225  0.0530
               ( 50.00%)   0.7071*Cu 2 s( 94.13%)p 0.06(  5.54%)d 0.00(  0.33%)
                                        0.9702 -0.0003  0.0000  0.0000  0.0000
                                        0.0000  0.2340 -0.0245  0.0000  0.0000
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0225  0.0530
  2. (2.00000) BD ( 2)Cu 1-Cu 2
               ( 50.00%)   0.7071*Cu 1 s(  0.00%)p 1.00( 99.60%)d 0.00(  0.40%)
                                        0.0000  0.0000  0.9980  0.0029  0.0000
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                       -0.0035 -0.0630  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0000
               ( 50.00%)   0.7071*Cu 2 s(  0.00%)p 1.00( 99.60%)d 0.00(  0.40%)
                                        0.0000  0.0000  0.9980  0.0029  0.0000
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0035  0.0630  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0000
  3. (2.00000) BD ( 3)Cu 1-Cu 2
               ( 50.00%)   0.7071*Cu 1 s(  0.00%)p 1.00( 99.60%)d 0.00(  0.40%)
                                        0.0000  0.0000  0.0000  0.0000  0.9980
                                        0.0029  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000 -0.0035 -0.0630  0.0000
                                        0.0000  0.0000  0.0000
               ( 50.00%)   0.7071*Cu 2 s(  0.00%)p 1.00( 99.60%)d 0.00(  0.40%)
                                        0.0000  0.0000  0.0000  0.0000  0.9980
                                        0.0029  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0035  0.0630  0.0000
                                        0.0000  0.0000  0.0000
  4. (2.00000) LP ( 1)Cu 1             s(  0.00%)p 0.00(  0.00%)d 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0000  0.0000  0.9998
                                       -0.0175  0.0000  0.0000
  5. (2.00000) LP ( 2)Cu 1             s(  0.00%)p 0.00(  0.00%)d 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  0.0037
                                       -0.0010  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000  1.0000  0.0026  0.0000
                                        0.0000  0.0000  0.0000
  6. (2.00000) LP ( 3)Cu 1             s(  0.00%)p 0.00(  0.00%)d 1.00(100.00%)
                                        0.0000  0.0000  0.0037 -0.0010  0.0000
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        1.0000  0.0026  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0000
  7. (1.99985) LP ( 4)Cu 1             s(  0.06%)p 0.02(  0.00%)d99.99( 99.94%)
                                        0.0231  0.0070  0.0000  0.0000  0.0000
                                        0.0000 -0.0030 -0.0008  0.0000  0.0000
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000 -0.9996 -0.0115
  8. (2.00000) LP ( 1)Cu 2             s(  0.00%)p 0.00(  0.00%)d 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0000  0.0000  0.9998
                                       -0.0175  0.0000  0.0000
  9. (2.00000) LP ( 2)Cu 2             s(  0.00%)p 0.00(  0.00%)d 1.00(100.00%)
                                        0.0000  0.0000  0.0000  0.0000 -0.0037
                                        0.0010  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0000  1.0000  0.0026  0.0000
                                        0.0000  0.0000  0.0000
 10. (2.00000) LP ( 3)Cu 2             s(  0.00%)p 0.00(  0.00%)d 1.00(100.00%)
                                        0.0000  0.0000 -0.0037  0.0010  0.0000
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        1.0000  0.0026  0.0000  0.0000  0.0000
                                        0.0000  0.0000  0.0000
 11. (1.99985) LP ( 4)Cu 2             s(  0.06%)p 0.02(  0.00%)d99.99( 99.94%)
                                        0.0231  0.0070  0.0000  0.0000  0.0000
                                        0.0000  0.0030  0.0008  0.0000  0.0000
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000 -0.9996 -0.0115
 12. (0.00015) RY*( 1)Cu 1             s( 63.84%)p 0.51( 32.31%)d 0.06(  3.85%)
                                       -0.1106  0.7913  0.0000  0.0000  0.0000
                                        0.0000 -0.4699  0.3199  0.0000  0.0000
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0064 -0.1962
 13. (0.00000) RY*( 2)Cu 1             s(  0.00%)p 1.00(100.00%)d 0.00(  0.00%)
 14. (0.00000) RY*( 3)Cu 1             s(  0.00%)p 1.00(100.00%)d 0.00(  0.00%)
 15. (0.00000) RY*( 4)Cu 1             s( 31.12%)p 2.21( 68.87%)d 0.00(  0.00%)
 16. (0.00000) RY*( 5)Cu 1             s(  7.79%)p11.84( 92.21%)d 0.00(  0.00%)
 17. (0.00000) RY*( 6)Cu 1             s(  0.00%)p 0.00(  0.00%)d 1.00(100.00%)
 18. (0.00000) RY*( 7)Cu 1             s(  0.00%)p 0.00(  0.00%)d 1.00(100.00%)
 19. (0.00000) RY*( 8)Cu 1             s(  0.00%)p 1.00(  0.40%)d99.99( 99.60%)
 20. (0.00000) RY*( 9)Cu 1             s(  0.00%)p 1.00(  0.40%)d99.99( 99.60%)
 21. (0.00000) RY*(10)Cu 1             s(  0.00%)p 0.00(  0.00%)d 1.00(100.00%)
 22. (0.00000) RY*(11)Cu 1             s(  3.06%)p 0.35(  1.07%)d31.35( 95.87%)
 23. (0.00015) RY*( 1)Cu 2             s( 63.84%)p 0.51( 32.31%)d 0.06(  3.85%)
                                       -0.1106  0.7913  0.0000  0.0000  0.0000
                                        0.0000  0.4699 -0.3199  0.0000  0.0000
                                        0.0000  0.0000  0.0000  0.0000  0.0000
                                        0.0000  0.0064 -0.1962
 24. (0.00000) RY*( 2)Cu 2             s(  0.00%)p 1.00(100.00%)d 0.00(  0.00%)
 25. (0.00000) RY*( 3)Cu 2             s(  0.00%)p 1.00(100.00%)d 0.00(  0.00%)
 26. (0.00000) RY*( 4)Cu 2             s( 31.12%)p 2.21( 68.87%)d 0.00(  0.00%)
 27. (0.00000) RY*( 5)Cu 2             s(  7.79%)p11.84( 92.21%)d 0.00(  0.00%)
 28. (0.00000) RY*( 6)Cu 2             s(  0.00%)p 0.00(  0.00%)d 1.00(100.00%)
 29. (0.00000) RY*( 7)Cu 2             s(  0.00%)p 0.00(  0.00%)d 1.00(100.00%)
 30. (0.00000) RY*( 8)Cu 2             s(  0.00%)p 1.00(  0.40%)d99.99( 99.60%)
 31. (0.00000) RY*( 9)Cu 2             s(  0.00%)p 1.00(  0.40%)d99.99( 99.60%)
 32. (0.00000) RY*(10)Cu 2             s(  0.00%)p 0.00(  0.00%)d 1.00(100.00%)
 33. (0.00000) RY*(11)Cu 2             s(  3.06%)p 0.35(  1.07%)d31.35( 95.87%)
 34. (0.00000) BD*( 1)Cu 1-Cu 2
               ( 50.00%)   0.7071*Cu 1 s( 94.13%)p 0.06(  5.54%)d 0.00(  0.33%)
               ( 50.00%)  -0.7071*Cu 2 s( 94.13%)p 0.06(  5.54%)d 0.00(  0.33%)
 35. (0.00000) BD*( 2)Cu 1-Cu 2
               ( 50.00%)   0.7071*Cu 1 s(  0.00%)p 1.00( 99.60%)d 0.00(  0.40%)
               ( 50.00%)  -0.7071*Cu 2 s(  0.00%)p 1.00( 99.60%)d 0.00(  0.40%)
 36. (0.00000) BD*( 3)Cu 1-Cu 2
               ( 50.00%)   0.7071*Cu 1 s(  0.00%)p 1.00( 99.60%)d 0.00(  0.40%)
               ( 50.00%)  -0.7071*Cu 2 s(  0.00%)p 1.00( 99.60%)d 0.00(  0.40%)




Natural Bond Orbitals (Summary):

                                                    Principal Delocalizations
          NBO              Occupancy    Energy      (geminal,vicinal,remote)
===============================================================================
Molecular unit  1  (Cu2)
  1. BD ( 1)Cu 1-Cu 2       2.00000    -0.53276
  2. BD ( 2)Cu 1-Cu 2       2.00000    -0.21503
  3. BD ( 3)Cu 1-Cu 2       2.00000    -0.21503
  4. LP ( 1)Cu 1            2.00000    -1.38854
  5. LP ( 2)Cu 1            2.00000    -1.29317
  6. LP ( 3)Cu 1            2.00000    -1.29317
  7. LP ( 4)Cu 1            1.99985    -1.26133
  8. LP ( 1)Cu 2            2.00000    -1.38854
  9. LP ( 2)Cu 2            2.00000    -1.29317
 10. LP ( 3)Cu 2            2.00000    -1.29317
 11. LP ( 4)Cu 2            1.99985    -1.26133
 12. RY*( 1)Cu 1            0.00015     0.70166
 13. RY*( 2)Cu 1            0.00000     0.09932
 14. RY*( 3)Cu 1            0.00000     0.09932
 15. RY*( 4)Cu 1            0.00000     1.09217
 16. RY*( 5)Cu 1            0.00000     0.44430
 17. RY*( 6)Cu 1            0.00000    -0.36077
 18. RY*( 7)Cu 1            0.00000     0.72280
 19. RY*( 8)Cu 1            0.00000     0.75266
 20. RY*( 9)Cu 1            0.00000     0.75266
 21. RY*(10)Cu 1            0.00000     0.67888
 22. RY*(11)Cu 1            0.00000     1.26372
 23. RY*( 1)Cu 2            0.00015     0.70166
 24. RY*( 2)Cu 2            0.00000     0.09932
 25. RY*( 3)Cu 2            0.00000     0.09932
 26. RY*( 4)Cu 2            0.00000     1.09217
 27. RY*( 5)Cu 2            0.00000     0.44430
 28. RY*( 6)Cu 2            0.00000    -0.36077
 29. RY*( 7)Cu 2            0.00000     0.72280
 30. RY*( 8)Cu 2            0.00000     0.75266
 31. RY*( 9)Cu 2            0.00000     0.75266
 32. RY*(10)Cu 2            0.00000     0.67888
 33. RY*(11)Cu 2            0.00000     1.26372
 34. BD*( 1)Cu 1-Cu 2       0.00000     0.41179
 35. BD*( 2)Cu 1-Cu 2       0.00000     0.08327
 36. BD*( 3)Cu 1-Cu 2       0.00000     0.08327
      -------------------------------
             Total Lewis   57.99970  ( 99.9995%)
       Valence non-Lewis    0.00000  (  0.0000%)
       Rydberg non-Lewis    0.00030  (  0.0005%)
      -------------------------------
           Total unit  1   58.00000  (100.0000%)
          Charge unit  1    0.00000



As the output shows, the NBO tables include reference to only 11 occupied NBOs, rather than the 29 that would appear in a full calculation. Semi-empirical methods that neglect core electrons (AMPAC, etc.) are handled similarly.

The output for the Cu2 example also illustrates some aspects of the inclusion of d orbitals in the basis set. NBOs 4-7 and 8-11 represent the 3d8 subshells on each atom, essentially of pure atomic d character (except for a small admixture of p character in NBOs 7, 11). Both the CuCu bond (NBO 1) and the two CuCu bonds (NBOs 2, 3) have very slight admixtures (< 0.4%) of d character. The remaining orbitals of predominant d character (NBOs 17-22 and 28-33) are of negligible occupancy. Note that the abbreviated "spd" designations can lead to strange variations among hybrids of essentially similar character; thus, NBO 20 (p1.0d99.9), NBO 21 (d1.0), and NBO 22 (s3.1p0.4d31.4) are all of nearly pure (> 95%) d character, the difference in labelling stemming from whether there is sufficient s or p character (in numerical terms) to express the hybrid ratios in spd form. Consult the percentages of s-. p-, and d-character whenever there is doubt about how to interpret a particular spd designation.

B.7 FILE47: INPUT FOR THE GENNBO STAND-ALONE NBO PROGRAM

B.7.1 Introduction

The general NBO program, GENNBO, is a stand-alone program which is not directly attached to an ESS program. Rather, information about the wavefunction is provided to the core NBO routines by a sequential input file, FILE47, described in this section.

Some knowledge of FILE47 is useful even if your NBO program is attached to an ESS package. If requested (see the ARCHIVE option, Section B.2.5), the NBO program writes out FILE47 which summarizes all information pertaining to the computed electronic wavefunction. This file can be subsequently used as input to the GENNBO program (reassigned as LFN 5) to repeat the analysis of this wavefunction; simply include the $NBO, $CORE, and $CHOOSE keylists in FILE47 and execute GENNBO. You need never recompute the wavefunction to vary its NBO analysis! In fact, generating the FILE47 input file is a useful way to archive a wavefunction for future use or reference. [Note: the GENNBO program can not perform the NBO energetic analysis ($DEL keylist) since this would require access to the formatted one- and two-electron integrals of the parent ESS package.]

If you intend to use the NBO program in conjunction with an ESS package not supported in this distribution (i.e. for which no custom drivers are provided), you might consider attaching a routine to your ESS program which would write the proper form of FILE47 for input into the GENNBO program. Thus, a two-step process would be required to obtain the NBO analysis of a wavefunction: (i) the initial calculation of the wavefunction with the ESS package, writing FILE47; (ii) the NBO analysis using the GENNBO program with FILE47 as input. Alternatively, you may decide to attach the NBO program directly to your ESS package by writing your own driver routines. See the Programmer's Guide, Section C.13, for direction.

Section B.7.2 describes and illustrates the overall format of FILE47. Sections B.7.3-B.7.7 detail the entries of the keylists and datalists that compose this file.

B.7.2 Format of the FILE47 Input File

The FILE47 input file is composed of a set of keylists and datalists, each list beginning with a "$" identifier (e.g. "$BASIS") and ending with "$END",

     $BASIS   entries  $END

Individual lists are used to specify basis set information ($BASIS), density matrix elements ($DENSITY), and so forth. The order of the lists within FILE47 is immaterial. Entries within each datalist are generally free format, and may be continued on as many lines as desired. An exclamation point (!) on any line terminates input from the line, and may be followed by arbitrary comments. The $GENNBO keylist and the $COORD, $BASIS, $DENSITY, and $OVERLAP datalists are required, but the other datalists ($FOCK, $LCAOMO, $CONTRACT, $DIPOLE) or the standard NBO keylists ($NBO, $CORE, $CHOOSE) are optional, depending on the requested application. If the $NBO keylist is not present in FILE47, the default NBO analysis is performed.

The entries of each keylist or datalist may be keywords, numerical matrix elements, or other parameters of prescribed form. A sample FILE47 input file (for the RHF/3-21G methylamine example of Section A.3) is shown below:


 $GENNBO  NATOMS=7  NBAS=28  UPPER  BODM $END
 $NBO  NAOMO=PVAL  $END
 $COORD
 Methylamine...Pople-Gordon standard geometry...RHF/3-21G
  6   6   -0.74464  -0.03926   0.00000    ! Carbon
  7   7    0.71885   0.09893   0.00000    ! Nitrogen
  1   1   -1.00976  -1.09653   0.00000    ! Hydrogen
  1   1   -1.15467   0.43814   0.88998    ! Hydrogen
  1   1   -1.15467   0.43814  -0.88998    ! Hydrogen
  1   1    1.09878  -0.34343  -0.82466    ! Hydrogen
  1   1    1.09878  -0.34343   0.82466    ! Hydrogen
 $END
 $BASIS
   CENTER = 1,1,1,1,1,1,1,1,1,2,2,2,2,2,2,2,2,2,3,3,4,4,5,5,6,6,7,7
    LABEL = 1,1,101,102,103,1,101,102,103,1,1,101,102,103,1,101,102,103,
            1,1,1,1,1,1,1,1,1,1
 $END
 $CONTRACT
  NSHELL =  16
    NEXP =  21
   NCOMP =   1,  4,  4,  1,  4,  4,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1
   NPRIM =   3,  2,  1,  3,  2,  1,  2,  1,  2,  1,  2,  1,  2,  1,  2,  1
    NPTR =   1,  4,  6,  7, 10, 12, 13, 15, 16, 18, 16, 18, 19, 21, 19, 21
     EXP =   0.1722560E+03,  0.2591090E+02,  0.5533350E+01,  0.3664980E+01,
             0.7705450E+00,  0.1958570E+00,  0.2427660E+03,  0.3648510E+02,
             0.7814490E+01,  0.5425220E+01,  0.1149150E+01,  0.2832050E+00,
             0.5447178E+01,  0.8245472E+00,  0.1831916E+00,  0.5447178E+01,
             0.8245472E+00,  0.1831916E+00,  0.5447178E+01,  0.8245472E+00,
             0.1831916E+00
      CS =   0.2093132E+01,  0.2936751E+01,  0.1801737E+01, -0.7473843E+00,
             0.7126610E+00,  0.2098285E+00,  0.2624092E+01,  0.3734359E+01,
             0.2353454E+01, -0.1047101E+01,  0.9685501E+00,  0.2766851E+00,
             0.3971513E+00,  0.5579200E+00,  0.1995672E+00,  0.3971513E+00,
             0.5579200E+00,  0.1995672E+00,  0.3971513E+00,  0.5579200E+00,
             0.1995672E+00
      CP =   0.0000000E+00,  0.0000000E+00,  0.0000000E+00,  0.1709178E+01,
             0.8856221E+00,  0.1857223E+00,  0.0000000E+00,  0.0000000E+00,
             0.0000000E+00,  0.2808586E+01,  0.1456735E+01,  0.2944871E+00,
             0.0000000E+00,  0.0000000E+00,  0.0000000E+00,  0.0000000E+00,
             0.0000000E+00,  0.0000000E+00,  0.0000000E+00,  0.0000000E+00,
             0.0000000E+00
 $END
 $OVERLAP   ! Overlap matrix elements in the AO basis
  0.10000000E+01  0.19144744E+00  0.10000000E+01  . . .
 $END
 $DENSITY   ! Bond-order matrix elements in the AO basis
  0.20363224E+01  0.11085239E+00  0.10393086E+00  . . .
 $END
 $FOCK      ! Fock matrix elements in the AO basis
 -0.11127777E+02 -0.28589754E+01 -0.89570272E+00  . . .
 $END
 $LCAOMO    ! AO to MO transformation matrix
 -0.57428375E-03 -0.23835711E-02  0.17741799E-02  . . .
 $END
 $DIPOLE    ! dipole matrix elements in the AO basis
 -0.14071733E+01 -0.26939974E+00 -0.14071733E+01  . . .
 $END



The nine lists of FILE47 are described in turn in the following sections, making use of this example for illustration.

B.7.3 $GENNBO Keylist

The $GENNBO keylist (required) contains keywords essential to the proper execution of the NBO program. The following is the list of keywords recognized by this keylist:

KEYWORD OPTION DESCRIPTION

REUSE Instructs GENNBO to reuse an old NBO direct-access file, FILE48, rather than create a new FILE48 from the wavefunction information contained in the FILE47 datalists. Therefore, if the REUSE keyword is specified, all datalists in FILE47 will be ignored, but the $NBO, $CORE, and $CHOOSE keylists will still be recognized. This keyword preempts all other keywords of the $GENNBO keylist.

NATOMS Number of atoms in the molecule (required).

NBAS Number of basis functions (required).

OPEN Designates an open shell wavefunction. GENNBO will subsequently read in alpha and beta density, Fock, and MO coefficient matrices.

ORTHO Indicates that the AO basis set is orthogonal (basis functions are always assumed normalized). If this keyword is specified, GENNBO will not read the $OVERLAP datalist. This keyword is incompatible with $NBO keywords for 'pre-orthogonal' basis sets (SPNAO, SPNHO, SPNBO, SPNLMO, AOPNAO, AOPNHO, AOPNBO, AOPNLMO).

UPPER Indicates that only the upper triangular portions of the overlap, density, Fock, and dipole matrices are listed in the their respective datalists. By default, GENNBO assumes that the full matrices are given.

BODM Indicates that the $DENSITY datalist contains the bond-order matrix ("Fock-Dirac density matrix") rather than the density matrix (i.e., matrix elements of the density operator). (In orthogonal AO basis sets, the bond-order matrix and density matrix are identical, but in nonorthogonal basis sets they must be distinguished.) By default, GENNBO assumes this datalist contains the density matrix elements. If "BODM" is included, the datalist elements are transformed with the AO overlap matrix to produce the true density matrix.

BOHR Indicates that the atomic coordinates ($COORD) and the dipole integrals ($DIPOLE) are in atomic units, rather than the default angstroms.

EV Indicates that the Fock matrix elements ($FOCK) have units of electron volts (eV), rather than the default atomic units (Hartrees).

CUBICF Instructs GENNBO to use the set of seven cubic f-type functions rather than the ten Cartesian or seven pure f functions (cf. Section B.7.5).

The methylamine sample $GENNBO keylist specifies 7 atoms, 28 basis functions, upper triangular matrix input, and $DENSITY datalist containing the bond-order matrix.

B.7.4 $COORD Datalist

The $COORD datalist (required, unless REUSE is specified in $GENNBO) contains the job title and information indicating the identity and coordinates of each atom, including missing core electrons or effective core potentials.

The first line following the $COORD identifier is an arbitrary job title, up to 80 characters.

Subsequent lines are used to specify the atomic number, the nuclear charge, and the (x,y,z) coordinates of each atom. [For example, atom 1 in the methylamine sample input is a carbon atom (atomic number 6) with nuclear charge 6 and coordinates x = -0.74464, y = -0.03926, z = 0.00000, in angstroms.] Coordinates are assumed to be in angstroms unless the BOHR keyword appears in the $GENNBO keylist, specifying atomic units. The atomic number and nuclear charge are generally identical, but if core electrons are neglected (as in most semi-empirical treatments) or if effective core potentials (ECP) are employed, the nuclear charge will be less than the atomic number by the number of electrons neglected on that particular atom. Thus, for an AMPAC calculation, in which the two 1s core electron of a carbon atom are neglected, the line following the job title in the methylamine example would read

   6    4    -0.74464   -0.03926    0.00000   ! Carbon

where "4" is the effective (valence) nuclear charge of the atom.

B.7.5 $BASIS Datalist

The $BASIS datalist (required, unless REUSE is specified in $GENNBO) provides essential information about the AO basis functions, specifying the atomic center and the angular symmetry (s, px, py, pz, etc.) of each AO. This information is contained in two arrays in this datalist called CENTER and LABEL.

The atomic center for each AO is specified by entering "CENTER=" followed by the serial number of the atom for each AO, separated by commas or spaces. [For example, the entry

   CENTER = 1,1,1,1,1,1,1,1,1,2,2,2,2,2,2,2,2,2,3,3,4,4,5,5,6,6,7,7

of the methylamine sample file indicates that the first 9 AOs (1-9) are centered on atom 1 (the carbon atom), the next nine AOs (10-18) on center 2, and so forth.]

The angular symmetry for each AO is specified by entering "LABEL=" followed by a symmetry label for each AO, separated by commas or spaces. The NBO program handles s, p, d, or f (l = 0-3) basis AOs, of either cartesian or pure angular symmetry types. The label for each AO is a 3-digit integer of the form l*100 + k + m, where k is 0 (cartesian) or 50 (pure), and m is a particular component of the l-type symmetry (see table below). For s or p AOs, the cartesian and pure l-symmetry sets are identical, so each AO can be labelled in two distinct ways, but the six cartesian d functions can be transformed to the five pure d functions plus an additional s function, and the ten cartesian f functions can be transformed to the seven pure f functions plus three additional p functions. Two distinct sets of pure f functions are recognized, the "standard" [default] set and the "cubic" set, the latter being used whenever the "CUBICF" keyword is included in the $GENNBO keylist. The labels associated with each allowed AO function type are tabulated below, where x, y, z refer to the specified cartesian axis system:


labelAO typelabelAO typelabelAO type

Pure s, p sets: Cartesian f set: Pure f "cubic" set:
1 (51)s301fxxx351f(D1): x(5x2-3r2)
101 (151)px302fxxy352f(D2): y(5y2-3r2)
102 (152)py303fxxz353f(D3): z(5z2-3r2)
103 (153)pz304fxyy354f(B): xyz
305fxyz355f(E1): x(z2-y2)
Cartesian d set: 306fxzz356f(E2): y(z2-x2)
201dxx307fyyy357f(E3): z(x2-y2)
202dxy308fyyz
203dxz309fyzz
204dyy310fzzz
205dyz
206dzzPure f "standard" set:
351f(0): z(5z2-3r2)
Pure d set: 352f(c1): x(5z2-r2)
251dxy353f(s1): y(5z2-r2)
252dxz354f(c2): z(x2-y2)
253dyz355f(s2): xyz
254dx2-y2356f(c3): x(x2-3y2)
255dz2 = d3z2-r2357f(s3): y(3x2-y2)

[For example, in the methylamine sample input, the first nine entries of the LABEL array,

    LABEL = 1,1,101,102,103,1,101,102,103,. . .

identify the first 9 AOs (of carbon) as being of s, s, px, py, pz, s, px, py, pz type, respectively.]

B.7.6 $CONTRACT Datalist

The $CONTRACT datalist (optional) contains additional information about the contraction coefficients and orbital exponents of AO basis functions. This information is not used in the NBO analysis of a wavefunction. However, if the AOINFO or PLOT keyword is specified in the $NBO keylist (See Section B.2.5), the GENNBO driver routines write out this information to an external file (LFN 31) in the proper format for orbital plotting with the ORBPLOT program. Omit the $CONTRACT datalist if you do not intend to make orbital plots.

Two integers must be initially given: NSHELL (the number of shells of basis functions) and NEXP (the number of orbital exponents). [In the methylamine example, there are 16 shells of basis functions and 27 orbital exponents.] These integers should precede the remainder of the basis set information of this datalist.

The number of components (basis functions) in each shell is specified in the NCOMP array. The sum of the components for each shell should equal the total number of basis functions. This list of components is a partitioning of the basis function centers and labels (in the $BASIS datalist) into shells. [For example, in the methylamine sample, the NCOMP array

    NCOMP = 1,4,4,. . .

indicates that the first three shells have a total of 9 (i.e. 1+4+4) basis functions. These are the 9 AOs (1-9) discussed previously in the $BASIS datalist.]

The NPRIM array gives the number of primitive gaussian functions of each shell. [For the methylamine example, the first three shells of the AO basis are contractions of

    NPRIM = 3,2,1,. . .

three, two, and one primitives, respectively, corresponding to the conventional "3-21G" basis set designation.]

Pointers for each shell are listed in the NPTR array. These pointers specify the location of the orbital exponents (EXP) and contraction coefficients (CS, CP, CD, CF) for each shell. [In the sample input file,

     NPTR = 1,4,6,. . .

the orbital exponents and contraction coefficients for the first three shells begin at elements 1, 4, and 6, respectively.]

EXP, CS, CP, CD, and CF are free format, real arrays containing the orbital exponents, and the s, p, d, and f contraction coefficients of the AO basis set. NEXP elements should appear in each array, and the arrays of contraction coefficients need only appear if there are basis functions of that particular symmetry in the basis set. [For example, the 3-21G basis of the sample methylamine input only has s and p basis functions. Therefore, the CD and CF arrays are not necessary.]

The information in the $CONTRACT datalist along with that in the $BASIS datalist is enough to completely determine the AO basis set. [For example, the second shell on the methylamine sample contains 4 basis functions (NCOMP). These are s, px, py, and pz orbitals (LABEL), all centered on atom 1 (CENTER), and each basis function is a contraction of two primitive gaussians (NPRIM). From NPTR, EXP, CS, and CP, we find the explicit form of these functions:

s(r)  = -0.747 e-3.66 r2  + 0.713 e-0.77 r2

px(r) = 1.709 x e-3.66 r2 + 0.886 x e-0.77 r2

py(r) = 1.709 y e-3.66 r2 + 0.886 y e-0.77 r2

pz(r) = 1.709 z e-3.66 r2 + 0.886 z e-0.77 r2

where r=(x,y,z) is measured in bohr units relative to the cartesian coordinates of atom 1.]

B.7.7 Matrix Datalists

The remaining datalists ($OVERLAP, $DENSITY, $FOCK, $LCAOMO, $DIPOLE) specify various matrix elements possibly used by the NBO analysis. All entries in these datalists are free format, with entries separated by commas or spaces. Only the upper triangular portions of each symmetric matrix (overlap, density, Fock, dipole) should be provided if the UPPER keyword is specified in the $GENNBO keylist. The numbering of the matrix rows and columns must correspond to the ordering of the AOs in the $BASIS datalist. All three matrices of dipole integrals should appear in the $DIPOLE datalist, all x integrals before y before z.

Of the matrix datalists, the $DENSITY datalist is always required, and the $OVERLAP datalist is required for all non-orthogonal AO basis sets, but other datalists are optional (unless implicitly required by specified keyword options). Nevertheless, it is good practice to include as many of these datalists in FILE47 as possible for later use with keyword options which require them. The following table lists the $NBO keywords that require each datalist to be included in FILE47:

Datalist $NBO Keywords Requiring the Datalist

$OVERLAP SAO, SPNAO, SPNHO, SPNBO, SPNLMO, AOPNAO, AOPNHO, AOPNBO, AOPNLMO

$FOCK E2PERT, FAO, FNAO, FNHO, FNBO, FNLMO

$LCAOMO AOMO, NAOMO, NHOMO, NBOMO, NLMOMO

$DIPOLE DIAO, DINAO, DINHO, DINBO, DINLMO, DIPOLE

$CONTRACT AOINFO, PLOT

For example, in the methylamine sample input, the keyword "NAOMO=PVAL" of the $NBO keylist requires that the $LCAOMO datalist be present (in addition to the $OVERLAP, $DENSITY, and $FOCK datalists used for default PRINT=2 analysis), but the $DIPOLE datalist might have been omitted in this case. Inclusion of the $LCAOMO datalist (in addition to the $FOCK datalist) insures that degenerate MOs will be chosen in a prescribed way for decomposition in terms of other functions.

Section C: NBO PROGRAMMER'S GUIDE

C.1 INTRODUCTION

Section C constitutes the programmer's guide to the NBO.SRC program. It assumes that the user has a thorough familiarity with Fortran programming and the operations of the NBO program (Sections A and B) as well as some familiarity with published algorithms for NAO/NBO/NLMO determination. This section is intended for the accomplished programmer who wishes to inquire into the details of the NBO numerical methods and find the specific source code associated with individual steps of the published NAO/NBO/NLMO algorithms or segments of NBO output.

The NBO.SRC program consists of about 20000 lines, of which more than 6000 are comment lines (approximately the length of this manual!). These comment statements provide the principal documentation of the steps within each subroutine or function, and should be consulted on questions pertaining to individual subprograms.

In this Programmer's Guide, we focus on global aspects of program organization and data structure. Individual subprograms (about 180 in number) are described in capsule form, in the order in which they appear in the source listing, to indicate the relationship to program tasks and the association with specific segments of NBO output. The capsule descriptions include mention [in brackets] of numerical thresholds or possible dependencies on machine precision that are of particular concern to the programmer. Throughout the Programmer's Guide, in referring to individual subprograms, we use the abbreviation "SR" for "subroutine" and "FN" for "function".

Sections C.2-C.4 describe the overall NBO.SRC source layout, labelled COMMON blocks, and I/O structures (including the FILE48 direct access file). Sections C.5-C.11 then follow the layout of the source code in describing the principal groupings of subprograms, with a brief description of each subprogram. Section C.12 similarly describes subprograms of the GENNBO stand-alone program. The final section C.13 provides guidance on attaching the NBO program to a new ESS package not supported by this distribution.

C.2 OVERVIEW OF NBO SOURCE PROGRAM GROUPS

The NBO.SRC program is organized into seven principal groups of routines (I-VII), described in Sections C.5-C.11, respectively, as shown below:


Groupdescriptionno.Section

I.NAO/NBO/NLMO routines61C.5
II.Energy analysis routines6C.6
III.Direct access file (DAF) routines41C.7
IV.Free format input routines7C.8
V.Other I/O routines27C.9
VI.General utility routines31C.10
VII.System-dependent routines(3)C.11

The routines of Groups I, II are associated with the two main tasks of the NBO program: (1) NAO/NBO/NLMO formation, and (2) NBO energetic analysis. Group II routines generally require Fock matrix information, and thus are restricted to RHF and UHF wavefunctions, whereas Group I are applicable to general wavefunctions. Each of these groups is controlled by a master subroutine (NBO and NBOEAN, respectively) of highest precedence, which in turn calls routines of secondary precedence (such as NAODRV, NBODRV, etc.) to control the task. Routines are generally clustered together under the subroutine of next higher precedence, and within each cluster, the order of routines generally corresponds to the chronological sequence in which the routines are called in execution.

The remaining Groups III-VI 'serve' various routines of Groups I-II, and are ordered more loosely by function, or alphabetically. Groups I-VI are system-independent, whereas Group VII contains the special drivers (RUNNBO, FEAOIN, DELSCF) for individual ESS programs, whose generic function is described in Section C.11. Further information on the ESS-specific forms of the Group VII driver routines is given in the Appendix.

A general overview of the subprograms of Groups I and II is shown in the accompanying flow chart, indicating the logical relationship of the routines to be discussed in Sections C.5, C.6. The sequence of execution is generally from top to bottom and from left to right, with subprograms of equal precedence shown at an equal vertical level.

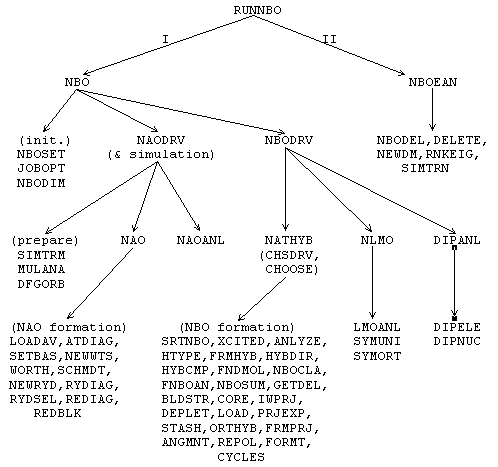

NBO Flow Chart for Group I, II Subprograms

C.3 LABELLED COMMON BLOCKS

The NBO programs contain eighteen labelled COMMON blocks to control information flow between subprograms (other than through explicit argument lists). Each COMMON block name begins with "NB" to minimize possible conflicts with a linked ESS program.

The eighteen COMMON blocks can be divided into six 'primary' and twelve 'secondary' blocks, with regard to claim on the programmer's attention. The 'primary' COMMON blocks 1-6 (/NBINFO/, /NBFLAG/, /NBOPT/, /NBAO/, /NBATOM/, and /NBIO/) contain variables that must be set by the ESS-specific driver routine FEAOIN, or by an equivalent interface provided by the programmer. The remaining 'secondary' blocks 7-18 are for internal communication only, and are ordinarily of lesser concern.

The dimensions of COMMON block arrays are fixed by PARAMETER declarations of the form

     PARAMETER(MAXATM = 99,MAXBAS = 500)

where MAXATM and MAXBAS are, respectively, the maximum allowed numbers of atoms and basis functions. These program limits can therefore be simply altered. There is no difficulty in decreasing either of these values, or in increasing MAXBAS (up to 999). However, the program cannot readily adapt to MAXATM > 99, since this would result in format overflows in orbital labels throughout the output.

All entries of a given COMMON block are generally of the same numeric type (INTEGER, LOGICAL, etc.), as specified below. The names (dummy), and meaning of variables in each primary COMMON block 1-6 are described briefly, with an asterisk (*) marking the items that must be passed from the external ESS program via driver routines:

1. COMMON/NBINFO/

The INTEGER variables of this block store general information related to basis set dimensionality, spin manifold, number of atoms, and energy units:


variablemeaning

ISPIN+2 for spin, -2 for spin
*NATOMSnumber of atoms ( MAXATM)
*NDIMdeclared dimensionality of matrices (overlap, density, etc.)
*NBASnumber of basis AOs ( NDIM MAXBAS)
MXBOmaximum number of AOs per 2-c or 3-c NBO
MXAOmaximum AOs per atom
MXAOLMmaximum AOs of the same symmetry per atom
*MUNIT0 for Hartree energy units, 1 for eV units, 2 for kcal/mol.

2. COMMON/NBFLAG/

The LOGICAL variables of this block are set .TRUE. or .FALSE. depending on whether the "condition" (type of wavefunction, spin set, etc.) is satisfied:


variable (FLAG)condition that FLAG=.TRUE.

*ROHFRestricted open-shell Hartree-Fock wavefunction
*UHFUnrestricted Hartree-Fock wavefunction
*CIConfiguration Interaction wavefunction
*OPENopen-shell calculation
*COMPLXcomplex-valued wavefunction (not currently implemented)
ALPHA spin set
BETA spin set
*MCSCFMulti-Configuration Self-Consistent-Field wavefunction
*AUHFSpin-Annihilated UHF wavefunction
*ORTHObasis set is orthonormal

Note (Section B.6.11) that both and spin density matrices should be available if OPEN is set '.TRUE.' for the open-shell case.

3. COMMON/NBOPT/

The INTEGER variables (flags) of this block are used for storing the keyword options selected by the user in the $NBO keylist. In many cases, a variable of the form IWOPT ("IW" stands for "I Want") is set to one or zero (or to some Hollerith content; see below) depending on whether the "requested option" has been specified or not. The table also lists the keyword (if any) that requests the option:


variablekeywordrequested option

*IWDMBODM1 to transform input bond-order matrix, 0 otherwise
IW3C3CBOND3-center bonds
IWAPOL 'apolar' bonds, cA = cB (not used)
IWHYBS$NBOset equal to JPRINT(5)
IWPNAO(PAOPNAO)PAOPNAO transformation
IWTNAOAONAOAONAO transformation
IWTNABNAONBONAONBO transformation
IWTNBOAONBOAONBO transformation
IWFOCK +1 if Fock matrix available on DAF, 0 otherwise
*IWCUBFCUBICFcubic f functions
*IPSEUD effective core potential
KOPT (not used)
IPRINTPRINT=nprint level
IWDETLDETAILdetailed output
IWMULPMULATMulliken population analysis
ICHOOS$CHOOSEdirected NBO ($CHOOSE) search
JCORE$COREuser-specified core list
JPRINT(60)variousprinting option flags

The keyword associated with each element I=1-54 of the JPRINT array is shown below (55-60 are not currently used):

JPRINT(I) associated keywords:

IkeywordIkeywordIkeywordIkeyword

1SKIPBO15FNLMO29FNHO43PLOT
2version16DMNBO30AOPNHO44AOPNAO
3E2PERT17DMNLMO31FNAO45NBOMO
4NPA18NAONLMO32(reserved)46DIPOLE
5NBO19SPNAO33NAONHO47NBONLMO
6NBOSUM20SPNHO34DMNHO48SPNLMO
7ARCHIVE21SPNBO35DMNAO49AOPNLMO
8NLMO22AOINFO36BEND50DIAO
9NAOMO23AONLMO37FNBO51DINAO
10NOBOND24NHONLMO38NHOMO52DINHO
11RPNAO25AOPNBO39SAO53DINBO
12BNDIDX26AOMO40FAO54DINLMO
13NLMOMO27DMAO41NHONBO55-60(not used)
14RESONANCE28AONHO42BOAO

In general, if the flag is set to zero, its associated keyword option has not been specified. However, if an option is requested, its flag can be set to a variety of positive, negative, or Hollerith values, depending on the parameters specified with the keyword option. In particular, the option flags associated with the matrix output keywords, described in Section B.2.4, are set according to the following scheme:


valueeffect

0Do nothing
0 < nPrint n columns of the matrix
-1000 < n < 0Write matrix to external file |n|
n < -999Read matrix from external file |n/1000|
'FULL'Print the full matrix to the output file
'VAL'Print only core plus valence orbitals
'LEW'Print only the occupied (Lewis) orbitals

4. COMMON/NBAO/

The INTEGER arrays of this block store information on the atomic centers and angular symmetry of each AO:


variablemeaning

*LCTR(MAXBAS)list of atomic centers of the basis AOs
(LCTR(3)=2 if AO 3 is on atom 2)
*LANG(MAXBAS)angular symmetry labels (Sec. B.7.5) of the basis AOs

5. COMMON/NBATOM/

The INTEGER arrays of this block store information about the orbitals on each atomic center:


variablemeaning

*IATNO(MAXATM)atomic number for each atom
INO(MAXATM)number of atomic hybrids on each atom
NORBS(MAXATM)number of AOs on each atom
LL(MAXATM)number of the first NAO on each atom
LU(MAXATM)number of the last NAO on each atom
*IZNUC(MAXATM)nuclear charge on each atom ( IATNO)
IATCR(MAXATM)atomic core list for modified $CORE table

6. COMMON/NBIO/

The INTEGER variables of this block are the stored default logical file numbers for I/O operations. The table below identifies the value (default file assignment) and the contents of the file associated with each LFN (cf. Section B.2.4):


LFNvaluefile contents

*LFNIN standard ESS input file
*LFNPR standard ESS output (print) file
LFNAO31AO info file
LFNPNA32AOPNAO transformation
LFNNAO33AONAO transformation
LFNPNH34AOPNHO transformation
LFNNHO35AONHO transformation
LFNPNB36AOPNBO transformation
LFNNBO37AONBO transformation
LFNPNL38AOPNLMO transformation
LFNNLM39AONLMO transformation
LFNMO40AOMO transformation (LCAO-MO coeffs.)
LFNDM41density matrix in AO basis
LFNNAB42NAONBO transformation
LFNPPA43PAOPNAO transformation
LFNGEN47'archive' file
LFNDAF48direct access file (DAF)
LFNDEF49'default' for other file output

The remaining 'secondary' COMMON blocks 7-18 contain variables that remain wholly within the system-independent code, and thus can be ignored with respect to interfacing to a new ESS. Blocks 7-13 involve communication with the Group I, II subprograms, whereas blocks 14-18 are wholly within the 'support' routines of Groups III-VII.

7. COMMON/NBBAS/

The INTEGER arrays of this block generally store information about the atomic, bond, and molecular units with which the NBOs or NAOs are associated. The meaning of all entries in COMMON/NBBAS/ changes between the NAO and NBO segments of the program, so this block functions virtually as 'scratch storage,' and its entries must be approached with extreme caution! The following table indicates the meaning of COMMON/NBBAS/ entries during NBO segments (only!):


variablemeaning

LABEL(MAXBAS,6)NBO label information (lbl; *; bond no.; at1; at2; at3)
NBOUNI(MAXBAS)molecular unit of each NBO
NBOTYP(MAXBAS)no. centers + 10 (if low-occ LP) + 20 (if BD* or RY*)
LSTOCC(MAXBAS)1 (NMB) or 0 (NRB) NAO labels
IBXM(MAXBAS)NBO label permutation list
LARC(MAXBAS)re-ordering list
LBL(MAXBAS)atomic center of AO
LORBC(MAXBAS)angular momentum label of AO
LORB(MAXBAS)(variable)

8. COMMON/NBTHR/

The DOUBLE PRECISION variables of this block store the default values of various numerical thresholds that can be set by the user:


variablemeaning

THRSETNBO occupancy threshold
PRJSETprojection threshold
ACCTHRthreshold [0.1] for assigning acceptor orbital NBOTYP
CRTSETthreshold for core-occupancy warning
E2THRminimum E for 2nd-order energy analysis printing
ATHRminimum bend angle for BEND printing
PTHRminimum % p-character for BEND printing
ETHRminimum NBO occupancy for BEND printing
DTHRminimum dipole moment for DIPOLE printing

9. COMMON/NBLBL/

The INTEGER variables of this block store the number of orbitals associated with the "LEW" and "VAL" print parameters (Section B.2.4) and the 10 Hollerith fragments required to compose each of the 4 possible types of localized orbital labels (AO, NAO, NHO, NBO):


variablemeaning

NLEWnumber of Lewis NBOs (= number of occupied MOs)
NVALnumber of minimal basis (NMB) NAOs
LBL(10,MAXBAS,4)label fragments (AO; NAO; NHO; NBO)

10. COMMON/NBNAO/

The INTEGER arrays of this block store information pertaining to the labelling of NAOs in the NPA output:


variablemeaning

NAOC(MAXBAS)atomic center of each NAO
NAOA(MAXBAS)angular symmetry label (Sec. B.7.5) of each NAO
LTYP(MAXBAS)'Cor', 'Val', or 'Ryd' label for each NAO
IPRIN(MAXBAS)principal quantum number (n) of each NAO

11. COMMON/NBMOL/

The INTEGER scalars, vectors, and arrays of this block store information pertaining to "molecular units":


variablemeaning

NMOLECnumber of molecular units
MOLAT(MAXATM)molecular unit of each atom
MOLEC(MAXATM,MAXATM)list of atoms (J) in each molecular unit (I)
NMOLAscratch storage for open-shell case
MOLATA(MAXATM)scratch storage for open-shell case
MOLECA(MAXATM,MAXATM)scratch storage for open-shell case

12. COMMON/NBTOPO/

The INTEGER variables of this block contain atom search lists to direct the search for NBOs and information pertaining to the 'topology' (bond connectivity) of the molecule:


variablemeaning

IORDER(MAXATM)permuted atom order for NBO search
JORDER(MAXATM)atom ordering for 'best' resonance structure
NTOPO(MAXATM,MAXATM)number of bonds between atoms I,J
(or number of lone pairs on I, if I = J)
N3CTRnumber of 3-center bonds ( 10)
IC3TR(10,3)the 3 atoms of each 3-c bond

13. COMMON/NBDXYZ/

The DOUBLE PRECISION variables of this block store information pertaining to the molecular dipole moment and charge distribution:


variablemeaning

XDIPx-component of molecular dipole moment ( spin)
YDIPy-component of molecular dipole moment ( spin)
ZDIPz-component of molecular dipole moment ( spin)
CHARGE(MAXATM)list of 'uncompensated' nuclear charges (dipole loops)

14. COMMON/NBCRD1/

The INTEGER variables of this block store general information related to the 'card image' (line) being processed by the free-format input routines:


variablemeaning

ICD(80)array of Hollerith characters ( 80) of the input line
LOOK(80)scratch buffer for card image
LENGTHlength of the non-blank string in LOOK
IPTpointer to current location in ICD
LFNinput file assignment
NEXPexponent of a number in exponential format

15. COMMON/NBCRD2/

The LOGICAL variables of this block store information related to the current line being read by the free-format input routines. In each case, the variable is set .TRUE. if the specified condition is met:


variablecondition that variable is .TRUE.

POINTa number containing a decimal point is present
ENDword 'END' or EOF has been encountered
NEXTready for reading next word in line (ICD)
EXPa number in exponential notation is present

16. COMMON/NBODAF/

The INTEGER variables of this block store information related to the NBO direct access file (FILE48). The PARAMETER statement

     PARAMETER (NBDAR = 100)

sets the maximum number of logical records accessible in FILE48:


variablemeaning

INBOlogical file number [48] for DAF
NAVlast-accessed physical record of DAF
IONBO(NBDAR)mapping of physical and logical record numbers

17. COMMON/NBONAV/

The INTEGER variables of this block provide scratch storage for writing to the NBO direct access file (FILE48). The PARAMETER statement

     PARAMETER (ISINGL = 2, LENGTH = 256)

sets the FILE48 physical record LENGTH to 256 longwords (1024 bytes):


variablemeaning

IXDNBO(LENGTH)scratch array for DAF writes
NBNAVnumber of physical records in IXDNBO

18. COMMON/NBGEN/

The LOGICAL variables of this block store information related to running the GENNBO program in stand-alone mode. In each case, the variable is set .TRUE. if the specified condition is met:


variablecondition that variable is .TRUE.

REUSE"REUSE" keyword requests use of an existing DAF
UPPER"UPPER" keyword specifies upper-triangular matrices
BOHR"BOHR" keyword specifies atomic units of length
DENOPdensity matrix is provided (i.e., "BODM" not set)

C.4 DIRECT ACCESS FILE AND OTHER I/O

The principal I/O routines of Groups III-V are described in Sections C.7-C.9. The input to the NBO programs is primarily from the standard ESS input file (LFN 5), and the output is primarily to the standard ESS output file (LFN 6). Other "matrix output" (read/write) I/O is by default assigned to LFNs 31-49 (see Table of Section B.2.4), or to a user-selectable LFN, based on keyword entries in the $NBO keylist.

The remaining two files that are routinely created or modified by the NBO programs are the FILE48 direct access file (LFN 48) and the FILE47 'archive' file (LFN 47, described in Section B.7). The latter file can also serve as the main input file (reassigned as LFN 5) when the NBO program is run in stand-alone GENNBO mode.

From the programmer's viewpoint, the most important information concerns the organization of the FILE48 direct access file. The records of this file are assigned as shown in the following table. The items marked with an asterisk (*) must be provided from the ESS program (e.g., through the FEAOIN driver), and hence are of particular importance to the programmer:


record content

1 NBODAF common block
2 *Job title
3 *NATOMS,NDIM,NBAS,MUNIT,wavefunction flags
4 *IATNO,IZNUC,LCTR,LANG
5 *AO basis set info
8 *Deletion energy, total energy
9 *Atomic coordinates
10 *AO overlap matrix
11 PNAO overlap matrix
20 *AO density matrix (alpha)
21 *AO density matrix (beta)
22 Pure AO density matrix
23 NAO density matrix (alpha)
24 NAO density matrix (beta)
25 AO density matrix with NBO deletions (alpha)
26 AO density matrix with NBO deletions (beta)
27 NBO occupancies (alpha)
28 NBO occupancies (beta)
30 *AO Fock matrix (alpha)
31 *AO Fock matrix (beta)
32 NAO Fock matrix (alpha)
33 NAO Fock matrix (beta)
34 NBO Fock matrix (alpha)
35 NBO Fock matrix (beta)
40 *AO to MO transformation matrix (alpha)
41 *AO to MO transformation matrix (beta)
42 AO to PNAO transformation matrix
43 AO to NAO transformation matrix
44 AO to NBO transformation matrix (alpha)
45 AO to NBO transformation matrix (beta)
46 AO to NLMO transformation matrix
47 NAO to NHO transformation matrix
48 NAO to NBO transformation matrix
49 NBO to NLMO transformation matrix
50 *X dipole integrals
51 *Y dipole integrals
52 *Z dipole integrals
60 NBO labels (alpha)
61 NBO labels (beta)

[Cartesian coordinates (record 9) and dipole integrals (records 50-52) should be in angstrom units.]

The direct access file serves as a principal medium of communication between all segments of the NBO program. Input received from the ESS program (Section C.11) is immediately saved in the direct access file and subsequently fetched by other subprograms, using the fetch/save I/O routines of Section C.7. Further information on the structure of the direct access file is specified in COMMON blocks 16, 17 of Section C.3.

C.5 NAO/NBO/NLMO ROUTINES (GROUP I)

C.5.1 SR NBO Master Subroutine

The subroutine of highest precedence in the core NBO program is SR NBO. This routine initially requests that the input file be searched for the $NBO keylist (See NBOINP, Section C.9). If found, SR NBO continues by calling three main clusters of programs, as shown below:

                    SR NBO(CORE,MEMORY,NBOOPT)

Job InitializationNAO FormationNBO/NLMO Formation
RoutinesRoutinesRoutines
(Sec. C.5.2)(Sec. C.5.3)(Sec. C.5.4)
In addition, SR NBO creates a new NBO direct access file (DAF) each time it is called, and closes this file upon completion (See NBOPEN and NBCLOS, Section C.9).

SR NBO is provided a memory vector, CORE, which is 'MEMORY' double precision words in length. For modest-sized calculations (e.g. 10 heavy atoms with a double-zeta basis set), a vector of 50,000 words should be adequate. Although SR NBO performs an initial partitioning of this memory vector, the majority of the dynamic memory allocation occurs in the NAO and NBO/NLMO formation routines, described in Sections C.5.3 and C.5.4.

An array of job options, NBOOPT(10), is also passed to SR NBO. These job options identify the current version of the NBO program (i.e., the identity of the ESS calling program), control program input and execution, and determine several of the default options of the NBO analysis, as summarized in the following table. [Entries marked with an asterisk (*) contain information pertaining to the identity or job options of the calling ESS program, and thus are of special concern to the programmer.]

OPTION
ENTRY DESCRIPTION

*
NBOOPT(1)
-2 Do nothing (return control to calling program)
-1 Perform Natural Population Analysis (NPA) only
0 Perform NPA/NBO/NLMO analyses, normal program run
1 Perform NPA/NBO/NLMO analyses, don't read $NBO keylist
2 Initiate energetic analysis, read one deletion from $DEL
3 Complete energetic analysis, print the energy change

*
NBOOPT(2)
0 SCF density
1 MP first order density
3 MP2 density
4 MP3 density
5 MP4 density
6 CI one-particle density
7 CI density
8 QCI/CC density
9 Density correct to second order

NBOOPT(3)
1 Perform the NBO/NLMO dipole analysis (force the DIPOLE keyword)

NBOOPT(4)
1 Allow strongly delocalized Lewis structures (force the RESONANCE keyword)

NBOOPT(5)
1 Spin-annihilated UHF (AUHF) wavefunction (unused)

NBOOPT(6-9) (unused)

*
NBOOPT(10)
0 General version of the NBO program (GENNBO)
1 AMPAC version
6 GAMESS version
7 HONDO version
8x GAUSSIAN-8x version

These options are read by job initialization routines (Section C.5.2) and stored in COMMON/NBOPT/, where they control events throughout the program. [Note that NBOOPT(2) is only used by the Gaussian versions.]

C.5.2 Job Initialization Routines

The routines of this section initialize the default options and parameters, read and store the user's $NBO keyword options:

This routine sets default option flags (COMMON/NBOPT/), default logical file numbers (COMMON/NBIO/), and default thresholds (COMMON/NBTHR/) for the NBO program. In addition, SR NBOSET interprets the NBOOPT array, setting option flags appropriately.

This routine is primarily responsible for reading and setting option flags (COMMON/NBOPT/) according to the keywords specified in the $NBO keylist. It reads the $NBO keywords using the free format routines described in Section C.8, continuing until the word "$END" terminates the keylist. Options which are incompatible with the chosen wavefunction or program version are 'shut off', and other options are 'turned on' in accord with the requested print level ($NBO keyword PRINT). All keywords which are selected in the $NBO keylist are echoed in the output file.

Determines the scratch memory requirements of the NBO program, as determined by the options selected in the $NBO keylist. Program execution halts if the memory requirements exceed the available memory.

C.5.3 NAO Formation Routines

The principal task of this cluster of routines is to control the formation of the NAOs from the input AO basis. In addition, these routines are responsible for the writing (to an external file) or printing (to the output file) of a variety of matrices in the AO, PNAO, and NAO basis sets, according to job options requested in the $NBO keylist. The first set of routines are called by SR NBO:

SR NAODRV(DM,T,A)
This is the principal controller routine for non-orthogonal basis sets. The scratch vector A is partitioned within this routine according to the memory requirements of the NAO subprograms.

SR NAOSIM(DM,T,A)
This routine 'simulates' SR NAODRV in the case of a semi-empirical calculation, where the (orthonormal) basis AOs are the presumed effective valence shell atomic orbitals, and no NAO transformation is needed.

SR DMNAO(DM,T,A)
Performs the transformation and analysis of the open-shell AO density matrix (alpha or beta spin) to the NAO basis. This routine employs the AO to NAO transformation, T, determined by SR NAODRV:

SR DMSIM(DM,T,A)
Simulates SR DMNAO for the open-shell semi-empirical case, when no transformation is required.

SR NBODRV(DM,T,A)

Principal driver program for NBO formation; Section C.5.4.

The next set of routines are called by the main NAO driver, SR NAODRV. They include the principal subroutine, SR NAO, which generates the NAOs:

SR SIMTRM(A,S,V,NDIM,N,IWMULP,IWCUBF)
>> Performs the similarity transformation St*A*S leading to Mulliken populations, with S = overlap matrix, A = bond-order matrix.

SR MULANA(BS,VMAYER,BMAYER,IWMULP,IWCUBF)
Evaluates Mulliken gross populations and performs Mayer-Mulliken bond-order analysis (requires bond order matrix).

SR DFGORB(RENORM,DM,T,ITRAN,IWCUBF,ITOPT,LFNPR)
Performs the decomposition of 'raw' cartesian d, f, or g AO sets to pure angular symmetry AOs (e.g., 6 cartesian d 5 pure d + 1 s); cf. Section B.7.5.

SR NAO(T,S,OCC,BLK,SBLK,EVAL,C,EVECT,EVAL2,LISTAO,NBLOCK)
This is the principal routine for formation of NAOs, following closely the algorithm described by A. E. Reed, R. B. Weinstock, and F. Weinhold, J. Chem. Phys. 83, 735-746 (1985).

SR NAOANL(DM,SPNAO,BINDEX,BINDT,OVPOP,F,ENAO)
This is the principal routine for performing and printing out natural population analysis (NPA). The routine assigns orbital labels and energies and writes out the NPA, natural electron configuration (NEC), NAO-Wiberg bond index and overlap-weighted bond population tables. [Thresholds TEST, TEST2, ALLOW, ALLOW2 test for numerical conservation of an integer number of electrons.]

SR FRMTMO(T,TMO,C,SCR,INDEX,NCOL)

Forms and outputs NCOL columns of the transformation matrix to MOs from a chosen localized set, specified by INDEX = 2 (NAO), 3 (NHO), 4 (NBO), or 5 (NLMO). Input matrix T is the transformation from AOs to the basis set specified by INDEX, and matrices TMO, C, and SCR are scratch arrays employed by this routine.

The remaining routines of this section are auxiliary subroutines called by SR NAO to perform individual steps of the NAO algorithm:

SR LOADAV(LISTAO,NL,M,S,NDIM,A,B,MXAOLM)
Averages the AO density matrix elements over the 2l + 1 components of l for a particular atom, and loads the density matrix and overlap integrals for the orbitals of LISTAO into matrices A, B, respectively.

SR ATDIAG(N,A,B,EVAL,C)
Solves the generalized eigenvalue problem (A - EVAL*B)*C = 0 to diagonalize an atomic block.

SR SETBAS(LSTOCC,LSTEMT,NOCC,NEMT,IAT,L,NL,NF,NDIM)
Selects the 'occupied' NAOs to be included in the natural minimal basis set for a particular atom (up to Z = 105) and angular momentum symmetry type (L), and stores them in LSTOCC.

SR NEWWTS(S,T,WT)

Recomputes symmetry-averaged occupancy weights for PNAOs. This routine is only used in conjunction with the 'PAOPNAO=R' keyword.

SR WORTH(S,T,BLK,LIST,NDIM,NBAS,N,OCC,EVAL,BIGBLK)
This subroutine implements the occupancy-weighted symmetric orthogonalization (OWSO), a key feature of the NAO algorithm. [Note that BLK and BIGBLK share the same storage area, though they are dimensioned differently. The routine includes three numerical thresholds, WTTHR (10-3) for occupancy weight, DIAGTH (10-12) for Jacobi diagonalization, and DANGER (103) for linear dependence difficulties.]

SR SHMDT(T,S,NDIM,NBAS,NOCC,LSTOCC,NEMT,LSTEMT,SBLK)
Schmidt orthogonalization of column vectors of T.

SR NEWRYD(T,S,TPNAO,DMBLK,SBLK,EVECT,OCC,EVAL,EVAL2,LIST,IRPNAO)

Computes new Rydberg NAOs after Schmidt orthogonalization of the Rydberg space to the NMB set.

SR RYDIAG(T,S,TPNAO,DMBLK,SBLK,OCC,EVAL,EVECT,EVAL2,

IORB,NC,NM,NSTART,NRYDC,LARC,LIST,IRPNAO) Diagonalizes an atomic Rydberg block and updates the PNAO transformation matrix.

SR RYDSEL(LSTEMT,NEMT,NSEL1,LIST1,NSEL2,LIST2,WT)
Partitions Rydbergs into 'significantly occupied' (> WTTHR) and 'negligibly occupied' ( WTTHR) sets, assigning the latter to have equal (non-zero) occupancy weighting. This avoids numerical singularities associated with the OWSO occupancy weighting for orbitals of negligible occupancy, effectively replacing OWSO by ordinary Löwdin-orthogonalization of these 'residual' Rydbergs among themselves. [Threshold WTTHR (10-4) controls singularities of the inverse square-root weighting matrix.]

SR REDIAG(DM,T,TPNAO,EVAL,BLK,C,IRANK,IRPNAO)
Rediagonalizes the atomic density matrix blocks after symmetry averaging.

SR REDBLK(T,TPNAO,IL,DM,BLK,EVAL,C,NF,IORB,NC,IRANK,IRPNAO)
Finds the rediagonalization transformation for a specific l-symmetry atomic subblock of the density matrix.

C.5.4 NBO/NLMO Formation Routines

The master routine of this cluster is SR  NBODRV(DM,T,A), which partitions the scratch storage vector (A) according to the memory requirements of the NBO formation and analysis subprograms and controls the calculation of the transformation (T) from NAOs to NBOs using the NAO density matrix (DM). SR NBODRV calls either SR NATHYB (for the default NBO search) or SR CHSDRV (for the $CHOOSE directed NBO search) to form the NBOs. It also calls the NLMO formation routine (SR NLMO) and dipole analysis routine (SR DIPANL). According to job options selected in the $NBO keylist, SR NBODRV also transforms and outputs a variety of matrices in the PNHO, NHO, PNBO, NBO, PNLMO, and NLMO basis sets. [Note that the first NATOMS*NATOMS elements of the A vector store the Wiberg bond index elements determined in the NAO routines; these should not be destroyed until calculation of NBOs is complete.]

The following routines are called by SR NBODRV:

SR NATHYB(DM,T,GUIDE,BNDOCC,POL,Q,V,BLK,C,EVAL,BORB,

P,TA,HYB,VA,VB,TOPO) This routine performs the basic NBO search, the central task of NBO analysis, closely following the description given by J. P. Foster and F. Weinhold, J. Am. Chem. Soc. 102, 7211-7218 (1980). The routine constructs the orthogonal matrix (T) for the NAO to NBO transformation from the input NAO density matrix (DM). The efficiency of the search procedure is enhanced by using the NAO-Wiberg bond index as a 'GUIDE' to order the NBO search.

[Beware the IBXM bond orbital permutation list (!), which reorders the LABEL array of COMMON/NBBAS/. The occupancy threshold, THRESH, determines whether an NBO is accepted during the search for bond orbitals (cf. SR CYCLES). Two numerical thresholds (PRJTHR, PRJINC) control possible linear dependencies: In the main loops over 1-c, 2-c (and 3-c) functions, each prospective NBO is checked for possible redundancy with previous NHOs by the PRJEXP (projection operator expectation value) test. The threshold PRJTHR for a 'new' hybrid is initially set conservatively low (0.20), but will be auto-incremented by PRJINC (0.05) as needed to prevent linear dependency; any numerical singularity triggers IALARM and causes PRJTHR to be incremented and the entire NBO search repeated.]

SR CHSDRV(DM,T,GUIDE,BNDOCC,POL,Q,V,BLK,C,EVAL,BORB,

P,TA,HYB,VA,VB,TOPO) This routine, the "$CHOOSE driver," reads the $CHOOSE keylist, setting up the arrays NTOPO and I3CTR of COMMON/NBTOPO/ which will control the directed NBO search of SR CHOOSE.

SR CHOOSE(DM,T,GUIDE,BNDOCC,POL,Q,V,BLK,C,EVAL,BORB,

P,TA,HYB,VA,VB,TOPO,IFLG) This routine is essentially similar to SR NATHYB, but the search loops are directed by the $CHOOSE specification.

SR SRTNBO(T,BNDOCC)
Reorders (dangerous!) the NBOs according to bond type and constituent atomic centers. NBOs are ordered BD (and 3C), CR, LP, LP*, RY*, BD* (and 3C*). Note that this step is not required for the proper execution of any of the NBO analysis or NLMO formation routines, but it leads to more readable output.

SR XCITED(DM,T,HYB,THYB,S,OCC,SCR,ISCR)
Examines PNHO overlaps to determine whether NBOs were properly labelled as 'bonds' (unstarred, Lewis) or 'antibonds' (starred, non-Lewis) in the NBO formation routines (SR NATHYB and SR CHOOSE). If incorrect nodal character is recognized in a bond or antibond (generally indicative of an excited state), a warning is printed and the orbital is relabelled. Note that this will probably mix the NBO ordering set by SR SRTNBO.

SR ANLYZE(T,BNDOCC,HYB,HYCOEF,THYB)
Prints out the principal table (Section A.3.3) of NBO analysis [using the IBXM ordering!], expressing each NHO in sp form.


SR HTYPE(HYB,LTYP,MXAO,NH,COEF,PCT,NL,ISGN)

Analyzes input hybrid for polarization coefficient and percentages of each angular momentum component (accepts up to g orbitals).

SR FRMHYB(HYB,THYB,COEFF,HYCLEF,KL,KU,NHYB)

Forms the NAO to NHO transformation (THYB) and saves it on the DAF.

SR HYBDIR(BNDOCC,ATCOOR,THYB,TBND,SCR)
Computes hybrid directionality and bond bending angles as determined from percentage p-character for selected NBOs, and prints the BEND table (Section A.3.4). [Keyword-selectable thresholds ATHR (angular deviation), PTHR (% p-character), and ETHR (occupancy) control printing.]

SR HYBCMP(XYZ,PCENT,IHYB,JCTR,HYB)
Finds direction and percentage p-character of a given hybrid.

SR FNDMOL(IATOMS)
Finds 'molecular units' from NBO connectivity.

SR NBOCLA(BNDOCC,ACCTHR)
Classifies NBOs according to donor/acceptor type, number of atomic centers, and parent molecular unit.

SR FNBOAN(BNDOCC,F,MOLNBO)
Performs the 2nd-order perturbation theory energy analysis of the NBO Fock matrix and prints the table (Section A.3.5). [Thresholds ETHR1 (intramolecular) and ETHR2 (intermolecular) control printing.]

SR NBOSUM(F,BNDOCC,LIST,LISTA,SCR)
Prepares and prints the NBO summary table (Section A.3.6).

SR GETDEL(IBO,OCC,THR1,THR2,NL,LIST,DEL,DELOC,IFLG)

Assembles the delocalization list, LIST(NL), for the IBOth NBO. Only intramolecular and intermolecular delocalizations which are stronger than THR1 and THR2 (in kcal mol-1), respectively, are included in the list.

SR BLDSTR(IBO,IL,NL,LIST,ML,ISTR)
Builds a character string containing delocalization information for the NBO summary table.

SR NLMO(N,A,EVAL,EVEC,TSYM,RESON,NOCC,IALARM)

This is the main routine for determination of the NLMOs, following closely the description given by A. E. Reed and F. Weinhold, J. Chem. Phys. 83, 1736-1740 (1985). [Numerical thresholds DIFFER (10-5), DONE (10-10), and EPS (10-11) control the modified Jacobi diagonalizations.]

SR LMOANL(T,S,RESON,OCC,TS,BORDER,OWBORD,ATLMO,SIAB,NOCC,NAB)

Prints out details of the NAONLMO transformation and the NAO/NLMO bond order table (Section B.6.2).

SR DIPANL(DM,T,C,TNBO,DX,DY,DZ,SCR,INDEX)
Calculates and prints out the DIPOLE analysis table (Section B.6.3).

SR DIPELE(DXYZ,C,T,SCR,ETA,TOANG,NOCC,INDEX)
Evaluates the x,y,z (INDEX = 1,2,3) electronic dipole moment contributions, including delocalization contributions, for each occupied NBO.

SR DIPNUC(DX,DY,DZ,ATCOOR,ETA,NOCC)

Evaluates the nuclear contributions (DX, DY, DZ) to the molecular dipole moment.

The following routines are called by SR NATHYB and SR CHOOSE in calculating the NBOs. Overall supervision of this set of routines is exercised by SR CYCLES. Other routines are associated with specific steps of the NBO algorithm:

SR CORE(DM,T,BORB,POL,Q,HYB,BNDOCC,IBD,DETAIL,LFNPR)

Performs the first step in the search for NBOs. This routine identifies core orbitals and depletes the NAO density matrix of their contributions.

FN IWPRJ(NCTR)
This function returns zero (no projection wanted) if still on the same atomic center, or one (projection operator should be formed) if this is a new center.

SR DEPLET(DM,T,Q,POL,BORB,BNDOCC,NBD)
'Depletes' density matrix of contribution from bond orbital (BORB), by subtracting its diagonal contribution from the spectral expansion of the density operator. This insures that the same electron pair will not be found twice in the NBO loops.

SR LOAD(DM,IAT1,IAT2,IAT3,BLK,NB)
Loads the appropriate atomic blocks of the density matrix into the local (2-c, 3-c) density matrix subblock (BLK), in preparation for diagonalization.

SR PRJEXP(BORB,IAT1,IAT2,IAT3,Q,P,PK,HYB,VA,VB,HYBEXP)

Determines how much of a prospective bond orbital (BORB) is composed of hybrids already used. The projection operator onto the space of previously accepted hybrids is used to evaluate the expectation value of each hybrid component of BORB.

SR STASH(BORB,IBD,IAT1,IAT2,IAT3,POL,Q,HYB)

Decomposes bond orbital (BORB) into constituent normalized hybrids and stores them in the hybrid array (Q).

SR ORTHYB(Q,S,TA,EVAL,C,IALARM,IFLG)

Performs symmetric (Löwdin) orthogonalization on occupied atomic hybrids (PNHOs) to give final NHOs. [Threshold TOOSML (10-4) turns on the alarm (IALARM) to warn of numerical instabilities due to linear dependence.]

SR FRMPRJ(P,IA,Q,NK,PK,VK,PI)

Forms projection matrix to annihilate components of the occupied atomic hybrids on a given center.

SR AUGMNT(P,BLK,C,EVAL,DM,TA,BORB,V,LARC,IA,NOCC,NORB)

This routine augments the set of occupied atomic hybrids on a center with a sufficient number of Rydberg AOs (in order of occupancy) to complete the span of the basis set on that atom.

SR REPOL(DM,Q,POL,BLK,EVAL,C,NBD)

Diagonalizes each 2x2 block of the density matrix in the basis of final NHOs to get the optimal polarization coefficients for each NBO.

SR FORMT(T,Q,POL)
Constructs the final NAO to NBO transformation matrix (T) from the final array of NHOs (Q) and polarization coefficients (POL).

SR CYCLES(ITER,THRESH,GUIDE,BNDOCC,TOPO,ICONT)

Controls the overall search for an acceptable resonance structure, including the lowering of the occupancy threshold (THRESH) for the RESONANCE keyword. Decides whether a structure is acceptable, initiates reordered searches over atoms for alternative resonance structures, and returns with the best overall structure. Prints the initial table (Section A.3.3) of the NBO output.

The final routines of this group are auxiliary to the formation of NLMOs, called by SR NLMO:

SR SYMUNI(TSYM,A,COS,SIN,OVLP,BLK,EVAL,NROT,NIUNIQ,NJUNIQ,ILIST,

JLIST,NOFF,IOFF,JOFF,NDIM)

Symmetrizes the unitary transformation matrix (TSYM) to preserve symmetries inherent in the density matrix, using symmetric orthogonalization of columns (if necessary) to preserve unitarity.

SR SYMORT(S,T,BLK,NDIM,N,EVAL)
Symmetric orthogonalization of a set of column vectors (T). [Thresholds DIAGTH (10-12) for off-diagonal Jacobi diagonalization and DANGER (103) to detect singularities of the overlap matrix; all eigenvalues of S must be less than DIAGTH*DANGER.]

C.6 ENERGY ANALYSIS ROUTINES (GROUP II)

The small set of routines in this group carry out the second main task of NBO analysis, the NBO Energetic Analysis ("deletions," associated with inclusion of a $DEL keylist; Section B.5). These routines depend on the presence of a Fock matrix, and are bypassed in any non-SCF calculation.

Overall control of Group II routines is with SR NBOEAN, which in turn calls the remaining programs of this group:

SR NBOEAN(A,MEMORY,NBOOPT,IDONE)

The task performed by this subroutine is dependent of the value of NBOOPT(1). If set to 2, this routine initiates (by calling SR NBODEL) the calculation of the next NBO deletion of the $DEL keylist. If set to 3, this routine completes the NBO deletion by computing the energy for the deletion. INTEGER variable IDONE is set to 1 if no additional deletions are found in the $DEL keylist.

SR NBODEL(A,MEMORY,IDONE)
Controls the calculation of the new AO density matrix from the requested deletion in the $DEL keylist. A modified NBO Fock matrix is created (SR DELETE) and diagonalized (SR JACOBI), leading to a new AO density matrix (SR NEWDM). This routine also prints the NBO deletions table (Section B.6.10).

SR DELETE(F,TRF,NDIM,IDEL,LEN,ITYPE,NDEL,NTRUNC,DONE,ISPIN)

Reads the $DEL list for the next deletion, deletes (sets to zero) the appropriate elements from the Fock matrix, and prints out the deletion specification Section B.6.10).

SR NEWDM(DM,U,EIG,NDIM,IDEL,LEN,NDEL,ITYPE,NMOOCC,ISPIN)
Constructs a new density matrix corresponding to the deleted Fock matrix.

SR RNKEIG(RANK,EIG,N,NDIM,ARCRNK)

Ranks the eigenvalues found in vector EIG (lowest eigenvalue having first rank). I = ARCRNK(N) is the entry whose rank is N.

SR SIMLTR(N,NDIM,F,U,R,S,KNTROL)

Performs the similarity transform Ut*F*U on a packed upper-triangular matrix F.

C.7 DIRECT ACCESS FILE ROUTINES (GROUP III)

The routines of Group III are involved in communication between the NBO programs and the FILE48 direct access file (DAF), whose contents are described in Section C.4. Two levels of I/O routines are employed.

The higher-level 'fetch/save' routines are called directly by the NBO subroutines. In most cases, the function of the fetch/save routines can be recognized by its name or argument list; e.g., "FETITL(TITLE)" fetches the job title line, "FEFAO(F,IWFOCK)" fetches the AO Fock matrix (FAO), and so forth. Each routine can also be associated with a logical record number (IDAR) of the direct access file (Section C.4), where the I/O item is stored. We list these routines in order of appearance, together with the associated direct access file record number(s) IDAR, without further description:


routineIDARroutineIDAR

SR FETITL(TITLE)2SR SVTLMO(T)49
SR FEE0(EDEL,ETOT)8SR FETLMO49
SR SVE0(EDEL)8SR SVTNHO47
SR FECOOR(ATCOOR)9SR FETNHO47
SR FESRAW(S)10SR SVPPAO(DM)22
SR FEDRAW(DM,SCR)20,21SR FEPPAO(DM)22
SR FEFAO(F,IWFOCK)30,31SR SVTNAO(T)43
SR FEAOMO(T,IT)40,41SR FETNAO(T)43
SR FEDXYZ(DXYZ,I)50-52SR SVNLMO(T)46
SR SVNBO(T,OCC,ISCR)44,45SR FENLMO(T)46
SR FENBO(T,OCC,ISCR,NELEC)44,45SR SVDNAO(DM)23,24
SR FETNBO(T)44,45SR FEDNAO(DM)23,24
SR SVPNAO(T)42SR SVFNBO(F)34,35
SR FEPNAO(T)42SR FEFNBO(F)34,35
SR SVSNAO(S)11SR SVNEWD(DM)25,26
SR FESNAO(S)11SR FENEWD(DM)25,26
SR SVTNAB(T)48SR FEINFO(ICORE,ISWEAN)3
SR FETNAB(T)48SR FEBAS(NSHELL,NEXP,ISCR)5

In turn, the fetch/save routines call the following lower-level, primitive subprograms, which open, close, read, write, and test the contents of the DAF (these are heavily modified versions of the direct access file subroutines of HONDO):

SR NBOPEN(NEW,ERROR)

Opens a new or existing unformatted DAF depending in the value of logical variable NEW. Record lengths are currently set at 256 (LENGTH) single precision words (1024 bytes), and up to 100 (NBDAR) logical records can be written. Note that logical records and physical records of the DAF are not equivalent; single logical records can span several physical records and need not be ordered sequentially. The array IONBO (in COMMON/NBODAF/) maps each logical record with its associated physical records. The first physical record of the DAF is reserved for COMMON/NBODAF/. [Note: Some machines may require that you alter the parameters LENGTH (the chosen record length) and ISINGL (a record length scaling factor).]

SR NBWRIT(IX,NX,IDAR)

Writes NX double precision words of array IX to logical record number IDAR of the NBO DAF.

SR NBREAD(IX,NX,IDAR)
Reads NX double precision words of the logical record number IDAR of the NBO DAF.

SR NBCLOS
Rewrites common block /NBODAF/ on the first physical record of the DAF, and closes the file.

SR NBINQR(IDAR)

Inquires whether information has been stored in logical record IDAR of the direct access file, and sets IDAR=0 if the record is empty.

C.8 FREE FORMAT INPUT ROUTINES (GROUP IV)

The routines of Group IV are the small set of system-independent free-format input routines that are used in reading the various keylists and datalists of the input file. The routines of this group are the 'primitives' that read and interpret individual keywords or entries of a keylist. They are called by higher-level I/O routines (such as SR JOBOPT of Group I) throughout the NBO program.

The free-format input primitive routines are:

SR STRTIN(LFNIN)

Initializes input from the LFNIN input file.

SR RDCARD

Reads the next 'card' (line) of the input file, and stores this line in the integer array ICD in COMMON/NBCRD1/ with all lower case characters converted to upper case. Logical variable END in COMMON/NBCRD2/ is set to .TRUE. if the end-of-file is encountered.

SR IFLD(INT,ERROR)

Searches input file LFNIN for the next string of non-blank characters, and checks to see if they form an integer. If so, the numerical value of the integer is placed in INT. If not, the logical variable ERROR is set to .TRUE. and INT is set positive (indicating an "END" terminating mark or end-of-file was encountered) or negative (indicating that the character string is not an integer).

SR RFLD(REAL,ERROR)

Similar to SR IFLD, but for a real number REAL. This routine will accept real numbers in a variety of different formats. For example, 1000 can be represented by 1000, 1000.0, 1.0E3, D3, 1+3, etc.

SR HFLD(KEYWD,LENG,ENDD)

Similar to SR IFLD and RFLD, but for a Hollerith array KEYWD(LENG). The logical variable ENDD is set to .TRUE. if the "END" terminating mark or the end-of-file is encountered. On return to the calling subroutine, LENG is set to the length of the string in KEYWD or to zero if the end-of-file is encountered.

SR FNDFLD

Searches for the next non-blank field on the input file, reading additional lines if necessary. Commas and equal signs are treated as blanks, and any character string which follows an exclamation point is treated as an arbitrary comment, and is ignored. The contents of this field are stored in the integer array LOOK of length LENGTH in COMMON/NBCRD1/.

FN EQUAL(IA,IB,L)

This logical function tests the equivalence of the first 'L' elements of the Hollerith strings IA and IB.

C.9 OTHER SYSTEM-INDEPENDENT I/O ROUTINES (GROUP V)

This section summarizes the I/O routines of Group V. These routines perform a variety of auxiliary I/O tasks, such as the reading or writing of matrices, or perform functions closely related to I/O.

The first set of programs in this group are responsible for searching for the $GENNBO, $NBO, $CORE, $CHOOSE, and $DEL identifiers of the job input file LFNIN:

SR GENINP(NEWDAF)

Searches for the $GENNBO identifier. In addition, this routine reads in the keywords of the $GENNBO keylist (see Section B.7), setting the option flags of COMMON/NBOPT/ and COMMON/NBGEN/ appropriately.

SR NBOINP(NBOOPT,IDONE)

Searches for the $NBO identifier according to the program version number, NBOOPT(10). The integer variable IDONE is set to 0 if this identifier is located, or 1 otherwise.

SR CORINP(IESS,ICOR)

Searches for the $CORE identifier according to the program version number, IESS. The integer variable ICOR is set to 1 if this identifier is located, or 0 otherwise.

SR CHSINP(IESS,ICHS)

Searches for the $CHOOSE identifier according to the program version number, IESS. The integer variable ICHS is set to 1 if this identifier is located, or 0 otherwise.

SR DELINP(NBOOPT,IDONE)

Searches for the $DEL identifier according to the program version number, NBOOPT(10). The integer variable IDONE is set to 0 if this identifier is located, or 1 otherwise.

The remaining routines of this group perform miscellaneous I/O functions:

SR RDCORE(JCORE)

Initializes the atomic core array (IATCR on COMMON/NBATOM/), and reads the entries of the $CORE keylist.

SR WRPPNA(T,OCC,IFLG)

Writes the transformation from 'pure' AOs to PNAOs, the NAO labels (NAOCTR, NAOL, and LSTOCC from COMMON/NBBAS/), and PNAO occupancies (diagonal PNAO density matrix elements) to an external file (LFN = -IFLG). Pure AOs (PAOs) are obtained from 'raw' cartesian AOs by the transformations of SR DFGORB.

SR RDPPNA(T,OCC,IFLG)

Reads the transformation from 'pure' AOs (PAOs) to PNAOs, NAO labels, and PNAO occupancies from an external file (LFN = -IFLG/1000) (cf. SR WRPPNA).

SR WRTNAO(T,IFLG)

Writes the AO to NAO transformation (fetched from the DAF), NAO labels, and the PNAO overlap matrix (also fetched from the DAF) to an external file (LFN = -IFLG). Note that T is the PNAO overlap matrix when control is returned to the calling routine.

SR RDTNAO(DM,T,SCR,IFLG)

Reads the AO to NAO transformation, NAO labels, and PNAO overlap matrix from an external file (LFN = -IFLG/1000). The transformation and overlap matrices are saved on the DAF, and the input AO density matrix is transformed to the NAO basis. Note that T is the PNAO overlap matrix on return to the calling routine (cf. SR WRTNAO).

SR WRTNAB(T,IFLG)
Writes the NAO to NBO transformation and NBO info (LABELS and IBXM arrays of COMMON/NBBAS/) to an external file (LFN = -IFLG).

SR RDTNAB(T,DM,BNDOCC,SCR,IFLG)

Reads the NAO to NBO transformation and NBO info from an external disk file (LFN = -IFLG/1000). The input NAO density matrix is also transformed to the NBO basis, and the NBO occupancies are stored in BNDOCC (cf. WRTNAB).

SR WRTNBO(T,BNDOCC,ISCR,IFLG)

Writes the AO to NBO transformation, the NBO occupancies, and additional NBO info (NBOUNI, NBOTYP, LABEL, IBXM, and IATNO arrays) to an external disk file (LFN = -IFLG).

SR WRNLMO(T,DM,ISCR,IFLG)

Similar to SR WRTNBO but for NLMOs. Note that the NLMO labels are identical to the NBO labels.

SR WRBAS(SCR,ISCR,LFN)

Writes the atomic coordinates and AO basis set information to the 'AOINFO' file LFN. The information contained in this file is identical to that of the $COORD, $BASIS, and $CONTRACT datalists of the GENNBO input file (see Section B.7). For more information on the file format, see the subroutine source code.

SR WRARC(SCR,ISCR,LFN)

Writes the 'ARCHIVE' file LFN (see Section B.7).

SR AOUT(A,MR,NR,NC,TITLE,INDEX,IFLG)

General utility to write matrix A(MR,1) to an external file (LFN = -IFLG) or print it to the output file (IFLG = number of columns to print, 'FULL', 'VAL', or 'LEW'). TITLE is a CHARACTER*80 matrix label, and the rows of A are labelled according to the value of INDEX = 0 (atoms), 1 (AOs), 2 (NAOs), 3 (NHOs), 4 (NBOs), or 5 (NLMOs). This routine calls SR APRINT or SR AWRITE.

SR APRINT(A,MR,NR,NC,TITLE,INDEX,MCOL)

Prints MCOL columns of matrix A to the output file. The format of the matrix is chosen according to the magnitude of the largest matrix element in A (cf. SR AOUT).

SR AWRITE(A,MR,NR,NC,TITLE,LFN)

Writes matrix A to external disk file LFN (cf. SR AOUT).

SR AREAD(A,MR,NR,NC,JOB,LFN,ERROR)

Reads NC columns of the matrix A(MR,1) from the external file LFN. The job title in the external file is returned to the calling subroutine in the Hollerith array, JOB(20), and the LOGICAL variable ERROR is set to .TRUE. if an error occurred while reading.

SR OUTPUT(A,MR,MC,NR,NC)
Prints the matrix A(MR,MC) to the standard output file. This routine is called only when the print formats of SR APRINT are unsuitable for matrix A.

SR INTERP(STRING,LEN,IFLG,LFN,READ,ERROR)

Interprets the Hollerith array STRING(LEN), storing the result in IFLG. The contents of STRING can be any of the read/write/print parameters such as 'W38', 'PVAL', 'R43', etc., described in Section B.2.4, and the resulting value of IFLG is determined according to the discussion of COMMON/NBOPT/ in Section C.3. When this routine is called, IFLG should be set to its default value, LFN should be the default file for writing or reading, and LOGICAL variable READ should be set to .TRUE. if reading from an external file is allowed. The LOGICAL variable ERROR is set to .TRUE. if STRING is uninterpretable.

FN IOINQR(IFLG)

Interprets IFLG as to whether the I/O item should be printed (IOINQR = 'PRNT'), read (IOINQR = 'READ'), or written out (IOINQR = 'WRIT') to an external file.

SR LBLAO

Forms labels for AOs and stores them in COMMON/NBLBL/.

SR LBLNAO

Forms labels for NAOs and stores them in COMMON/NBLBL/.

SR LBLNBO

Forms labels for NBOs and stores them in COMMON/NBLBL/.

SR LBLNHO(INHO,INBO,ICTR,NCTR)

Forms labels for NHOs and stores them in COMMON/NBLBL/.

C.10 GENERAL UTILITY ROUTINES (GROUP VI)

The utility routines of Group VI perform a variety of mathematical and other general tasks (such as solving sets of linear equations), and are called from routines throughout the NBO program. They are grouped in alphabetical order (except for the final group of routines controlled by the SR LINEQ driver):

SR ANGLES(X,Y,Z,THETA,PHI)

Converts cartesian coordinates (X,Y,Z) to corresponding polar angle THETA and azimuthal angle PHI in spherical polar coordinates.

FN BDFIND(IAT,JAT)

LOGICAL function BDFIND is set to .TRUE. if there is at least one bond between atoms IAT, JAT.

SR CHEM(NAT,NATOMS,LISTA,NL,ISTR)

Builds a 'chemical formula' for the list of atoms in LISTA having been identified as belonging to a particular 'molecular unit'. The chemical formula is stored in the Hollerith array ISTR(NL).

SR CONSOL(AUT,ALT,NDIM,N)

Consolidates an upper-triangular (AUT) and lower-triangular (ALT) matrix in a single matrix, stored in AUT.

Converts the Hollerith array IJ(LEN) into an integer IK. This is the inverse of SR IDIGIT.

SR CONVRT(N,NC1,NC2)
Converts a 2-digit integer N to two Hollerith characters NC1, NC2.

SR COPY(A,B,NDIM,NR,NC)
Copies matrix A to matrix B.

SR CORTBL(IAT,ICORE,IECP)
Stores the nominal "core table," giving the number of core s, p, d, f orbitals for elements 1-105 (H to Lw, and elements 104, 105). This table controls the number of high-occupancy unhybridized NAOs that will be isolated and removed as core NBOs (taking account also of any effective core potential).

SR DEBYTE(I,IBYTE)

Decomposes a Hollerith variable I into its four individual Hollerith 'bytes' IBYTE(4).

SR HALT(WORD)

Halts the execution of the NBO program if an unrecognizable keyword is found in the $NBO keylist.

SR IDIGIT(KINT,IK,ND,MAXD)

Converts the INTEGER variable KINT in the first ND elements of the Hollerith array IK(MAXD). This is the inverse of SR CONVIN.

FN IHTYP(IBO,JBO)
This Hollerith function determines whether the IBOJBO delocalization is vicinal ('v'), geminal ('g'), or remote ('r'), based on the derived NBO connectivity.

SR JACOBI(N,A,EIVU,EIVR,NDIM,NVDIM,ICONTR)

Diagonalizes a real symmetric matrix by the Jacobi rotations method. If ICONTR=0, a standard Jacobi diagonalization (unconstrained 2x2 rotations) is carried out. If ICONTR=1, the algorithm is prevented from mixing orbitals that are degenerate within 'DIFFER' if the off-diagonal element connecting them is less than 'DIFFER'. [Threshold DIFFER (10-5) controls degenerate mixing, DONE (10-13) is the maximum allowed off-diagonal element, and EPS (0.5x10-13) is a number between DONE and the machine precision.]

SR LIMTRN(T,M,A,B,NDIM,NBAS,NCDIM,NC,IOPT)

This routine carries out a 'limited' transformation of a matrix (T), using only the rows and columns specified by vector M. The operations performed are T*A, At*T*A, or At*T according to the value of IOPT.

SR MATMLT(A,B,V,NDIM,N)
Multiplies square matrices A*B (using scratch vector V) and stores result in A.

SR MATML2(A,B,V,NDIM,N)

Multiplies At*B (using scratch vector V) and stores the result in B. The algorithm assumes that A*B is a symmetric, so about half the work is saved. [SR MATML2 is typically the second step in a similarity transform of B by A, where B (and thus At*B*A) is symmetric.]

FN NAMEAT(IZ)

Returns the (Hollerith) atomic symbol for atomic number IZ 103.

SR NORMLZ(A,S,M,N)
Normalizes the columns of A using the overlap matrix S.

SR ORDER(RANK,LIST,N,NDIM,ARCRNK)

Ranks the positive elements of integer LIST(N), lowest values first. [RANK and ARCRNK are integer vectors, with I = ARCRNK(N) if LIST(I) is the element of rank N.]

SR PACK(T,NDIM,NBAS,L2)
Packs the upper-triangular portion of the symmetric matrix T(NBAS,NBAS) the first L2 elements of T.

SR RANK(EIG,N,NDIM,ARCRNK)

Orders the entries of vector EIG, highest values first. ARCRNK(I) is the old location of the Ith highest value in EIG. On return, EIG(I) is the Ith highest value. [Entries are not switched unless they differ by more than a DIFFER (5x10-8) threshold.]

SR SIMTRN(A,T,V,NDIM,N)

Performs the general similarity transform Tt*A*T of A by T, using scratch vector V.

SR SIMTRS(A,S,V,NDIM,N)

Performs the 'fast' similarity transform St*A*S, assuming the result is symmetric.

SR TRANSP(A,NDIM,N)
Transposes the matrix A: AAt.

SR UNPACK(T,NDIM,NBAS,L2)
Unpacks an upper triangular matrix (vector of length L2) into a symmetric matrix T(NBAS,NBAS).

SR VALTBL(IAT,IVAL)

Specifies the nominal "valence table," giving the number of valence AOs of each symmetry type for elements 1-105.

FN VECLEN(X,N,NDIM)

Evaluates Euclidean length of vector X.

SR LINEQ(A,X,B,SCR,N,M,NDIM,MDIM,ZERTOL,EPS,MAXIT,LFNPR,IERR)

This and the three following routines constitute the linear equations package for solving the system A*X = B for matrix X by the method of Gaussian elimination.

SR FACTOR(A,W,D,IPIVOT,N,NDIM,ZERTOL,IFLAG)

Supports SR LINEQ.

SR FNDSOL(A,X,B,W,R,E,IPIVOT,N,NDIM,EPS,MAXIT,LFNPR,IERR)

Supports SR LINEQ.

SR SUBST(X,W,B,IPIVOT,N,NDIM)

Supports SR LINEQ.

C.11 SYSTEM-DEPENDENT DRIVER ROUTINES (GROUP VII)

The routines of Group VII comprise the set of ESS-dependent driver routines which initiate the NBO and NBO energetic analyses and provide the NBO program with a variety of information about the electronic wavefunction. This section provides a brief, generic description of each of the driver routines. If you intend to write a set of routines for an ESS program not supported by this distribution, refer to the driver source code for additional guidance. Also, see Section C.13 for helpful hints for attaching the NBO program to an ESS package.

The driver routines are grouped together at the end of the NBO source code. Since multiple versions of each driver are provided (one for each supported ESS package and GENNBO), all of the executable lines in these routines are 'commented out' with an asterisk in the first column. In addition, every line of the drivers has an identifier 'XXXDRV' in columns 73-78, where 'XXX' is a 3-letter identifier for the associated ESS package. It is the responsibility of the program ENABLE to 'uncomment' the appropriate lines of the code for the requested program version (see Section A.2).

The system-dependent driver routines are:

SR RUNNBO

Determines the logical file numbers for the input and output files (LFNIN and LFNPR) of the parent program, initializes the NBOOPT job option array Section C.5.1), and initiates the NBO analysis (SR NBO) and energetic analysis (SR NBOEAN). This routine is the only routine of the NBO program called directly by the parent ESS package.

SR FEAOIN(CORE,ICORE,NBOOPT)

Interrogates the scratch files and COMMON blocks of the parent program, providing the NBO program with required information of the electronic wavefunction via the NBO COMMON blocks and FILE48 direct access file. (Note that for GENNBO, this routine directs the input of information from the GENNBO input file, FILE47.) The NBO COMMON blocks and FILE48 records which must be initialized by SR FEAOIN are discussed in Sections C.3, C.4. Additional information on the COMMON blocks and scratch files of the parent ESS package is provided in the Appendices.

SR DELSCF(CORE,ICORE,NBOOPT)

Performs one of two tasks, depending of the value of NBOOPT(1). If NBOOPT(1) is set to 2, SR DELSCF provides the parent ESS program with the modified density matrix generated by the NBO energetic analysis routines. The parent program will then compute the "deletion energy" for this modified wavefunction. If NBOOPT(1) is set to 3, SR DELSCF fetches the deletion energy from the parent program and writes it to the FILE48 direct access file. (The NBOOPT array is discussed in Section C.5.1).

C.12 GENNBO AUXILIARY ROUTINES

An additional set of routines is provided for the GENNBO stand-alone program. These routines are called by the GENNBO driver routine FEAOIN and are responsible for reading the datalists of the GENNBO input file. Each of these routines rewinds the input file before searching sequentially for its associated datalist. Thus, the order of datalists (as well as keylists) in the input file is immaterial. Each routine also checks that all required information in the datalist is given and stores this information on the FILE48 direct access file or in the NBO COMMON blocks.

Below we list each GENNBO auxiliary routine, indicating its associated datalist, but without furthur explanation:


DatalistAuxiliary routine to read datalist

$COORDSR CRDINP(TITLE,ATCOOR,BOHR)
$BASISSR BASINP
$CONTRACTSR CONINP(CORE,ICORE)
$OVERLAPSR SINP(CORE,UPPER)
$DENSITYSR DMINP(CORE,UPPER)
$FOCKSR FINP(CORE,UPPER,END)
$LCAOMOSR TINP(CORE)
$DIPOLESR DIPINP(CORE,UPPER,BOHR)

C.13 ATTACHING NBO TO A NEW ESS PROGRAM

This section briefly outlines the steps to be considered when attaching the NBO program to a new ESS package that is not supported by this distribution.

In general, you should try to identify the supported ESS package that is most similar to the ESS package you wish to use, and try to create driver routines modelled as closely as possible on those provided for the ESS. [In fact, examining the source code for driver routines of all supported ESS packages is good preparation for writing your own drivers.]

1. Decide where in the parent ESS package you wish to perform the NBO analysis. This will necessarily be placed after the calculation of the wavefunction (and the associated density matrix), usually near the wavefunction analysis routines (e.g., the perennial "Mulliken population analysis" section) or wavefunction properties section of the code. If possible, restrict the modification of your ESS source code to insertion of a single "CALL RUNNBO" statement at some point where the information required for NBO analysis is known to be available.

2. Check carefully for possible conflicts between the parent ESS program and the NBO program in (1) function or subroutine names, (2) COMMON block names, and (3) logical file assignments (LFNs) for I/O. NBO common block names all begin with /NB.../, and default LFN assignments are in the range 31-49. (Duplicate FN or SR names are detected by a linker.)

3. Create new driver (interfacing) subroutines RUNNBO, FEAOIN, and DELSCF to perform the functions briefly described in Section C.11, using the drivers provided with this distribution as templates insofar as possible. The following are a few helpful hints for each driver:

a. The RUNNBO routine should be relatively straightforward to write, following an analogous example provided in this distribution. Note that you can simply omit the calls to SR NBOEAN and SR DELSCF from RUNNBO if you do not plan to use the NBO energetic analysis (for example, because the DELSCF driver is unmanageable).

If your parent program is quite different from any of those supported by this distribution, choose an alternate version number [NBOOPT(10)], and carefully consider step 4 below.

b. Routine FEAOIN should fetch information about the electronic wavefunction from your ESS package and load it into the NBO COMMON blocks and FILE48 direct access file. This requires intimate knowledge of where these items are stored in the ESS program, so the FEAOIN examples of the distribution may provide little direct guidance. See Sections C.3, C.4 for description of the NBO COMMON blocks and file records which must be initialized by this routine.

Note that the NBO analysis will perform properly without the information stored on logical records 2, 5, 9, 30, 31, 40, 41, and 50-52 of the direct access file. If information is not provided on these records, the NBO program will simply shut off (with warnings) any requested keyword options which are thereby incompatible. In addition, the overlap matrix of record 10 need not be provided if the input basis set is orthogonal, and the energies of record 8 are not required if the NBO energetic analysis is not implemented for your ESS package.

c. Creating routine DELSCF will require intimate knowledge of the SCF routines in the parent ESS program; again, versions of DELSCF provided with this distribution may only be of minimal assistance. As described in Section C.11, SR DELSCF is responsible for providing a modified AO density matrix to an SCF energy evaluator (one pass throught the SCF routines) and returning this new energy to the NBO deletion routines via the FILE48 direct access file. If you do not intend to employ the NBO energetic analysis, you need not provide this routine to the NBO program. [Note that the 2nd-order perturbation theory energy analysis will be carried out (provided the Fock matrix is available) even if you do not include the NBOEAN and DELSCF energy analysis routines.]

4. In addition to the explicitly system-dependent subroutines RUNNBO, FEAOIN, and DELSCF, there are a few routines within the NBO program which can be considered quasi-system dependent, and might, therefore, require modification. These are SR NBOSET (Section C.5.2) and the 'INP' routines NBOINP, CORINP, CHSINP, and DELINP (Section C.9):

a. SR NBOSET assigns the logical file numbers (LFNs) 31-49 to be used by the NBO program. As mentioned above, if these are in conflict with the files employed by the parent ESS program, the conflicting LFNs will have to be reassigned in this subroutine.

b. The 'INP' routines may have to be modified according to the manner in which the input file of the parent program should be processed by the NBO program. More specifically, these routines either rewind the input file before searching for their associated keylist identifier, or they simply begin searching the input file sequentially at the point where the parent program left off, depending on the version number specified in NBOOPT(10). Be sure this parameter is consistent with the way you wish to modify the ESS input file for NBO input.

Section D: APPENDIX

D.1 INTRODUCTION

This Appendix contains system-dependent information about NBO input and source code for the ESS (electronic structure system) packages supported by this distribution. We assume that the user has basic familiarity with the ESS program of interest.

The Appendix is organized according to the ESS packages supported, which are described in Sections D.2-D.7, as shown below:


ESS packageSection

GAUSSIAN 88D.2
GAUSSIAN 86D.3
GAUSSIAN 82D.4
GAMESSD.5
HONDOD.6
AMPACD.7

Each ESS section contains information on:

1. Sample input file for RHF/3-21G methylamine

2. NBO program installation

3. Communication between the NBO drivers and the ESS program

For most users, only the first section(s) on sample input file will be required reading. For the programmer responsible for attaching the NBO program to an ESS package, the final section on NBO drivers will be important only if the available ESS version differs significantly from that assumed in the installation instructions.

In the Appendix we use "SR" and "FN" to denote subroutines and functions, respectively.

D.2 GAUSSIAN 88 VERSION

D.2.1 GAUSSIAN 88 sample input

A sample GAUSSIAN 88 input file to recreate the default methylamine (RHF/3-21G at Pople-Gordon idealized geometry) output displayed in Section A.3 is shown below:


# RHF/3-21G

Methylamine...RHF/3-21G//Pople-Gordon standard geometry

 0   1
 C
 N   1   CN
 H   1   CH   2   tet
 H   1   CH   2   tet   3   120.  0
 H   1   CH   2   tet   3   240.  0
 H   2   NH   1   tet   3    60.  0
 H   2   NH   1   tet   3   300.  0

 CN        1.47
 CH        1.09
 NH        1.01
 tet     109.4712

$NBO  $END


The keylists of the NBO program should always appear at the bottom of the GAUSSIAN 88 input file and should be ordered: $NBO, $CORE, $CHOOSE, $DEL. NBO job options are selected by inserting their associated keywords (Section B.2) into the $NBO keylist. All NBO keywords are applicable to the electronic wavefunctions computed by the GAUSSIAN 88 programs.

If the NBO program encounters the end-of-file while searching for a keylist, the input file is rewound and the search for the keylist is continued. This is particularly useful for jobs which call the NBO analysis several times. For example, an MP2 calculation with the GAUSSIAN 88 option DENSITY=ALL causes Link 601 to loop over three densities (SCF, Rho2, and MP2), and hence, the NBO analysis is called three times, once for each density. A single $NBO keylist (and $CORE and $CHOOSE keylists) will suffice as input for all three analyses. Alternatively, separate $NBO keylists, one for each density, could be inserted at the bottom of the GAUSSIAN 88 input file.

The IOp parameters 40-43 of Link 601 exert additional control over the NBO program, as listed below:


parametervalueeffect

IOp(40)-2skip the NBO analysis
-1perform the NPA only
0perform the NBO analysis
(read keywords in $NBO)
1perform the default NBO analysis
(do not read keywords in $NBO)
2initiate NBO energetic analysis
3complete NBO energetic analysis
IOp(41)0SCF density
1MP first order density
2MP2 density
3MP3 density
4MP4 density
5CI one-particle density
6CI density
7QCI/CC density
8density correct to second order
IOp(42)1perform the dipole analysis
(force the DIPOLE keyword)
IOp(43)1allow strongly delocalized structures
(force the RESONANCE keyword)

For example, to restrict the NBO output to the Natural Population analysis (NPA) only, set IOp(40) to -1 in all Link 601 entries of a GAUSSIAN 88 non-standard route, as shown below:

     6/40=-1/1;

By default, the NBO analysis will be performed, reading keywords from the $NBO keylist [IOp(40)=0], on the density matrix for the current wavefunction. The DIPOLE and RESONANCE keywords are generally activated through the $NBO keylist rather than via the IOp parameters.

D.2.2 NBO energetic analysis

Due to the overlay structure of the GAUSSIAN 88 programs, a non-standard route must be employed to perform the NBO energetic analysis. The following table lists and describes the tasks of the GAUSSIAN 88 links in the order that they appear in the non-standard route:

LINK DESCRIPTION

6/7=2,8=2,9=2,10=2,19=1/1; Perform the normal NBO analysis, storing information about the NBOs for the NBO energetic analysis on the FILE48 direct access file.

6/40=2/1(1); Read the next deletion listed in the $DEL keylist. If there are no more deletions, move to the next link. Otherwise, compute the modified density matrix, store it on the read-write files, and skip the next link in the non-standard route.

99/5=1,9=1/99; Finish GAUSSIAN 88 execution.

5/7=1,13=1/1,2; Using the modified density matrix, compute the deletion energy by a single pass through the SCF energy evaluator. Store the deletion energy on the read-write files.

6/40=3/1(-3); Read the deletion energy from the read-write files and complete the energetic analysis. Step backwards, in the non-standard route, three links.

The following is a GAUSSIAN 88 input file that will generate, in addition to the default NBO output, the NLMO (Section B.6.2), the dipole moment (Section B.6.3), and the NBO energetic (Section B.6.10) analyses of methylamine:


# NONSTD
1//1;
2//2;
3/5=5,11=1,25=14,30=1/1,2,3,11,14;
4/7=1/1;
5//1;
6/7=2,8=2,9=2,10=2,19=1/1;
6/40=2/1(1);
99/5=1,9=1/99;
5/7=1,13=1/1;
6/40=3/1(-3);

Methylamine...RHF/3-21G//Pople-Gordon standard geometry

 0   1
 C
 N   1   CN
 H   1   CH   2   tet
 H   1   CH   2   tet   3   120.  0
 H   1   CH   2   tet   3   240.  0
 H   2   NH   1   tet   3    60.  0
 H   2   NH   1   tet   3   300.  0

 CN        1.47
 CH        1.09
 NH        1.01
 tet     109.4712

$NBO  NLMO  DIPOLE  $END
$DEL  NOSTAR
      ZERO 2 ATOM BLOCKS   4  BY  3
                           1  3  4  5
                           2  6  7
                           3  BY  4
                           2  6  7
                           1  3  4  5
$END


Note that for the GAUSSIAN 88 version of the NBO program, each deletion in the $DEL keylist must begin on a new line of the input file (the first deletion can follow the "$DEL" keylist identifier, as shown above). The "$END" keylist terminator must also appear on its own line.

D.2.3 Geometry reoptimization with NBO deletions

The structural effects of electron delocalization can be examined by coupling the NBO energetic analysis to the Fletcher-Powell (numerical) geometry optimization routines of the GAUSSIAN 88 package. The following GAUSSIAN 88 input file will reoptimize selected internal coordinates of RHF/3-21G methylamine in the absence of its strong nN*CH hyperconjugative interaction:


#NONSTD
1//1,2;
2//2;
3/5=5,11=1,25=14,30=1/1,2,3,11,14;
4/7=1/1;
5//1;
6/7=2,8=2,9=2,10=2,19=1/1;
6/40=2/1(2);
1//2(3);
99/9=1/99;
5/7=1,13=1/1;
6/40=3/1(-4);
2//2;
3/5=5,11=1,25=14,30=1/1,2,3,11,14;
4/5=5,7=1,16=2/1;
5//1;
6/7=2,8=2,9=2,10=2,19=1/1;
6/40=2/1(3);
1//2(-6);
2//2;
99/9=1/99;
5/7=1,13=1/1;
6/40=3/1(-5);

Methylamine...RHF/3-21G optimization with deletions

 0    1
 C
 N    1    CN
 H    1    CHa    2   alfa
 H    1    CHb    2   beta    3   dlta  0
 H    1    CHb    2   beta    3  -dlta  0
 H    2    NH     1   gama    3   epsn  0
 H    2    NH     1   gama    3  -epsn  0

 CN           1.4713
 CHa          1.0901
 alfa       114.7843

 CHb          1.0825
 NH           1.0035
 beta       108.9484
 gama       113.6544
 dlta       121.4265
 epsn        64.2369

$NBO  PRINT=0  NBO  $END   ! Request reduced NBO output
$DEL
      DELETE 1 ELEMENT  9  24
$END


Reoptimization of the internal coordinates specified in this example leads to lengthening of the C-N bond (1.513 Å) and closing of the H-C-N bond angle (108.3 °), as expected from lone pair/antibond overlap arguments. The C-H bond length contracts (1.075 Å) due to the removal of electron density from its antibond.

Note that the numerical optimization routines of the GAUSSIAN 88 program must be employed since analytic gradients are not available for the modified wavefunction of the NBO energetic analysis. Hence, these optimizations are time-consuming, generally requiring 8n-12n single point calculations (n = number of symmetry unique internal coordinates) before convergence of the gradients is obtained (the example requires 28 single point calculations before convergence). Careful selection of the coordinates to be optimized is recommended.

D.2.4 NBO program installation

The NBO interfacing (driver) routines provided in this distribution were written for the Revision C version of GAUSSIAN 88, dated 19-AUG-1988. Section D.2.5 lists the GAUSSIAN 88 dependent elements of the NBO driver routines that may need slight modification for other versions of the GAUSSIAN 88 programs.

Three modifications to SR MulDrv of Link 601 are required to run the NBO analysis:


*Deck MulDrv
      Subroutine MulDrv(Core)

      .
      .
      .

      IEnd1  = IScr2  + NBasis - 1
      Call GetSCM(-1,Core,NGot,6hMulDrv,0)
C
C     <<< Beginning of first NBO insert >>
C
C     Run the NBO energetic analysis.
C
      If(IOp(40).ge.2) then
        IDens = 0                  ! SCF density for deletion runs
        IOp(41) = IDens
        Call RunNBO(Core,NGot,IOp,IContr)
        go to 999
      endIf
C
C     <<< End of first NBO insert >>
C
C     Put density matrices first.
C
      IPA = IEnd1 + 1

      .
      .
      .

          Call ElEner(IOut,ISelfE,SCFDen,ISCF,IROHF,NAE,NBE,NBasis,
     $      Core(IPA),Core(IV),MDV)
C
C     <<< Beginning of second NBO insert >>>
C
C     Run the NBO analysis.
C
          If(IOp(40).ne.-2) then
            IOp(41) = IDens
            Call RunNBO(Core,NGot,IOp,IContr)
          endIf
C
C     <<< End of second NBO insert >>>
C
        else if(IDens1.eq.IDSt.and.IDens1.eq.IDEnd) then

      .
      .
      .

      Call PrtPol(IOut,ISCF,IRotat,IRwDip,NAE,NBE,NBasis,NTT,
     $    Core(IExPol),Core(ICMO),Core(IT),Core(IEV),Core(IDip))
C
C     <<< Beginning of third NBO insert >>>
C
C     The following line has been changed from "Call ChainX(0)" in
C     order to exit the NBO deletion loop after the deletions are done:
C
  999 Call ChainX(IContr)
C
C     <<< End of third NBO insert >>>
C
      Return
      End


The first NBO insert initiates the NBO energetic analysis of SCF wavefunctions. The second insert lies within a loop over densities, and thus, the NBO program is called once for each density matrix analyzed by this link. The third insert allows the NBO energetic analysis to exit from the loop in the non-standard route.

The NBO program installation should continue as discussed in Section A.2.

D.2.5 NBO communication with GAUSSIAN 88

The NBO driver routines (RUNNBO, FEAOIN, DELSCF) access the following GAUSSIAN 88 routines, read-write files, and COMMON blocks:

GAUSSIAN 88 routines:


    SR CharPn(IString)
    SR DENGET(IOut,IODens,IMeth,LenDen,GotIt,P)
    FN ILSW(IOPER,WHERE,WHAT)
    FN InToWP(Nints)
    FN ITqry(Ifile)
    SR TRead(IARN,X,M,N,MM,NN,K)
    SR TWrite(IARN,X,M,N,MM,NN,K)

GAUSSIAN 88 read-write files:


filecontents

501Total energy
502Job title
506Basis set information
512Effective core potential information
514AO overlap matrix
518AO dipole integrals
524MO coefficients (alpha)
526MO coefficients (beta)
528SCF density matrix (alpha)
530SCF density matrix (beta)
536AO Fock matrix (alpha)
538AO Fock matrix (beta)
603AO density matrix

GAUSSIAN 88 COMMON blocks:

    COMMON/MOL/NATOM,ICHARG,MULTIP,NAE,NBE,NE,NBASIS,IAN(401),
   +           ATMCHG(400),C(1200)
    COMMON/LP2/NLP(1600),CLP(1600),ZLP(1600),KFIRST(400,5),
   +  KLAST(400,5),LMAX(400),LPSKIP(400),NFroz(400)
    COMMON/B/EXX(6000),C1(6000),C2(6000),C3(6000),X(2000),Y(2000),
   +     Z(2000),JAN(2000),SHELLA(2000),SHELLN(2000),SHELLT(2000),
   +     SHELLC(2000),AOS(2000),AON(2000),NSHELL,MAXTYP
    INTEGER SHELLA,SHELLN,SHELLT,SHELLC,SHLADF,AOS,AON
    DIMENSION C4(2000),SHLADF(2000)
    EQUIVALENCE(C4(1),C3(2001)),(SHLADF(1),C3(4001))


D.3 GAUSSIAN 86 VERSION

D.3.1 GAUSSIAN 86 sample input

See Section D.2.1. Note that the NBO IOp parameters of Link 601 are set to 40-43 (changed from 20-23 in previous distributions of the NBO program).

D.3.2 NBO energetic analysis

See Section D.2.2.

D.3.3 Geometry reoptimization with NBO deletions

See Section D.2.3.

D.3.4 NBO program installation

The NBO interfacing (driver) routines provided in this distribution were written for the Revision C version of GAUSSIAN 86, dated 30-APR-1986. Section D.3.5 lists the GAUSSIAN 86 dependent elements of the NBO driver routines that may need slight modification for other versions of the GAUSSIAN 86 programs.

Two modifications to SR MulDrv of Link 601 are required to run the NBO analysis:


*Deck MulDrv
      Subroutine MulDrv(Core)
      .
      .
      .

      If(NGot.lt.IEnd1) Write(IOut,2002) IEnd1, NGot
      Len2 = (NGot-I2A+1)/NTT
C
C     <<< Beginning of first NBO insert >>>
C
      IF(IOp(40).GE.2.OR.IOp(41).NE.0) GO TO 999
C
C     <<< End of first NBO insert >>>
C
C     Do population analysis.
C
      CALL MULPOP(MaxAtm,IOP,IROHF,NATOMS,ICHARG,MULTIP,NAE,NBE,NBASIS,

      .
      .
      .

      Call PrtPol(IOut,ISCF,IRotat,IRwDip,NAE,NBE,NBasis,NTT,
     $    Core(IExPol),Core(ICMO),Core(IT),Core(IEV),Core(IDip))
C
C     <<< Beginning of second NBO insert >>>
C
  999 Call GetSCM(-1,Core(1),NGot,3HNBO,0)
      Call RunNBO(Core,NGot,IOp,IContr)
C
C     The following line has been changed from "999 Call ChainX(0)" in
C     order to exit the NBO deletion loop after deletions are complete.
C
      Call ChainX(IContr)
C
C     <<< End of second NBO insert >>>
C
      Return
      End


The first NBO insert allows Link 601 to by-pass the Mulliken Population and electric moment analysis routines if the NBO energetic analysis is to be performed or if a correlated wavefunction is being analyzed. The second insert requests all available memory be allocated for the NBO program and initiates the NBO analysis. Note that the call to SR ChainX has been altered from the original code.

The NBO program installation should continue as discussed in Section A.2.

D.3.5 NBO communication with GAUSSIAN 86

The NBO driver routines (RUNNBO, FEAOIN, DELSCF) access the following GAUSSIAN 86 routines, read-write files, and COMMON blocks:

GAUSSIAN 86 routines:


    SR CharPn(IString)
    FN ILSW(IOPER,WHERE,WHAT)
    FN InToWP(Nints)
    FN ITqry(Ifile)
    SR TRead(IARN,X,M,N,MM,NN,K)
    SR TWrite(IARN,X,M,N,MM,NN,K)

GAUSSIAN 86 read-write files:


filecontents

203CI density matrix (alpha)
204CI density matrix (beta)
501Total energy
502Job title
506Basis set information
512Effective core potential information
514AO overlap matrix
518AO dipole integrals
524MO coefficients (alpha)
526MO coefficients (beta)
528SCF density matrix (alpha)
530SCF density matrix (beta)
536AO Fock matrix (alpha)
538AO Fock matrix (beta)

GAUSSIAN 86 COMMON blocks:

    COMMON/MOL/NATOM,ICHARG,MULTIP,NAE,NBE,NE,NBASIS,IAN(401),
   +           ATMCHG(400),C(1200)
    COMMON/LP2/NLP(1600),CLP(1600),ZLP(1600),KFIRST(400,5),
   +  KLAST(400,5),LMAX(400),LPSKIP(400),NFroz(400)
    COMMON/B/EXX(1200),C1(1200),C2(1200),C3(1200),X(400),Y(400),
   +     Z(400),JAN(400),SHELLA(400),SHELLN(400),SHELLT(400),
   +     SHELLC(400),AOS(400),AON(400),NSHELL,MAXTYP
    INTEGER SHELLA,SHELLN,SHELLT,SHELLC,SHLADF,AOS,AON
    DIMENSION C4(400),SHLADF(400)
    EQUIVALENCE(C4(1),C3(401)),(SHLADF(1),C3(801))


D.4 GAUSSIAN 82 VERSION

D.4.1 GAUSSIAN 82 sample input

See Section D.2.1. Note that the NBO IOp parameters of Link 601 are set to 40-43 (changed from 20-23 in previous distributions of the NBO program).

D.4.2 NBO energetic analysis

See Section D.2.2.

D.4.3 Geometry reoptimization with NBO deletions

See Section D.2.3.

D.4.4 NBO program installation

The NBO interfacing (driver) routines provided in this distribution were written for the Revision H version of GAUSSIAN 82, dated 28-NOV-1983. Section D.4.5 lists the GAUSSIAN 82 dependent elements of the NBO driver routines that may need slight modification for other versions of the GAUSSIAN 82 programs.

Two modifications to SR MulDrv of Link 601 are required to run the NBO analysis:


*Deck MulDrv
      Subroutine MulDrv(Core)

      .
      .
      .

      IF(IPRINT.NE.0)
     $WRITE(IOUT,2001)I1,I2,I3,I4,I5,I6,I7,I8,I9,I10,IEND
C
C     <<< Beginning of first NBO insert >>>
C
C     The following line has been changed from "CALL GETSCM(IEND,...)",
C     in order to ask for all available memory.
C
      CALL GETSCM(-1,CORE(1),JJJMEM,6HMULDRV,0)
C
      IF(IOP(40).GE.2.OR.IOP(41).NE.0) GO TO 100
C
C     <<< End of first NBO insert >>>
C
C     DO THE POPULATION ANALYSIS.
      CALL MULPOP(IOP,NATOMS,ICHARG,MULTIP,NAE,NBE,NBASIS,IAN,AtmChg,
     $  C,Core(I1),CORE(I2),CORE(I3),CORE(I4),CORE(I5),
     $  CORE(I6),CORE(I7),CORE(I8),CORE(I9),CORE(I10))
C
C     <<< Beginning of second NBO insert >>>
C
  100 CALL RUNNBO(CORE,JJJMEM,IOP,ICONTR)
C
C     The following line has been changed from "CALL CHAINX(0)" in
C     order to exit the NBO deletion loop after deletions are complete.
C
      CALL CHAINX(ICONTR)
C
C     <<< End of second NBO insert >>>
C
      RETURN
      END


The first NBO insert allows Link 601 to by-pass the Mulliken Population analysis routines if the NBO energetic analysis is to be performed or if a correlated wavefunction is being analyzed. The second insert initiates the NBO analysis. Note that the calls to routines GETSCM and CHAINX have been altered from the original code.

The NBO program installation should continue as discussed in Section A.2.

D.4.5 NBO communication with GAUSSIAN 82

The NBO driver routines (RUNNBO, FEAOIN, DELSCF) access the following GAUSSIAN 82 routines, read-write files, and COMMON blocks:

GAUSSIAN 82 routines:


    SR CharPn(IString)
    FN ILSW(IOPER,WHERE,WHAT)
    FN InToWP(Nints)
    FN ITqry(Ifile)
    SR TRead(IARN,X,M,N,MM,NN,K)
    SR TWrite(IARN,X,M,N,MM,NN,K)

GAUSSIAN 82 read-write files:


filecontents

203CI density matrix (alpha)
204CI density matrix (beta)
501Total energy
502Job title
506Basis set information
512Effective core potential information
514AO overlap matrix
518x dipole integrals
519y dipole integrals
520z dipole integrals
524MO coefficients (alpha)
526MO coefficients (beta)
528SCF density matrix (alpha)
530SCF density matrix (beta)
536AO Fock matrix (alpha)
538AO Fock matrix (beta)

GAUSSIAN 82 COMMON blocks:

    COMMON/MOL/NATOM,ICHARG,MULTIP,NAE,NBE,NE,NBASIS,IAN(101),
   +           ATMCHG(100),C(300)
    COMMON/LP2/NLP(400),CLP(400),ZLP(400),KFIRST(100,5),
   +  KLAST(100,5),LMAX(100),LPSKIP(100),NFroz(100)
    COMMON/B/EXX(240),C1(240),C2(240),C3(240),X(80),Y(80),
   +     Z(80),JAN(80),SHELLA(80),SHELLN(80),SHELLT(80),
   +     SHELLC(80),AOS(80),AON(80),NSHELL,MAXTYP
    INTEGER SHELLA,SHELLN,SHELLT,SHELLC,SHLADF,AOS,AON
    DIMENSION C4(80),SHLADF(80)
    EQUIVALENCE(C4(1),C3(81)),(SHLADF(1),C3(161))


D.5 GAMESS VERSION

D.5.1 GAMESS sample input

A sample GAMESS input file to recreate the default methylamine (RHF/3-21G at Pople-Gordon idealized geometry) output displayed in Section A.3 is shown below:


 $CONTRL  SCFTYP=RHF  RUNTYP=ENERGY  $END
 $DATA
Methylamine...RHF/3-21G//Pople-Gordon standard geometry
CS       0

Carbon       6.       -0.713673           -0.014253            0.000000
    1   SV    3  N21

Nitrogen     7.        0.749817            0.123940            0.000000
    1   SV    3  N21

Hydrogen     1.       -0.978788           -1.071520            0.000000
    1   SV    3  N21

Hydrogen     1.       -1.123702            0.463146           -0.889982
    1   SV    3  N21

Hydrogen     1.        1.129752           -0.318420            0.824662
    1   SV    3  N21

 $END
 $GUESS  GUESS=EXTGUESS  $END
 $NBO  $END


NBO job options are selected by inserting their associated keywords (Section B.2) into the $NBO keylist. All NBO keywords are applicable to the electronic wavefunctions computed by GAMESS.

The following is a modified GAMESS input file that will generate, in addition to the default NBO output, the NLMO (Section B.6.2), the dipole moment (Section B.6.3), and the NBO energetic (Section B.6.10) analyses of methylamine:


 $CONTRL  SCFTYP=RHF  RUNTYP=ENERGY  $END
 $DATA
Methylamine...RHF/3-21G//Pople-Gordon standard geometry
CS       0

Carbon       6.       -0.713673           -0.014253            0.000000
    1   SV    3  N21

Nitrogen     7.        0.749817            0.123940            0.000000
    1   SV    3  N21

Hydrogen     1.       -0.978788           -1.071520            0.000000
    1   SV    3  N21

Hydrogen     1.       -1.123702            0.463146           -0.889982
    1   SV    3  N21

Hydrogen     1.        1.129752           -0.318420            0.824662
    1   SV    3  N21

 $END
 $GUESS  GUESS=EXTGUESS  $END
 $NBO  NLMO  DIPOLE  $END
 $DEL  NOSTAR
       ZERO 2 ATOM BLOCKS     4  BY  3
                              1  3  4  5
                              2  6  7
                              3  BY  4
                              2  6  7
                              1  3  4  5
 $END


In general, the $NBO, $CORE, $CHOOSE, and $DEL keylists can be inserted in any order within the GAMESS input file; the NBO program rewinds the input file each time it searches for a keylist.

D.5.2 NBO program installation

The NBO interfacing (driver) routines provided in this distribution were written for the GAMESS program dated 6-DEC-1989. Section D.5.3 lists the GAMESS dependent elements of the NBO driver routines that may need slight modification for other versions of the GAMESS program.

Only one command line is added to the GAMESS source code to run the NBO analysis. A call ("IF(RHO) CALL RUNNBO") should be inserted at the end of the GAMESS properties package (SR HFPROP in module PRPLIB), as shown below:


C*MODULE PRPLIB  *DECK HFPROP
      SUBROUTINE HFPROP(SCFTYP)

                 .
                 .
                 .

C
C     ----- SELECT DESIRED ELECTROSTATIC PROPERTIES -----
C
      CALL PRSELC(SCFTYP)
C
      WRITE(IW,FMT='(" ...... END OF PROPERTY EVALUATION ......")')
      CALL TIMIT(1)
C
C     <<< BEGINNING OF NBO INSERT >>>
C
      IF(RHO) CALL RUNNBO
C
C     <<< END OF NBO INSERT >>>
C
      RETURN
      END


If the density matrix is available (RHO = .TRUE.), the NBO analysis is performed each time the properties package is called within GAMESS. For example, the NBO analysis of the computed wavefunction will be performed for every single point calculation and for both the initial and final points of a geometry optimization. The NBO output will appear immediately after the Mulliken Population Analysis and the electric properties in the GAMESS output file.

The NBO program installation should continue as discussed in Section A.2. D.5.3 NBO communication with GAMESS

The NBO driver routines (RUNNBO, FEAOIN, DELSCF) access the following GAMESS routines, records of the dictionary file, and COMMON blocks:

GAMESS routines:


    SR DAREAD(IDAF,IODA,V,LEN,NREC,NAV)
    FN ENUC(N,Z,C)
    ENTRY GOTFM(IPAR)
    SR HSTAR(D,F,XX,IX,NINTMX,IA,NOPK)
    SR HSTARU(DA,FA,DB,FB,XX,IX,XP,XK,IXPK,NINTMX,IA,NOPK)
    SR SYMH(F,H,IA)
    FN TRACEP(A,B,N)
    SR VADD(A,I,B,J,C,K,N)
    ENTRY VALFM(IPAR)

GAMESS dictionary file:


recordcontents

2total energy
12AO overlap matrix
14AO Fock matrix (alpha)
15AO to MO transformation matrix (alpha)
16AO density matrix (alpha bond-order matrix)
18AO Fock matrix (beta)
19AO to MO transformation matrix (beta)
20AO density matrix (beta bond-order matrix)
23x dipole integrals
24y dipole integrals
25z dipole integrals

GAMESS COMMON blocks:

    PARAMETER (MXGTOT=5000, MXSH=1000, MXATM=50)
    COMMON /ECP2  / CLP(400),ZLP(400),NLP(400),KFIRST(MXATM,6),
   +                KLAST(MXATM,6),LMAX(MXATM),LPSKIP(MXATM),
   +                IZCORE(MXATM)
    COMMON /FMCOM / CORE(1)
    COMMON /INFOA / NAT,ICH,MUL,NUM,NX,NE,NA,NB,ZAN(MXATM),C(3,MXATM)
    COMMON /INTFIL/ NINTMX,NHEX,NTUPL,PACK2E,INTG76
    COMMON /IOFILE/ IR,IW,IP,IS,IPK,IDAF,NAV,IODA(99)
    COMMON /NSHEL / EX(MXGTOT),CS(MXGTOT),CP(MXGTOT),CD(MXGTOT),
   +                KSTART(MXSH),KATOM(MXSH),KTYPE(MXSH),KNG(MXSH),
   +                KLOC(MXSH),KMIN(MXSH),KMAX(MXSH),NSHELL
    COMMON /OUTPUT/ NPRINT,ITOL,ICUT,NORMF,NORMP,NOPK
    COMMON /RUNLAB/ TITLE(10),A(MXATM),B(MXATM),BFLAB(2047)
    COMMON /SCFOPT/ SCFTYP,BLKTYP,MAXIT,MCONV,NCONV,NPUNCH
    COMMON /XYZPRP/ X(3)
D.6 HONDO VERSION

D.6.1 HONDO sample input

A sample HONDO input file to recreate the default methylamine (RHF/3-21G at Pople-Gordon idealized geometry) output displayed in Section A.3 is shown below:


 $CNTRL  RUNFLG=0  $END
 $BASIS
Methylamine...RHF/3-21G//Pople-Gordon standard geometry
    0    0   15    1  N21
CS       0

Carbon       6.       -0.713673           -0.014253            0.000000
Nitrogen     7.        0.749817            0.123940            0.000000
Hydrogen     1.       -0.978788           -1.071520            0.000000
Hydrogen     1.       -1.123702            0.463146           -0.889982
Hydrogen     1.        1.129752           -0.318420            0.824662
 $END
 $GUESS  NGUESS=4  $END
 $INTGRL  $END
 $WFN  WFNFLG=0  $END
 $SCF  NCO=9  $END
 $NBO  $END


NBO job options are selected by inserting their associated keywords (Section B.2) into the $NBO keylist. All NBO keywords are applicable to the electronic wavefunctions computed by HONDO.

The following is a modified HONDO input file that will generate, in addition to the default NBO output, the NLMO (Section B.6.2), the dipole moment (Section B.6.3), and the NBO energetic (Section B.6.10) analyses of methylamine:


 $CNTRL  RUNFLG=0  $END
 $BASIS
Methylamine...RHF/3-21G//Pople-Gordon standard geometry
    0    0   15    1  N21
CS       0

Carbon       6.       -0.713673           -0.014253            0.000000
Nitrogen     7.        0.749817            0.123940            0.000000
Hydrogen     1.       -0.978788           -1.071520            0.000000
Hydrogen     1.       -1.123702            0.463146           -0.889982
Hydrogen     1.        1.129752           -0.318420            0.824662
 $END
 $GUESS  NGUESS=4  $END
 $INTGRL  $END
 $WFN  WFNFLG=0  $END
 $SCF  NCO=9  $END
 $NBO  NLMO  DIPOLE  $END
 $DEL  NOSTAR
       ZERO 2 ATOM BLOCKS     4  BY  3
                              1  3  4  5
                              2  6  7
                              3  BY  4
                              2  6  7
                              1  3  4  5
 $END


In general, the $NBO, $CORE, $CHOOSE, and $DEL keylists can be inserted in any order within the HONDO input file; the NBO program rewinds the input file each time it searches for a keylist.

D.6.2 NBO program installation

The NBO interfacing (driver) routines provided in this distribution were written for HONDO 7.0, dated 18-JAN-1988. Section D.6.3 lists the HONDO dependent elements of the NBO driver routines that may need slight modification for other versions of the HONDO program.

Only one command line is added to the HONDO source code to run the NBO analysis. A call ("CALL RUNNBO") should be inserted at the end of the HONDO properties package (SR PROPTY in module PRP), as shown below:


      SUBROUTINE PROPTY

      .
      .
      .

C
C     ----- ELECTRON AND SPIN DENSITIES -----
C
      IF(NODEN.EQ.0) CALL ELDENS
C
C     <<< BEGINNING OF NBO INSERT >>>
C
      CALL RUNNBO
C
C     <<< END OF NBO INSERT >>>
C
      NCALL=0
      IF(SOME) NCALL=1
      CALL TIMIT(NCALL)
      RETURN

      .
      .
      .

      END


The NBO analysis is performed each time the properties package is called within HONDO. For example, the NBO analysis of the computed wavefunction will be performed (unless NOPROP=1 in the $CONTRL namelist) for every single point calculation, for each point on a scan of a potential energy surface, and for both the initial and final points of a geometry optimization. The NBO output will appear immediately after the Mulliken Population Analysis and the electric properties in the HONDO output file.

The NBO program installation should continue as discussed in Section A.2. D.6.3 NBO communication with HONDO

The NBO driver routines (RUNNBO, FEAOIN, DELSCF) access the following HONDO routines, records of the dictionary file, and COMMON blocks:

HONDO routines:


    SR DAREAD(IDAF,IODA,IX,NX,IDAR)
    SR DIPAMS(BMASS,NCALL,NCODE,SOME)
    FN DOTTRI(A,B,N)
    FN ENUC(N,Z,C)
    SR HSTAR(D,F,XX,IX,NINTMX,IA,NOPK)
    SR HSTARU(DA,FA,DB,FB,XX,IX,XP,XK,IXPK,NINTMX,IA,NOPK)
    SR SYMFCK(F,H,IA)

HONDO dictionary file:


recordcontents

2total energy
12AO overlap matrix
14AO Fock matrix (alpha)
15AO to MO transformation matrix (alpha)
16AO density matrix (alpha bond-order matrix)
18AO Fock matrix (beta)
19AO to MO transformation matrix (beta)
20AO density matrix (beta bond-order matrix)
33x dipole integrals
34y dipole integrals
35z dipole integrals

HONDO COMMON blocks:

    COMMON/IJPAIR/IA(1)
    COMMON/INFOA/NAT,ICH,MUL,NUM,NX,NE,NA,NB,ZAN(50),C(3,50)
    COMMON/INTFIL/NOPK,NOK,NOSQUR,NINTMX,NHEX,NTUPL,PACK2E
    COMMON/IOFILE/IR,IW,IP,IJK,IPK,IDAF,NAV,IODA(99)
    COMMON/MEMORY/MAXCOR,MAXLCM
    COMMON/MOLNUC/NUC(50)
    COMMON/NSHEL/EX(440),CS(440),CP(440),CD(440),CF(440),CG(440),
   +             KSTART(120),KATOM(120),KTYPE(120),KNG(120),
   +             KLOC(120),KMIN(120),KMAX(120),NSHELL
    COMMON/RUNLAB/TITLE(10),ANAM(50),BNAM(50),BFLAB(512)
    COMMON/SCFOPT/SCFTYP
    COMMON/SCM/CORE(1)
    COMMON/WFNOPT/WFNTYP


D.7 AMPAC VERSION

D.7.1 AMPAC sample input

A sample AMPAC input file that will create default methylamine (AM1 at Pople-Gordon idealized geometry) output similar to the ab initio output displayed in Section A.3 is shown below:


AM1

CH3NH2...AM1//Pople-Gordon standard geometry
   C      0.000000  0    0.000000  0    0.000000  0   0  0  0
   N      1.470000  0    0.000000  0    0.000000  0   1  0  0
   H      1.090000  0  109.471230  0    0.000000  0   1  2  0
   H      1.090000  0  109.471230  0  120.000000  0   1  2  3
   H      1.090000  0  109.471230  0  240.000000  0   1  2  3
   H      1.010000  0  109.471230  0   60.000000  0   2  1  3
   H      1.010000  0  109.471230  0  300.000000  0   2  1  3

$NBO  $END



The keylists of the NBO program should always appear at the bottom of the AMPAC input file and should be ordered: $NBO, $CORE, $CHOOSE, $DEL. NBO job options are selected by inserting their associated keywords (Section B.2) into the $NBO keylist.

Due to the implicit orthogonality of the basis functions, the following NBO keywords are not applicable to the wavefunctions computed by AMPAC (or other semi-empirical packages):

       AOPNAO        AOPNLMO       NAONHO        SPNAO
       AONAO         DINAO         NAONLMO       SPNHO
       AOPNHO        DMNAO         NAOMO         SPNBO
       AOPNBO        FNAO          SAO           SPNLMO

In addition, the NBO keywords that require access to the AO dipole integrals (DIPOLE, DIAO, DINAO, DINHO, DINBO, DINLMO) are not applicable with AMPAC, since these integrals are unavailable to the NBO program.

The following is a modified AMPAC input file that will generate, in addition to the default NBO output, the NLMO and the NBO energetic analyses of methylamine:


AM1

CH3NH2...AM1//Pople-Gordon standard geometry
   C      0.000000  0    0.000000  0    0.000000  0   0  0  0
   N      1.470000  0    0.000000  0    0.000000  0   1  0  0
   H      1.090000  0  109.471230  0    0.000000  0   1  2  0
   H      1.090000  0  109.471230  0  120.000000  0   1  2  3
   H      1.090000  0  109.471230  0  240.000000  0   1  2  3
   H      1.010000  0  109.471230  0   60.000000  0   2  1  3
   H      1.010000  0  109.471230  0  300.000000  0   2  1  3

$NBO  NLMO  $END
$DEL  NOSTAR
      ZERO 2 ATOM BLOCKS  3 BY 4
                          1 3 4 5
                          2 6 7
                          4 BY 3
                          2 6 7
                          1 3 4 5
$END

D.7.2 Sample NBO output for AMPAC wavefunctions

Since the AMPAC output differs in significant respects from the ab initio examples presented in Sections A,B, we present some excerpts from the NBO output and a brief discussion of the NBO analysis of the AM1 wavefunction for methylamine (Pople-Gordon idealized geometry). The numerical values in these exerpts (summary tables) should be adequate for checking purposes.

The summary of the Natural Population Analysis (NPA) for methylamine is shown below:


Summary of Natural Population Analysis:

                                      Natural Population
              Natural   -----------------------------------------------
   Atom #     Charge        Core      Valence    Rydberg      Total
-----------------------------------------------------------------------
     C  1   -0.13281      2.00000     4.13281    0.00000     6.13281
     N  2   -0.34739      2.00000     5.34739    0.00000     7.34739
     H  3    0.03346      0.00000     0.96654    0.00000     0.96654
     H  4    0.08488      0.00000     0.91512    0.00000     0.91512
     H  5    0.08488      0.00000     0.91512    0.00000     0.91512
     H  6    0.13849      0.00000     0.86151    0.00000     0.86151
     H  7    0.13849      0.00000     0.86151    0.00000     0.86151
=======================================================================
  * Total *  0.00000      4.00000    14.00000    0.00000    18.00000


Note that the core electrons of all heavy atoms (neglected in the semi-empirical AMPAC procedure) are incorporated into the NPA, along the lines of the treatment of effective core potentials (Section B.6.12). Note also that the numerical values of AM1 natural charges (and other quantities) differ significantly from those presented in Section A.3.2, reflecting a tendency toward somewhat reduced bond polarities in AM1 wavefunctions.

The NBO summary table is shown below:


Natural Bond Orbitals (Summary):

                                                    Principal Delocalizations
          NBO              Occupancy    Energy      (geminal,vicinal,remote)
===============================================================================
Molecular unit  1  (CH5N)
  1. BD ( 1) C 1- N 2       1.99095   -20.60408    9(g),10(g),11(g),12(g),13(g)
  2. BD ( 1) C 1- H 3       1.99184   -17.81012    8(g),10(g),11(g),9(g)
  3. BD ( 1) C 1- H 4       1.98864   -17.75195    12(v),9(g),11(g),8(g)
  4. BD ( 1) C 1- H 5       1.98864   -17.75195    13(v),9(g),10(g),8(g)
  5. BD ( 1) N 2- H 6       1.98916   -19.74256    13(g),8(g),10(v)
  6. BD ( 1) N 2- H 7       1.98916   -19.74256    12(g),8(g),11(v)
  7. LP ( 1) N 2            1.98489   -15.52775    9(v)
  8. BD*( 1) C 1- N 2       0.01048     4.75597
  9. BD*( 1) C 1- H 3       0.02306     4.29359
 10. BD*( 1) C 1- H 4       0.01070     4.57248
 11. BD*( 1) C 1- H 5       0.01070     4.57248
 12. BD*( 1) N 2- H 6       0.01090     5.27834
 13. BD*( 1) N 2- H 7       0.01090     5.27834
      -------------------------------
             Total Lewis   17.92328  ( 99.5738%)
       Valence non-Lewis    0.07672  (  0.4262%)
       Rydberg non-Lewis    0.00000  (  0.0000%)
      -------------------------------
           Total unit  1   18.00000  (100.0000%)
          Charge unit  1    0.00000


Note that in this case the orbital energies and other matrix elements of the Fock operator are printed in electron volts, the energy units of the AMPAC package. Note also that the physical pattern of delocalization effects differs significantly from that shown in Section A.3.6, the AM1 results portraying numerous strong geminal interactions that are not present in the ab initio output. Other differences between the AM1 and ab initio wavefunctions will be evident throughout the NBO output.

Finally, we include the output segment showing the NBO energetic analysis of methylamine:


NOSTAR: Delete all Rydberg/antibond NBOs
Deletion of the following orbitals from the NBO Fock matrix:
   8   9  10  11  12  13

Occupations of bond orbitals:

      Orbital                   No deletions   This deletion   Change
------------------------------------------------------------------------------
  1. BD ( 1) C 1- N 2               1.99095        2.00000    0.00905
  2. BD ( 1) C 1- H 3               1.99184        2.00000    0.00816
  3. BD ( 1) C 1- H 4               1.98864        2.00000    0.01136
  4. BD ( 1) C 1- H 5               1.98864        2.00000    0.01136
  5. BD ( 1) N 2- H 6               1.98916        2.00000    0.01084
  6. BD ( 1) N 2- H 7               1.98916        2.00000    0.01084
  7. LP ( 1) N 2                    1.98489        2.00000    0.01511
  8. BD*( 1) C 1- N 2               0.01048        0.00000   -0.01048
  9. BD*( 1) C 1- H 3               0.02306        0.00000   -0.02306
 10. BD*( 1) C 1- H 4               0.01070        0.00000   -0.01070
 11. BD*( 1) C 1- H 5               0.01070        0.00000   -0.01070
 12. BD*( 1) N 2- H 6               0.01090        0.00000   -0.01090
 13. BD*( 1) N 2- H 7               0.01090        0.00000   -0.01090

NEXT STEP:  Evaluate the energy of the new density matrix
            that has been constructed from the deleted NBO
            Fock matrix by doing one SCF cycle.

------------------------------------------------------------------------------
  Energy of deletion :        22.024
    Total SCF energy :        -5.051
                         -------------------
       Energy change :        27.075 kcal/mol,          27.075 kcal/mol
------------------------------------------------------------------------------


Note that the "energy of deletion" (22.0 kcal/mol), "total SCF energy" (-5.1 kcal/mol) and "energy change" (27.1 kcal/mol) are all given in terms of heats of formation, the standard AM1 form of expressing molecular energies.

D.7.3 NBO program installation

The NBO interfacing (driver) routines provided in this distribution were written for AMPAC, version 1.00. Section D.7.4 lists the AMPAC dependent elements of the NBO driver routines that may need slight modification for other versions of the AMPAC program.

Only one command line is added to the AMPAC source code to run the NBO analysis. A command "CALL RUNNBO" should be inserted in the AMPAC properties package (SR WRITE in module WRITE), as shown below:


      SUBROUTINE WRITE(TIME0,FUNCT)

      .
      .
      .

         X=MECI(EIGS,C,CBETA,EIGB, NORBS,NMOS,NCIS, .TRUE.)
      ENDIF
C
C     <<< BEGINNING OF NBO INSERT >>>
C
      CALL RUNNBO
C
C     <<< END OF NBO INSERT >>>
C
      IF (INDEX(KEYWRD,'MULLIK') +INDEX(KEYWRD,'GRAPH') .NE. 0) THEN
         IF (INDEX(KEYWRD,'MULLIK') .NE. 0) THEN

      .
      .
      .


The NBO analysis is performed each time SR WRITE is called. For example, the NBO analysis of the computed wavefunction will be performed for every single point calculation and at the end of geometry optimizations. The NBO output will appear immediately after the Mulliken Population Analysis in the AMPAC output file.

The NBO program installation should continue as discussed in Section A.2. D.7.4 NBO communication with AMPAC

The NBO driver routines (RUNNBO, FEAOIN, DELSCF) access the following AMPAC routines and COMMON blocks:

AMPAC routines:


    SR GMETRY(GEO,COORD)
    SR HCORE(COORD,H,W,WJ,WK,ENUCLR)
    SR FOCK2(F,PTOT,P,W,WJ,WK,NUMAT,NFIRST,NMIDLE,NLAST)
    SR FOCK1(F,PTOT,PA,PB)
    FN HELECT(N,P,H,F)

AMPAC COMMON blocks:

    INCLUDE 'SIZES'
    COMMON /ATHEAT/ ATHEAT
    COMMON /DENSTY/ P(MPACK),PA(MPACK),PB(MPACK)
    COMMON /ENUCLR/ ENUCLR
    COMMON /FOKMAT/ F(MPACK),FB(MPACK)
    COMMON /GEOKST/ NATOM,LABELS(NUMATM),NA(NUMATM),NB(NUMATM),
   +                NC(NUMATM)
    COMMON /GEOM  / GEO(3,NUMATM)
    COMMON /HMATRX/ H(MPACK)
    COMMON /KEYWRD/ KEYWRD
    COMMON /MOLKST/ NUMAT,NAT(NUMATM),NFIRST(NUMATM),NMIDLE(NUMATM),
   +                NLAST(NUMATM),NORBS,NELECS,NALPHA,NBETA,NCLOSE,
   +                NOPEN,NDUMY,FRACT
    COMMON /NATORB/ NATORB(107)
    COMMON /TITLES/ COMENT(10),TITLE(10)
    COMMON /VECTOR/ C(MORB2),EIGS(MAXORB),CBETA(MORB2),EIGB(MAXORB)
    COMMON /WMATRX/ WJ(N2ELEC),WK(N2ELEC)


INDEX

 Acceptor orbital,A21
 ACS Software,A11
 AMPAC version,A2,A7,A8,B66,C17
 Angular symmetry labels,A5,B68,C7
 Antiperiplanar interaction,A19,A23,B50
 Archive file (FILE47),A5,
        B62-71,C8,C14,C31,C36
 Arrays
      IBXM,C9,C22,C23
      JPRINT,C6
      NBOOPT,C16,C17,C18,
            C26,C30,C36,C39
 Atom-centered basis functions,A1
 Atomic charge,A14
 Atomic orbitals,A1,A5,A6,B67-68
      Contracted gaussian,A6,B69-70
      Pure (PAO),B11,B67-68,C19,C30
      Slater-type,A6
      see Atomic shell
      see Core orbitals
      see Pre-orthogonal orbitals
 Atomic shell
      Core,A7,A8,A13,A14,A16,C24
      Rydberg,A2,A8,A13,A14,A16,C25
      Valence,A8,A13,A14,A16
 Atomic units,A13,B65,C4,C13
 Attaching NBO to ESS program,
        A10-11,C36,C38-39
 AUHF method
      see Wavefunction type
 Azimuthal angle (),A20,C33

 Basis set
      see Atomic orbitals
 Benzene (C6H6),B3,B32-36
 Bond bending,A8,A20
      see Hybrid direction
 BONDO program,A7
 Bond order,B29-31
      Matrix,B11,B65,C19
 Boys LMOs,B3
 Brunck, T. K.,A7

 Canonical MOs,B6,B27-28,B71,C20
 Carpenter, J. E.,A7
 Chemical fragment,B16,B19

$CHOOSE list see Keylists Comments (!),B1,B63,C29 Comment statements,C1 COMMON blocks /NBAO/,C7 /NBATOM/,C7 /NBBAS/,C9,C22,C31,C30 /NBCRD1/,C11,C29 /NBCRD2/,C12,C29 /NBDAF/,C12,C27,C28 /NBDXYZ/,C11 /NBFLAG/,C5 /NBGEN/,C13,C30 /NBINFO/,C4 /NBIO/,C8,C18 /NBLBL/,C10,C32 /NBMOL/,C10 /NBNAO/,C10 /NBONAV/,C12 /NBOPT/,C6-7,C18,C30 /NBTHR/,C9,C18 /NBTOPO/,C11,C22 Contour plotting program,A8,B9,B69 Contracted gaussian orbitals see Atomic orbitals Copper dimer (Cu2),B56-61 $CORE list see Keylists Core orbitals,A6,A7,A8,A16, B12-13,B56-61,B66,C24,C30,C33 Core polarization,A8,B12 Core table,B12,C33

DAF see Direct access file Datalists,B63-64 $BASIS,B67-68,B71,C31,C37 $CONTRACT,B69-70,C31,C37 $COORD,B63,B65,B66,C31,C37 $DENSITY,B71 $DIPOLE,B65,B71,C37 $FOCK,B65,B71,C37 $LCAOMO,B71,C37 Matrix,B71 $OVERLAP,B65,B71,C37 d-orbitals,B53,B56,B61 Default output,A12,B10 Deletion types,B17-19

$DEL (deletions) list see Keylists Delocalization,A1,A2,A21,B3,B32,B51 Delocalization tail,A22,B23

Density matrix,A1,A5,A6,B6-7,C13 see Bond-order matrix see Spin density matrices Depletion of density matrix,C24 Diborane (B2H6),B40-43 Dictionary file,A4 Different Lewis structures for different spin see Open-shell calculation Dimension specification,C4 Dipole moment,A5,A6,A8,B5,B6-7, B24-25,B65,B71,C11,C15,C24

Direct access file (FILE48),A3,A4,A5, B9,B65,C12,C14-15,C16,C27, C28,C36-39 Directed NBO search see Keylists, $CHOOSE Directional analysis see Hybrid direction Distribution tape,A10 Donor orbital,A21,A22 Double-bond, no-bond resonance,B44-47 Driver routines,A3 see Subroutines RUNNBO, etc. Edmiston-Ruedenberg LMOs,B3 Effective core potential (ECP), A8,B56-61,B66 Electronic structure system (ESS),A3 Common blocks,A4 Connection to NBO program,A3,A4,A7, A10-11,B56,B62,C36,C38-39 Input file,A5,A11,A12 Output file,A5,A12 Scratch files,A4 see AMPAC, GAUSSIAN-8X, etc. ENABLE program,A10,C36 Energetic analysis,A3,A5,B16-19, C2,C26,C38,C39 see Perturbation theory... Excited state,A6,A8,A15,B56,C23

f-orbitals see Angular symmetry labels see Keyword CUBICF

Fenske-Hall method see MEDVL Fetch/Save routines,C15,C27

FILE48 see Direct access file

FILE47 see Archive file Flow chart,A4,C3,C16 Fock matrix,A2,A5,A6,A8,A14,A21, B6,B16-20,B26,B48-51,B65,B71, C2,C23,C26,C39 Fortran 77,A6,A10 Foster, J.P.,C22 Free format,B1,C29 Freezing a transformation,B8 Functions EQUAL,C29 IHTYP,C34 IOINQR,C32 IWPRJ,C24 NAMEAT,C34 VECLEN,C35 GAMESS version,A1,A2,A7,A10,A12,C17 Gaussian elimination,C35 GAUSSIAN-8X version,A2,A7, A10,B56,C17 Geminal interaction,A22,B18,C33 Generalized eigenvalue problem,C20

GENNBO input file see Archive file

GENNBO stand-alone program A10,B9,B62-71,C13,C36,C37,C38 Geometry,B66 Glendening, E. D.,A7 Groups of routines I (NAO/NBO/NLMO),C2,C16-25 II (energy analysis),C2,C26 III (direct access file),C2,C27-28 IV (free format input),C2,C29 V (other I/O),C2,C30-32 VI (general utility),C2,C33-35 VII (system-dependent),C2,C36 GUGA formalism,A1 GVB method see Wavefunction type Hay-Wadt ECP,B56 HONDO version,A2,A10,C17,C27 Hybrid composition,A19,B23 Hybrid direction,A8,A20,B4,C23 Hydrogen fluoride (HF),B37-39 I/O routines see Groups of routines INP routines,C30,C39 Input file,A5,B62,C14 Installation procedure,A10-11 Ionic hybrids,B37-39 Job control keywords,B2,B3 Job initialization routines,C16,C18 Job threshold keywords,B2,B4-5 Kekulée structure,B36 Keylist,A5,A11,A12,B1

Keylists $CHOOSE,B1,B2,B12,B14-15,B44-47, B62,B63,B65,C6,C22,C30 $CORE,B1,B2,B12-B13, B62,B63,B65,C3,C6-7,C30 $DEL,B1,B2,B12,B16-20, B48-51,B62,C17,C26,C30 $GENNBO,B65,B66,C30 $NBO,B1,B2-11,B21-43,B62,B63, B65,B69,C6,C17,C18,C22,C30 Keyword names (matrix output),B6-7 Keyword parameters (matrix output),B7-8 Keywords AOINFO,B2,B9,B69,B71,C6,C31 AOMO,B2,B6,B71,C6 AONAO,B2,B6,C6,C30-31 AONBO,B2,B6,C6,C31 AONHO,B2,B6,C6 AONLMO,B2,B3,B6,C6,C31 AOPNAO,B2,B6,B71,C6 AOPNBO,B2,B6,B71,C6 AOPNHO,B2,B6,B71,C6 AOPNLMO,B2,B6,B71,C6 ARCHIVE,B2,B9,B62-71,C6,C31 BEND,A8,A20,B2,B4,B5,B10,C6,C23 BNDIDX,B2,B9,B10,B21, B29-B31,C6 BOAO,B11,C6 BODM,B65,C6,C13 BOHR,B65,B66,,C13 CUBICF,B65,B68,C6 DESTAR,B18 DETAIL,B2,B9,C6 DIAO,B2,B7,B71,C6 DINAO,B2,B7,B71,C6 DINBO,B2,B7,B71,C6 DINHO,B2,B7,B71,C6 DINLMO,B2,B6,B7,B71,C6 DIPOLE,A8,B2,B3,B5,B10,B21, B24-25,B71,C6,C17,C24 DMAO,B2,B7,C6 DMNAO,B2,B7,C6 DMNBO,B2,B7,C6 DMNHO,B2,B7,C6 DMNLMO,B2,B7,C6 E2PERT,A21,B2,B4,B5,B10,B71,C6 EV,B65 FAO,B2,B7,B71,C6 FNAO,B2,B7,B71,C6 FNBO,B2,B6-8,B7,B71,C6 FNHO,B2,B7,B26,B71,C6 FNLMO,B2,B7,B71,C6 LFNPR,B2,B9,C8 Matrix output,B6-8,B26-28 MULAT,B11,C6 MULORB,B11 NAOMO,B2,B6-8,B71,C6 NAONBO,B6-8,C6 NAONHO,B6-8,C6 NAONLMO,B6-8,C6 NATOMS,B65 NBAS,B65 NBODAF,B2,B9 NBO,A16-19,B2,B3,B10,C6 NBOMO,B2,B6-8,B27-28,B71,C6 NBONLMO,B2,B6-8,C6 NBOSUM,A22-23,B2,B3,B10,C6,C23 NHOMO,B2,B6-8,B71,C6 NHONBO,B2,B6-8,C6 NHONLMO,B2,B6-8,C6 NLMO,B2,B3,B5,B10,B22-23,C6 NLMOMO,B2,B6-8,B71,C6 NOBOND,B2,B3,B21,B37-39,C6 NOGEM,B18 NOSTAR,B18,B48-49 NOVIC,B18 NPA,A13-15,B2,B3,B10,C6,C20 OPEN,B65 ORTHO,B65 PAOPNAO,B11,C6 PLOT,A8,B2,B9,B69,B71,C6 PRINT,B2,B5,B10,B71,C18,C6 PRJTHR,B11 RESONANCE,A16,B2,B3,B21, B32-36,C6,C17,C25 REUSE,B65,B66,B67,C13 RPNAO,B11,C6 SAO,B2,B7,B71,C6 SKIPBO,B2,B3,B10,C6 SPNAO,B2,B6-8,B7,B71,C6 SPNBO,B2,B7,B71,C6 SPNHO,B2,B7,B71,C6 SPNLMO,B2,B3,B7,B71,C6 3CBOND,B2,B3,B14,B21,B40-43,C6 THRESH,B11 UPPER,B65,B71,C13 ZERO,B19,B49-51

Kinks see Hybrid direction, Bond bending

Labelled COMMON blocks,A3,A6,C4-13 see COMMON blocks

Lewis orbitals see Natural bond orbitals Linear equations package,C35 Linear independence,A1,C22,C24 Logical file number (LFN),C8,C38,C39 Löwdin, P.-O.,A1 Löwdin orthogonalization,C21 Matrix multiplication,C34

Matrix output keywords, B2,B6-8,B9,B26-28,C7 Mayer-Mulliken bond-order,C19 MCSCF method see Wavefunction type MEDVL version,A10 Memory allocation, A6,A12,C16,C18,C19,C22 Methylamine (CH3NH2), A12-23,B21-31,B44-51,B63-71 Methyl radical (CH3),B52-55 Molecular units,B16,B18,B19,C10,C23 Møller-Plesset method see Wavefunction type MOPAC version,A10

Mulliken population analysis, A10,B11,C19,C38 Multiple bonds,A19,B14,B44-47,B56-61 Naaman, R.,A7 NAO formation routines,C16,C19-21

Natural atomic orbital (NAO) Formation,A1,A7,C16,C19-21 Labels,A13-14,C10 Listing,A13,C10 Summary table,A7 see Natural population analysis

Natural bond orbital (NBO) Analysis,A1-2,A16-19 Formalism,A1-A2,A7 Labels,A8,A19,B27-28,B43,C9,C10,C32 Lewis,A2,A16,A19,A21,A23,B48-51,B17 Listing,A17-19,B2 Non-Lewis,A2,A16,A19, A21,A23,B17,B18,B48-51 Summary table,A22-23,C23 3-center,A16,B40-43 see Perturbation theory... see NBO/NLMO formation routines

Natural electron configuration (NEC), A7,A15,C20

Natural hybrid orbital (NHO) Directional analysis,A20 Formation,A1-2 Labels,B26,C10 Listing,A-19 see Natural bond orbitals see Hybrid direction

Natural Lewis structure,A1-2,A16, A19,B3,B18,B48,B49 Energy,B18,B48

Natural localized molecular orbital (NLMO) Formation,A7,B3,C25 Listing,B3,B22-23 Natural minimal basis (NMB) set,A2,A14 Natural population analysis (NPA), A3,A6,A7,A13-14,B3, B10,B21,B56-57,C20 Natural Rydberg basis (NRB) set,A2,A18 NBO direct access file see Direct access file $NBO keylist see Keylists NBO energetic analysis see Energetic analysis see Perturbation theory... NBO.MAN file,A10,A11 NBO/NLMO formation routines, C16,C22-25 NBO program,Section C I/O,A5,A12,C27-32 Installation,A10-11 Organization,A3-4,C2-4 Restrictions,A6 see Electronic structure system NBO.SRC file,A10,C1,C2 NBO summary table,A22-23,C23 NLMO/NPA bond order,B30-31 Non-Lewis orbitals see Natural Bond Orbital Open-shell calculation, A1,A5,B14,B25,B52-55,B65,C5 see Wavefunction type Orbital contour plotting program, A8,B9,B69 Orthogonalization,C20 Löwdin (symmetric),C24 Occupancy-weighted (OWSO),C20,C21 Schmidt,C20 Output control keywords,B2,B9-10 Output file,A8,A12,C1

Overlap matrix,A5,A6,A8,B6,B71,C38 singularities,C25 Overlap-weighted NAO bond order,B30

Perturbation theory energy analysis, A8,A21,B3,B4,C23,C39 Phi,A20,C33

PNAO, PNBO, PNHO, PNLMO see Pre-orthogonal orbitals Polar angle (),A20,C33 Polarization coefficients,A2,A19,C25 Pople-Gordon geometry,A12,A20,B21,B32

Population analysis see Mulliken population analysis see Natural population analysis Population inversion,A14,B57

Pre-orthogonal orbitals, A1-2,A6,A8,B6,B65,B71

Print parameters,B2,B7-8, B11,B27-28,C7,C10

Program groups,C2 see Groups of routines

Program limits Atoms,A6,C4 Basis functions,A6,C4 Program precedence,C2,C3 Pseudopotential see Effective core potential Pure AOs,B11 see Atomic orbital QCPE,A7,A8 Read (R) parameter see Print parameters Read-write file,A4 Reed, A. E.,A7,B11,B31,C19 References,A7 Remote interaction,A22,C33 Resonance structures,A9,B14-15,B32-33, B38,B39,B44-47,C11,C25 Rewind input file,C39 RHF method see Wavefunction type Rives, A. B.,A7 ROHF method see Wavefunction type Schleyer, P. v.R.,B31 2nd-order perturbation theory analysis see Perturbation theory energy... Semi-documented keywords,B2,B11 Similarity transformation,C19,C26,C34

Slater-type orbitals see AO basis functions

Spin see Open-shell calculations

Spin-annihilated UHF (AUHF) method see Wavefunction type Spin density matrices,A1,B52-55,C5

Storage see Memory allocation

Subroutines,C2,C3 ANGLES,C33 ANLYZE,C23 AOUT,C31 APRINT,C31,C32 AREAD,C31 ATDIAG,C20 AUGMNT,C25 AWRITE,C31 BDFIND,C33 BLDSTR,C23 CHEM,C33 CHOOSE,C22,C23,C24 CHSDRV,C22 CHSINP,C30 CONSOL,C33 CONVIN,C33 CONVRT,C33 COPY,C33 CORE,C24 CORINP,C30 CORTBL,C33 CYCLES,C22,C25 DEBYTE,C33 DELETE,C26 DELINP,C30 DELSCF,A3,A4,A5,C2,C36,C38,C39 DEPLET,C24 DFGORB,C19,C30 DIPANL,A6,C22,C24 DIPELE,C24 DIPNUC,C24 DMNAO,C19 DMSIM,C19 FACTOR,C35 FEAOIN,A3,A4,A5,C2,C6, C14,C36,C38,C39 FEAOMO,C27 FEAOM,C27 FEBAS,C27 FECOOR,C27 FEDNAO,C27 FEDRAW,C27 FEDXYZ,C27 FEE0,C27 FEFAO,C27 FEFNBO,C27 FEINFO,C27 FENBO,C27 Subroutines (continued) FENEWD,C27 FENLMO,C27 FEPNAO,C27 FEPPAO,C27 FESNAO,C27 FESRAW,C27 FETITL,C27 FETLMO,C27 FETNAB,C27 FETNAO,C27 FETNBO,C27 FETNHO,C27 FNBOAN,C23 FNDFLD,C29 FNDMOL,C23 FNDSOL,C35 FORMT,C25 FRMHYB,C23 FRMPRJ,C25 FRMTMO,C20 GENINP,C30 GETDEL,C23 HALT,C33 HFLD,C29 HTYPE,C23 HYBCMP,C23 HYBDIR,C23 IDIGIT,C33 IFLD,C29 INTERP,C32 JACOBI,C25,C34 JOBOPT,C18,C29 LBLAO,C32 LBLNAO,C32 LBLNBO,C32 LBLNHO,C32 LIMTRN,C34 LINEQ,C33,C35 LMOANL,C24 LOADAV,C20 LOAD,C24 MATML2,C34 MATMLT,C34 MULANA,C19 NAOANL,C21 NAODRV,C2,C19 NAOSIM,C19 NAO,C19 NATHYB,C22,C23,C24 NBCLOS,C16,C28 NBINQR,C28 NBOCLA,C23 NBODEL,C26 NBODIM,C18 NBODRV,C2,C19,C22 NBOEAN,A3,A4,A6,C3,C26,C36,C39 NBOINP,C30 NBOPEN,C16,C27 NBOSET,C18,C39 NBO,A3,A4,C2,C16,C36 NBOSUM,C23 NBREAD,C28 NBWRIT,C28 NEWDM,C26 NEWRYD,C20 NEWWTS,C20 NLMO,C22,C24 NORMLZ,C34 ORDER,C34 ORTHYB,C24 OUTPUT,C32 PACK,C34 PRJEXP,C24 RANK,C34 RDCARD,C29 RDCORE,C30 RDPPNA,C30 RDTNAB,C31 RDTNAO,C31 REDBLK,C21 REDIAG,C21 REPOL,C25 RFLD,C29 RNKEIG,C26 RUNNBO,A3,A4,C36,C38,C39 RYDIAG,C20 RYDSEL,C21 SETBAS,C20 SHMDT,C20 SIMLTR,C26 SIMTRM,C19 SIMTRN,C34 SIMTRS,C34 SRTNBO,C22 STASH,C24 STRTIN,C29 SUBST,C35 SVDNAO,C27 SVE0,C27 SVFNBO,C27 SVNBO,C27 SVNEWD,C27 SVNLMO,C27 SVPNAO,C27 SVPPAO,C27 SVSNAO,C27 SVTLMO,C27 Subroutines (continued) SVTNAB,C27 SVTNAO,C27 SVTNHO,C27 SYMORT,C25 SYMUNI,C25 TRANSP,C34 UNPACK,C35 VALTBL,C35 WRARC,C31 WRBAS,C31 WRMLMO,C31 WRPPNA,C30 WRTNAB,C31 WRTNAO,C30,C31 WRTNBO,C312 XCITED,C23 Symmetric orthogonalization,C24,C25 Symmetry,B16 System-dependent driver routines,C36 TechSet,A11,A20 Theta,A20,C33 3-center bonds see Natural bond orbitals Thresholds,C9 ALLOW2,C20 ALLOW,C20 ANG,B4 ATHR,C23 DANGER,C20,C25 DIAGTH,C20,C25 DIFFER,C24,C34,C34 DONE,C34 DVAL,B5,B25 EPS,C24,C34 ETHR1,C23 ETHR2,C23 ETHR,C23 EVAL,B4 OCC,B4 PCT,B4 PRJINC,C22 PRJTHR,B11,C22 PTHR,C23 TEST2,C20 TEST,C20 THRESH,C22 THR1,C23 THR2,C23 THRESH,B11,C25 TOOSML,C24 WORTH,C20 WTTHR,C20,C21 2e-stabilization,A21

UHF method see Wavefunction type

Upper triangular matrix, B65,B71,C13,C33,C34 Vager, Z.,A7

Valency index see Bond order Versions, previous,A7,A9,B13

Vicinal interaction,A22-23,B18, B23,B25,B51,C33 Warnings,B16,B17,B36,B55

Wavefunction type AUHF,C5,C17 CI,A6,C5,C17 Complex,A6,C5 Correlated,B25 GVB,A6 MCSCF,A1,A6,C5 Møller-Plesset,A6,C17 RHF,A6,A12,B16,B56,C2 ROHF,A6,C5 SCF,A6,B16,B25,C17 Semi-empirical,A7,A8,B66 UHF,A6,B16,B20,B52-55,C2,C5 Weinhold, F.,A7,B11,C19,C22 Weinstock, R. B.,A7,B11,C19 Wiberg bond index,A16,B9,B29,C20,C22 Write (W) parameter see Print parameters

Modified: Mon Apr 12 03:06:48 1999 GMT
Page accessed 1617 times since Mon Nov 16 19:44:52 2009 GMT
