Molecular Comparisons

Drug design in most cases involves analysis of a series of active and inactive molecules in the search for their mode of action. Since the chemical identity and structure of the receptor protein is frequently unknown, the only clues as to the mechanism of drug action are provided by the drug molecules themselves. In the first step, the molecules have to be superimposed. What seems to be a straightforward task is one of the most difficult and subjective operations. Before one attempts to superimpose molecules, one must choose the criteria for aligning the molecules. This implies at least some working hypothesis on their mode of action, the very reason for aligning the molecules. This is why, alignment rules are constantly revised in the course of studying the problem until consistency between the alignment rules and the hypotheses of drug action is achieved. The major additional difficulty is the flexibility of molecules. At room temperature, molecules containing chains of single bonds exist as a mixture of a large number of conformers of very similar energies. Torsional angles around single bonds are usually very soft and span large ranges of values due to thermal motions. Moreover, interactions with other molecules (e.g., solvent, macromolecules, ions, etc.) can influence the conformation even further. For these reasons, rigid analogs bring the most information in the early stage of analysis.

  figure1130

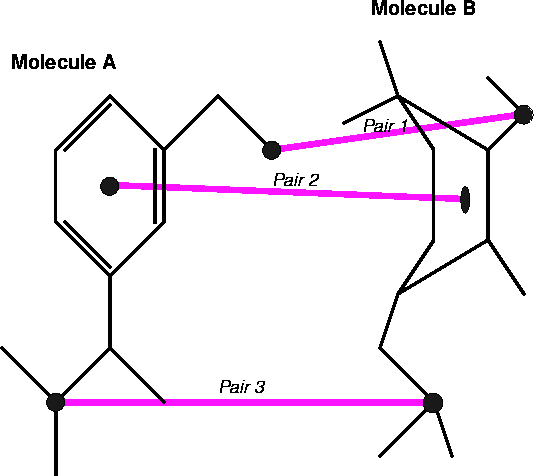

Figure 6.28: Fitting of the three atom pairs located on molecules molecules A and B. Pair 2 in this example corresponds to dummy atoms represening centroids of rings.

There are several approaches to fitting molecules. The fit usually involves superimposing chosen atoms of one molecule onto corresponding atoms of the other molecule. The atoms (or dummy atoms representing some groups) are those assumed to be the primary targets for interaction with the corresponding atoms (or groups) in the macromolecular receptor. The simplest approach is to fit two molecules, A and B, as if they were rigid entities. The fitting program will request a list of pairs of atoms to be superimposed. Usually one molecule is treated as a reference (i.e., it is kept immobile) and the second molecule is reoriented in such a way that the sum of the squared distances between atom pairs is at its minimum. Obviously, you need at least three atom pairs for the fit to be possible. Sometimes the option is provided to assign different statistical weights to atom pairs to make the fit tighter for some atoms and more relaxed for others:

  equation1134

where tex2html_wrap_inline2828 is the distance between the atoms of molecule A and B, respectively, and tex2html_wrap_inline2834 is the statistical weight of the i-th atom pair. Mathematically, the problem of the rigid fit of two molecules can be solved in a number of ways varying in their robustness. As is evident from eq. 6.60, the conceptually simplest way to fit two rigid molecules (and at the same time the least efficient one), is to connect atoms in each pair with a spring of ``optimal'' length zero and a force constant equal to the weight tex2html_wrap_inline2834 . Then use some minimization method and find the mutual orientation of the two molecules which minimizes the value of the sum in eq. 6.60. Any minimization algorithm will work, though the SIMPLEX algorithm is used most frequently due to its simplicity. Other iterative methods (e.g., Nyburg (1974)), first superimpose geometric centers of the fitted atoms in both molecules by simple translationgif The translated atomic coordinates, tex2html_wrap_inline2860 , of molecule B are then calculated from the original coordinates, tex2html_wrap_inline2864 as:

equation1157

where components of the translation vector tex2html_wrap_inline2866 are added to corresponding coordinates for all atoms of molecule B. The next step involves stepwise construction of the rotation matrix, tex2html_wrap_inline2870 , which superimposes the translated coordinates tex2html_wrap_inline2860 of fitted atoms of molecule B over fitted atoms of molecule A:

equation1170

where tex2html_wrap_inline2860 and tex2html_wrap_inline2880 are the translated and final (i.e., transformed) atomic coordinates of molecule B''. More elegant and noniterative methods are based on linear algebra and singular value decomposition of the product of matrices of cartesian coordinates of two molecules whose geometric centers were superimposed. These methods however, can sometimes invert the molecule and change its chirality. Probably the most efficient method for the rigid fit of molecules, though at the same time the least popular, is based on the concept of quaternions (see e.g., Altman, 1986). It is currently the fastest, noniterative method which will not change the chirality of the fitted molecule.

The rigid fit of molecules has only limited value for flexible molecules, since the purpose of performing the fit is to examine the possibility of two or more molecules exhibiting the same spatial arrangement of chosen groups. Even a small change in the torsional angle (which is in most cases very inexpensive in terms of the potential energy of the molecule) can dramatically improve the quality of fit. An approach in which the chosen torsional angles are allowed to vary to enhance the fit was reported by Barino (1981). It is an efficient and fast method but suffers occasionally from the fact that the torsional angles are changed solely on the criterion of satisfying the fit, and the potential energy of the modified molecule is not evaluated. Since unrealistic conformations, with bad van der Waals contacts, may sometimes be created, the results of the fit should be carefully examined (e.g., by molecular mechanics).

  Receptor-Ligand

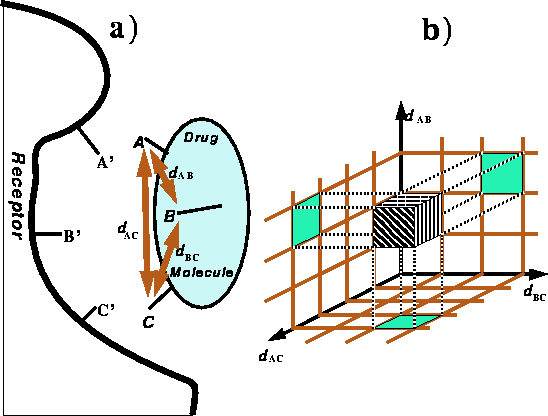

Figure 6.29: Spatial requirements for recognition of a ligand \ by the receptor. a) The orientation of pharmacophoric groups A, B, and C of the ligand has to complement the orientation of groups A', B' and C' in the receptor as a condition of recognition. b) A brick in a distance map corresponding to a range of distances in the drug molecule.

Molecular fit with allowance for adjustment of torsional angles is the core of an ``active analog approach'' in which bad van der Waals contacts are examined (Marshall et al., 1979). For a more formal description of topological and algorithmic issues involved in this approach the reader is refered to Motoc et al. (1986). The method is aimed at cases in which the chemical identity and geometry of the receptor is unknown, i.e., the most common situation in practical drug design. It is based on the concept of the pharmacophore, i.e., the three dimensional arrangement of functional groups essential for recognition and/or activation. The concept of the pharmacophore is illustrated in Fig. 6.29a for the simplest case of three pharmacophoric groups.

In this approach, it is assumed that a series of drug molecules (or enzymatic substrates), acting on the same receptor by the same mode of action should present their pharmacophoric groups in a similar three dimensional arrangement for the recognition to take place. The initial step of applying this approach is to identify possible pharmacophoric groups. The next logical step is to check if there is a three dimensional arrangement of these groups common to all active molecules in the series. The three dimensional arrangement of the groups is specified here as a set of distances between the groups. While the first step is usually based on chemical intuition and indirect information about the biological and chemical nature of the receptor, the next step is purely computational and requires a systematic conformational search to be performed on all molecules in the series.

The systematic conformational search procedure involves a stepwise change in all designated torsional angles in the molecule by a small increment. The torsional angles allowed to vary correspond to rotatable bonds, i.e., single bonds with low torsional energy barriers (see Fig. 6.21). This systematic search is sometimes called a rigid geometry search in order to emphasize the fact that only torsion angles are allowed to vary, while bond lengths and valence angles are kept fixed at their original values. In this method only those conformations are recorded which do not result in bad van der Waals contacts between non-bonded atoms. Another version of this method called systematic energy search also exists. In the energy search variant, the rigid search of torsional angles is performed and only those conformations whose potential energies are within the chosen energy threshold from the initial conformation are recorded. In another variant of energy search, the zero energy corresponds to the latest lowest energy found during the search. Needless to say, the energy search is much more computationally expensive than the bump checking method since computing all non-bonded and torsional terms in potential energy requires many more operations than checking interatomic distances affected by torsional angles around rotatable bonds.

Formally, the bonds designated for torsional scanning in the systematic search procedure cannot be part of a ring, or in topological language, the graph formed from the designated rotational bonds must represent a tree. Changing the torsional angle for a bond which is a member of a ring will invariably lead to changing bond lengths and bond angles. For this purpose, the existing search programs carefully check the topology of the molecule and the relation of rotational bonds. However, there is a method which allows searching for conformations of rings by formally opening a ring and inserting a distance constraint equal to the length of the removed bond. In practice, the distance constraint for the ring search has some tolerance range (e.g. 0.1 Å) since otherwise it is unlikely that the constraint would be satisfied for any but original values of the torsional angles.

To ensure that the whole torsional space available to the molecule is adequatly sampled, the increment for changing torsional angles should not be too large, and a value of 5 tex2html_wrap_inline1876 is considered an upper limit for meaningful computations. Using larger increments brings the danger of skipping over valid conformations which may exist for intermediate values of torsional angles. This danger cannot be avoided even for very fine tex2html_wrap_inline2886 increments, since some compact, yet energetically preferred conformations which are found by explicit geometry optimization of all degrees of freedom, are realized by small changes in valence angles and bond lengths allowing non-bonded atoms to avoid close van der Waals contacts. Moreover, molecules (especially the larger ones) have a natural tendency to form compact conformations since they result in the largest overall value of London dispersion forces (see Fig. 6.22). To remedy this difficulty in a systematic search, the van der Waals radii of atoms are frequently reduced by 10% to 25% to include conformations containing closer contacts between atoms, which would have been relaxed by small changes in bond lengths and valence angles if those were allowed. Even for a few rotatable bonds the conformational search is a tremendous computational effort which grows exponentially with the number of bonds and fineness of the sampling increment. The number of generated conformations, M, is given by the following expression for the case when the sampling increment tex2html_wrap_inline2886 is equal for all n torsional angles:

equation1194

For example, for 5 torsional angles and tex2html_wrap_inline2894 the number of generated conformations is tex2html_wrap_inline2896 . For each conformation all pairwise distances between non-bonded atoms are checked against the sum of van der Waals radii of the two atoms and the conformation is accepted if none of the distances is smaller than this value. The allowed conformations usually form families, i.e., they come in groups representing contiguous ranges of torsional angles. On an angle mapgif the family would appear as a contiguous ``cloud'' of points. In general, the family can be perceived as conformations belonging to the same syncline around the energy minimum on the potential energy function. Starting the full geometry optimization with any conformation belonging to a family should in principle lead to the same minimum (i.e., optimized structure).

There are efficient algorithms rooted in distance geometry which can substantially decrease the number of generated conformations by a priori solving the appropriate trigonometric inequalities and rejecting ranges of torsional angles which would lead to unacceptable conformations. However, even with the most efficient algorithms the computational effort is still very substantial for large molecules with many flexible bonds. Dramatic improvements can be achieved however, by employing distance maps within the ``active analog approach'' as described below.

The set of all valid conformations generated by a systematic search procedure for a larger molecule has a limited value. What can you do with a few billion conformations? The ``active analog approach'' provides a tool for effective analysis of this plethora of conformations. To start, we need a ``pharmacophore hypothesis'', i.e., the pharmacophoric groups in each molecule have to be designated. These groups are chosen as candidates for interaction with groups on the receptor. According to the ``active analog approach'', there should be at least one three dimensional arrangement of these groups common to all molecules in the series, otherwise the assumed mechanism of recognition would not be valid. This arrangement is represented as a set of pairwise distances between these groups. The conformational search is conducted for molecule 1 in the series, and for each valid conformation, the distances between all specified pharmacophoric groups are saved together with the set of torsional angles for this conformation. In the case of 3 groups there are 3 distances (i.e., a triangle) which specify the mutual orientation of these groups. For 4 groups, there are 6 distances needed to specify three dimensional orientation of groups. In general, 3M-6 distances are needed to uniquely specify mutual three dimensional orientation of M groupsgif. Now, molecule 2 in the series is run. Within the framework of the ``active analog approach'' only those ranges of torsional angles need be checked which have a chance of producing distances which resulted from the search for molecule 1. There are methods allowing to check in advance which ranges of torsional angles can produce a given set of distances. There is no need to explore distances different from the ones found for molecule 1 since only distances common to all molecules can satisfy the pharmacophore hypothesis. Moreover, the distances found for molecule 1 which do not correspond to valid conformations in molecule 2 can be safely discarded for the same reason. After running molecule 1, the distance map contained distances for all valid conformations of molecule 1. The map after running two molecules contains only those distances which are shared among the two molecules. Now molecule 3 is run. Only those conformations are checked which have a chance of producing distances left in the distance map after running the first two molecules. At each stage, a smaller number of conformations need to be generated and checked since the distance map is constantly shrinking in size. It is only logical to start from the most rigid molecules in the series (i.e., molecules with the least number of rotatable bonds) or molecules which are crowded (i.e., which have a very limited number of valid conformations) so that the distance map will be sparse from the very beginning.

In actual calculations, the distances are represented as a grid of values, i.e., a distance map (see Fig. 6.29b). For the case of three pharmacophoric groups the distance map can be represented as a three dimensional parllelepiped divided into bricks. For more than three 3 pharmacophoric groups, the map has to be built in a space of more than 3 dimensions and cannot be shown graphically on the computer screen in its entirety. Only projections containing distance maps of up to three distances can be displayed. Currently used algorithms allow more than ten distances to be combined in a distance map. The edges of the parallepiped circumscribing the distance map correspond to the allowed ranges for the distances between pharmacophoric groups, i.e., start at some minimum distance, tex2html_wrap_inline2902 , and end at some maximum distance, tex2html_wrap_inline2904 . For real atoms, the distance tex2html_wrap_inline2902 can be set as the sum of van der Waals radii, but frequently, some larger value is chosen which reflects our hypothesis. In this case, the value of tex2html_wrap_inline2902 represents the closest distance between pharmacophoric groups which will still allow for their interaction with the receptor by the assumed mechanism. Similarly, distance tex2html_wrap_inline2904 can be set either to the distance between the two groups in a fully extended conformation or may be influenced by our hypothesis about the geometry of the receptor. Each edge of the parallelepiped is now divided into a number of sections to form a grid. The number and size of these sections need not be the same for each distance studied. The grid is simply a series of subranges for a given distance, i.e.: tex2html_wrap_inline2912 , tex2html_wrap_inline2914 , ... tex2html_wrap_inline2916 . By dividing edges of the parallelepiped circumscribing the distance map we effectively divide the map into a series of elementary bricks. The number of subsections should be carefully chosen. Choosing this value too large will result in the loss of information. Making it too small will produce artifacts described below. The size of tex2html_wrap_inline2918 depends upon the increment tex2html_wrap_inline2886 used to change the torsional angle affecting the given distance. tex2html_wrap_inline2918 should be small enough so that changing the torsional angle by tex2html_wrap_inline2886 will usually ``move'' the distance to the next brick; but not too small, i.e., augmenting the torsional angle by a single increment tex2html_wrap_inline2886 should not move the distance to the brick two sections away. It is important to see that contiguous regions in a distance map correspond to contiguous ranges of torsional angles for at least two reasons. During visual inspection of the map, artificially disconnected regions introduced by choosing a tex2html_wrap_inline2918 increment too small would imply that there are distinct families of conformations which result in different sets of distances, i.e., possibly several different potential energy minima corresponding to different arrangements of groups. Secondly, a distance map with artificially introduced discontinuities may result in serious errors when it is used as a constraint in a conformational search performed for some other molecule. The discontinuities are perceived by the software as coming from ``uninteresting conformations'' (i.e., conformations which do not result in a valid set of distances) and in effect, the ranges of torsional angles corresponding to these discontinuities will not be sampled. Note that sampling intervals for different molecules (or even different runs for the same molecule) need not be the same and you need to create a distance map in such a way that it can be used as a constraint with any tex2html_wrap_inline2886 increment in future runs. In this case some of the most interesting conformations might be skipped due to this artifact. The best value of tex2html_wrap_inline2918 depends upon the molecular topology and geometry between groups whose distance is recorded and for the general case it would be a compilcated mathematical expression. The easiest way to find this value is to run a trial search for each rotatable bond separately with the van der Waals bumps checking switched off (e.g., by setting all van der Waals radii to zero) and to find the resulting distribution of bricks in a distance map as a function of tex2html_wrap_inline2918 .

The purpose of creating a grid is to convert the set of distances into a brick number which is much easier to operate on and compare. Note, that due to small differences between bond lengths and valence angles, there is practically no chance that any two distances between corresponding groups in different molecules will be exactly equal to each another. They may be very close, but most likely never identical. On the other hand, we are not seeking identical distances but similar distances. Identifying a set of distances with a particular brick it an easy and efficient way to classify two sets of distances as either equivalent or different. The assignment of a brick in a distance map to a set of distances is shown in Fig. 6.29b.

The search for a common set of distances can be speeded even further if we are not interested in all conformations which realize a given set of distances. When a distance map is used as a constraint, each nonempty brick from the map is translated into several sets of torsional angles. Depending on the topology of the molecule, the size of the brick in the distance map, and the increment used to scan the angles, the single brick may correspond to many different conformations of the molecule. Only some of them will be valid, i.e., do not result in bad van der Waals ``bumps''. In this method we may abondon exploration of the next set of torsional angles for a current brick after the first valid conformation was found. In the case of the first molecule in the series, we can prune the search at the first valid conformation for a given brick, and move to check if there are valid conformations corresponding to the next empty brick in the distance map. After running the search in this way for all the molecules in the series we can rerun the search using a final distance map as a constraint, but this time collect all valid conformations for future analysis.

There are basically three possible results from running the systematic search within the active analog approach:

The systematic search is a powerful approach for studying relations between molecules. Since the search explores all possible conformations, it is in principle capable of finding all minima on the conformational energy surface. In most cases, the conformations resulting from a systematic search are used as a starting point for further processing with molecular mechanics, molecular dynamics or quantum approaches to relax the possible strain brought by the rigid geometry regime of the search. The added advantage of the systematic search in its van der Waals bumps checking version, is the small number of actual parameters needed for the run (only van der Waals radii are needed) as compared with molecular mechanics or dynamics which require many constants in the potential energy function. You should not however oversee the limitations of the method related to its computational intractability for larger molecules and the rigid geometry approach. Due to computational expense, the actual sampling increments are usually too large to claim that all possible conformations were explored. The rigid geometry approach prevents the method from finding conformations which could only be realized by changes in bond lengths and valence angles.

The systematic search is not the only method of exploring conformational space of the molecule, however it is the only method of doing it systematically, i.e., checking, in principle, all possible conformations. There are other approaches which will yield either exactly one, or more (but not necessarily all) conformations satisfying some requirements. The distance geometry method (see e.g., Crippen and Havel, 1988; and Havel et al., 1983) will yield any number of conformations which satisfy a set of distance constraints. The distance constraints can be specified either as discrete values (e.g., bond lengths, 1-3 atom distances) or ranges. The ranges are usually given for atoms separated by more than 2 bonds (i.e., non-bonded atoms) though discrete values can also be used for these atoms if we are interested in a particular arrangement of groups or if we want to keep them fixed (as in ring systems or double and triple bonds). For atoms separated by more than 3 bonds, the lower bound of a distance range is usually taken as the sum of their respective van der Waals radii. The upper bounds should be set to the distance of the fully extended conformation for sampling efficiency. The distance constraints are usually given as an tex2html_wrap_inline2938 matrix whose one triangle consists of the upper bounds for distances and the other for lower bounds, while the diagonal is filled with zeros. Frequently hydrogen atoms are omitted to speed up the search for valid conformations. For an example of a matrix of distance constraints refer to Fig. 6.30.




     1     2     3     4     5     6

1   0.0 | 1.5   2.5   3.8   2.5   1.5              C1
    ____|_____                                    /  \
2   1.5 | 0.0 | 1.5   2.5   3.8   2.5            /    \
        |_____|_____                            /      \
3   2.5   1.5 | 0.0 | 1.5   2.5   3.8         C2        C6
              |_____|_____                     |        |
4   2.6   2.5   1.5 | 0.0 | 1.5   2.5          |        |
                    |_____|_____               |        |
5   2.5   2.6   2.5   1.5 | 0.0 | 1.5         C3        C5
                          |_____|_____          \      /
6   1.5   2.5   2.6   2.5   1.5 | 0.0            \    /
                                |                 \  /
                                                   C4
Figure 6.30: An example of distance constraints for distance geometry for carbon skeleton for cyclohexane molecule. The upper triangle and lower triangles contain upper and lower bounds on distances, respectively.

By setting the upper and lower bound for a distance equal to each other we efectively freeze this distance. Note however, that the matrix in Fig. 6.30 contains bounds for tex2html_wrap_inline2940 distances. For molecules larger than 4 atoms tex2html_wrap_inline2942 , that is, there are more distances than internal coordinates. In effect, the system is overdetermined if all of the distances were fixed. In such a case the distance geometry would not find an acceptable conformation if the distances were not consistent with each other. Using ranges for some distances instead of exact values produces an infinite number of possible conformations, unless some distancess violate the triangle inequality: tex2html_wrap_inline2944 . For this reason the distance geometry approach is not a systematic approach since it cannot produce all possible distances (there is an infinite number of them) and only provides us with a sample of conformations. The conformations are in principle created at random but they satisfy the distance constraints. The program runs until a requested number of conformations is generated. If none of the conformations obtained is of interest you may run program again and obtain an additional sample of conformations. The major strength of the distance geometry approach is that it will always provide a solution if there is one (i.e., when distances are not conflicting), contrary to the systematic search which might fail to detect a valid conformation if the sampling interval tex2html_wrap_inline2886 is too large. On the other hand, if there are many different conformations which satisfy the set of ``distance rules'' you might never get the most interesting conformations, e.g., the ones which would lead to the global minimum of potential energy if submitted to geometry optimization. The speed of the method and its applicability to macromolecules makes it very attractive, especially when one can provide experimental distance constraints. The popular application of distance geometry is to acquire conformations which satisfy user supplied distance constraints, e.g., NOE distance constraints, disulfide bridge constraints, information from low resolution X-ray analysis of proteins, etc. It is also used for docking ligands into receptors and exploration of unknown pharmacophores. Distance geometry can be also used to superimpose molecules. In this case the lower bounds of intermolecular distances are set to zero (so that the atoms of different molecules do not ``see'' each another) and the upper bounds are set to a large number except for the atoms to be superimposed. Distance geometry is currently the only method which would produce, with certainty, a conformation of a macromolecule which satisfies all externally supplied distance constraints. It can actually ``fold'' the primary sequence of amino acids (which is built from residues as a fully extended polypeptide chain) into a pattern which satisfies the constraints imposed. Unfortunately, in most cases we do not have all of the constraints which would uniquely determine the tertiary structure, and resulting conformations are only samples of the infinite number of possible conformations. On the other hand, molecular mechanics used in its original form usually fails when applied to folding problems for large molecules since it cannot ``cut through'' the knotted polypeptide chains due to repulsive van der Waals interactions. The other important use of the distance geometry approach is to search for a common arrangement of pharmacophoric groups in a way similar to the active analog approach described above. The distance geometry approach is still under active development and it may one day evolve into a popular an powerful method of rational drug design.

The simple mathematical form of the empirical potential energy function invites augmenting the ``real'' energy terms for bonded and non-bonded interactions with the artificial terms which can guide molecular mechanics optimization or molecular dynamics trajectories towards some specific conformation. These artifical terms are called constraints or restraints, and they may have many uses. The simplest application of constraints in molecular mechanics is to enforce a value of some geometric parameter (like interatomic distance or angle) on the final structure. The constraint, tex2html_wrap_inline2948 , may be a simple harmonic term:

  equation1234

where tex2html_wrap_inline2950 is the force constant whose value represents the strength with which we want to enforce the constraint, tex2html_wrap_inline2952 denotes the actual value of geometrical parameter being constrained or enforced and tex2html_wrap_inline2954 is the target value of the parameter. For practical reasons, two types of constraints can be distinguished even though their mathematical form may be identical:

When the potential energy function with constraining terms is submitted to minimization, the compromise between constraints and ``real'' potential energy terms is found. If enforcing the constraint will only require changing ``soft'' geometrical parameters (e.g., if the torsional angle change can satisfy the constraint) the energy, and also bond lengths and valence angles, resulting from constrained minimization will be close to the ones from unconstrained minimization. However, in some cases adding constraints might result in an unrealistically distorted molecule. The easiest way to check this is to submit the geometry resulting from the constrained run to geometry optimization but without constraints. If the difference between two energies is small (e.g., less than 5 kcal/mol) we can asume that the constraint can be satisfied. A large energy difference suggests that the constraint introduces a substantial strain. In this case we should carefully examine the starting geometry to asses if there is in fact any chemically meaningful way in which the constraint can be satisfied. If the molecule can exists in several stable conformations separated by high energy barriers (e.g., cis/trans along the double bond), the starting conformation should be the one which has a chance to satisfy the constraint.

The mathematical form of constraints introduced into the potential energy function depends upon the problem. The simple harmonic constrains given by eq. 6.64 are the most popular but not always best. For example, the NOE constraints derived from two-dimensional NMR represent frequently an averaged distance between related atoms (e.g. hydrogens of freely rotating methyl group). Moreover, the magnitude of the Nuclear Overhauser Effect is proportional to the inverse of the sixth power of the distance between atoms. That is why, the NOE will yield much more accurate results for smaller distances and only rough estimates for larger ones. For this reason, the appropriate constraint should penalize the energy more on the small distance side and less for the larger distances. Clearly, a simple parabola centered around the NOE distance is not appropriate here, and some asymmetrical function is needed.

Some constraints are also given as ranges, e.g., of atom distances. The simple approach, which would add the penalty to energy for distances outside the given range and not add it within a range, is inappropriate since it produces a discontinuity in energy function at the range limits. The energy function has to be continuous function of coordinates if the derivative based minimization techniques are used. Sometimes a trick is used in which this rectangular shape function is still used, but the derivatives of the constraining term are not calculated. This will affect, however, more complex (and more efficient) minimization algorithms and can even cause their divergence. The constraints are therefore frequently constructed by pasting together a constant function with a polynomial which in the vicinity of a range limit smoothly rises the energy from zero to some positive constant.

The constraints can also be used in molecular mechanics to superimpose molecules. There are basically two posibilities. The simpler of the two is when one of the molecules (say A) is chosen as a template (sometimes called a reference molecule) and the other (say B) is optimized with the constraint that the selected atoms are forced to occupy the positions of the corresponding atoms of the template. In this case simple harmonic constraints are used:

  equation1250

where tex2html_wrap_inline2970 is the force constant whose value represents the weight which we assign to a quality of the fit for i-th pair, and tex2html_wrap_inline2828 is the distance between corresponding atoms of molecule A and B. Of course, the case of a series of molecules to be fitted to the same reference is simply a series of pairwise fits of the same reference molecule with subsequent molecules in the series.

  Receptor-Ligand

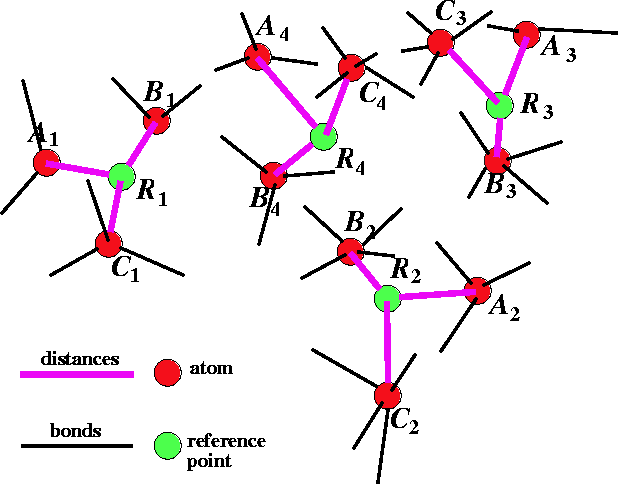

Figure 6.31: Multiple flexible fit of molecules for 3 molecules A, B and C with 4 sets of atoms to be superimposed.

The other possible approach is to look for the best fit of atoms in the series of molecules. In this case there is no reference molecule. One such approach was developed by Labanowski et al. (1986). The outline of this approach is given in Fig. 6.31. In this case, the atoms are fitted not to each another but to geometrical targets called reference points. The reference point is basically an average of atom positions belonging to the set of atoms to be superimposed. In the example in Fig. 6.31 there are three molecules: A, B, and C and four sets of superimposed atoms: 1, 2, 3, and 4. The reference points are denoted here by R. For each molecule in the series, the geometry is optimized with a potential energy function augmented with the following artificial terms shown here for a molecule A:

  equation1267

where tex2html_wrap_inline3004 is the distance between atom of the molecule A belonging to the i-th set of superimposed atoms, and a reference point tex2html_wrap_inline3010 for this set. The tex2html_wrap_inline3012 is the statistical weight of the molecule A and tex2html_wrap_inline3016 is the force constant for this atom of molecule A. The value of this term is always positive except when the atom and the reference point are exactly on top of each another. The magnitude of its contribution to energy depends upon the value for the fitting force constant, tex2html_wrap_inline3016 , which is set individually for each atom of the molecule, and the value of the statistical weight of the molecule, tex2html_wrap_inline3012 . Despite the fact that tex2html_wrap_inline3016 and tex2html_wrap_inline3012 are purely mathematical concepts, they can be used to incorporate existing insight into the minimization process. The statistical weight, tex2html_wrap_inline3012 , may be chosen to reflect the activity of the given molecule with the assumption that more active molecules contain more precise information about the ``shape'' of the receptor. However, when the activity is controlled mainly by factors other than orientation of pharmacophoric groups (e.g., when the solvent/solute interactions control the activity within a series of drug molecules), the weights should be left equal for all the molecules (the value 1.0 is commonly used in this situation). The choice of statistical weight for the molecule should not be influenced by the apparent flexibility or rigidity of the molecule, since this information is incorporated in the potential energy function of the molecule. The force constants for individual atoms can also be used to reflect the amount of information. The values around 20 kcal tex2html_wrap_inline3030 mol tex2html_wrap_inline3032 Å tex2html_wrap_inline3034 are used but the force constants should be individualized to reflect the chemical nature of pharmacophoric group. Again, the force constants are not meant to reflect how hard it is to change the atom position with respect to the other atoms of the molecule, since this information is provided directly by the potential energy function. These values should rather reflect the assumed mode of interaction of a given atom/group in the molecule with its counterpart in the receptor and its overal contribution to the total binding energy. For example, hydrogen binding requires a precise orientation of groups but on the other hand contributes only roughly about 5 kcal/mol to the binding energy (though in solvent free space the contribution may be much higher). The electrostatic interactions of two ions (e.g. salt bridges) can contribute substantially to binding energy if the maginitude of net atomic charges involved is large. On the other hand this interaction does not depend steeply on the relative orientation of the charges involved. The magnitude of dipole/dipole interactions is large for closely spaced dipoles and also depends strongly on orientation. You can mimic the orientation of a dipole by fitting both atoms belonging to the bond providing the dipole and using a larger (e.g. twice as large) fitting force constants for these atoms. You might use a similar technique for hydrogen bonds to incorporate orientational information but in this case you might want to reduce the force constants slightly to reflect the fact that the two atoms are fitted per each hydrogen bond. You can also use constructs of dummy atoms and fit them together if the suspected mode of interaction between molecule and receptor is not of a simple category.

Before this approach can be used, the initial reference point positions must be found. This is done by performing a rigid fit of all molecules to the first molecule in the series and finding the average position of atoms in each set of superimposed atoms (including atoms of the first molecule). For this reason, the most rigid molecule should be chosen as the first in the series. The energy of each molecule is then minimized and reference point positions incremented by the portion of the new atom coordinates. Assuming that a molecule M has just been optimized, the reference points are updated according to the following formula:

  eqnarray1286

where tex2html_wrap_inline3038 and tex2html_wrap_inline3040 is the previous and updated X- coordinate of the i-th reference point, tex2html_wrap_inline3046 is the scaling factor, d is the damping factor and tex2html_wrap_inline3050 is the new X coordinate of the atom tex2html_wrap_inline3052 which has just been calculated. The damping factor, tex2html_wrap_inline3054 , is usually 1.0 but can be made smaller if the starting coordinates of atoms being superimposed are very different from molecule to molecule and the reference point positions exhibit the oscillatory behaviour. The scaling factor tex2html_wrap_inline3056 for the i-th atom of some molecule A of the series represents the weight with which the coordinates of this atom influence the position of a reference point and is given by the following expression:

  equation1317

where the sum runs over optimized molecules in the first cycle of optimization, and over all molecules in the second and all subsequent cycles. To guard against drifting of the whole molecular assemblage, one of the reference points is kept fixed, namely the one for which the sum tex2html_wrap_inline3062 has the maximum value of all reference points. The optimization is stopped when the energy of optimized molecules is no longer changing compared to their energy in the previous cycle.

In conclusion, there are many approaches to superimposing molecules. Though we would all prefer the single approach which works in all situations, it should now be obvious to the reader that such an ideal method will probably never exist. Each superimposing problem is different and hence, for each problem, the best method should be used. The above methods can also be used in the case when the molecular structure of the receptor is known. In this case we can introduce a degree of flexibility also into the receptor site, probing the various ways in which the ligand can be ``docked'' into the receptor. It is also evident from the above discussion that the fully automatic method of mapping receptor sites is still behind the horizon. The successful computer-aided drug design will for a forseeable future require an experienced and insightful chemist and a lot of auxiliary experimental information.
